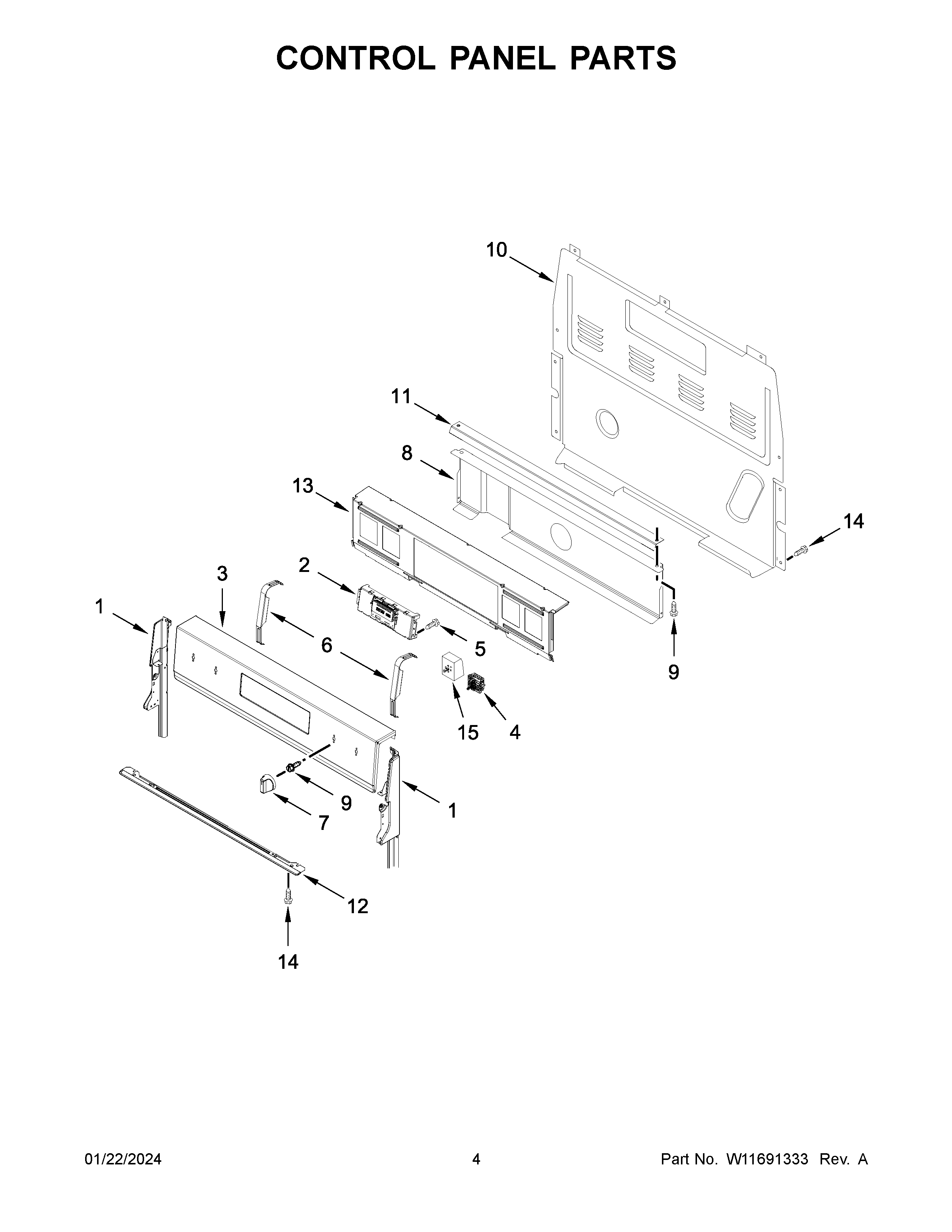

WFE550S0LV3 03 – CONTROL PANEL PARTS

WFE550S0LV3 03 – CONTROL PANEL PARTS

Written by

in

WFE550S0LV3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2W11548749-includeCORE Whirlpool W11548749 Refrigerator Electronic Control Board
3AW11184721 Whirlpool Control Panel
3W11184720 Whirlpool Dishwasher Control Panel
4SWITCH-INF
5SCREW
6BRACKET, CONTROL
7AW11158187 Whirlpool Knob
7W11158168 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11443964 Whirlpool Support Bracket
13W10901802 Whirlpool Mounting Bracket
14WP3196557 Whirlpool Screw
15WP3149404 Whirlpool Oven Surface Element Switch
