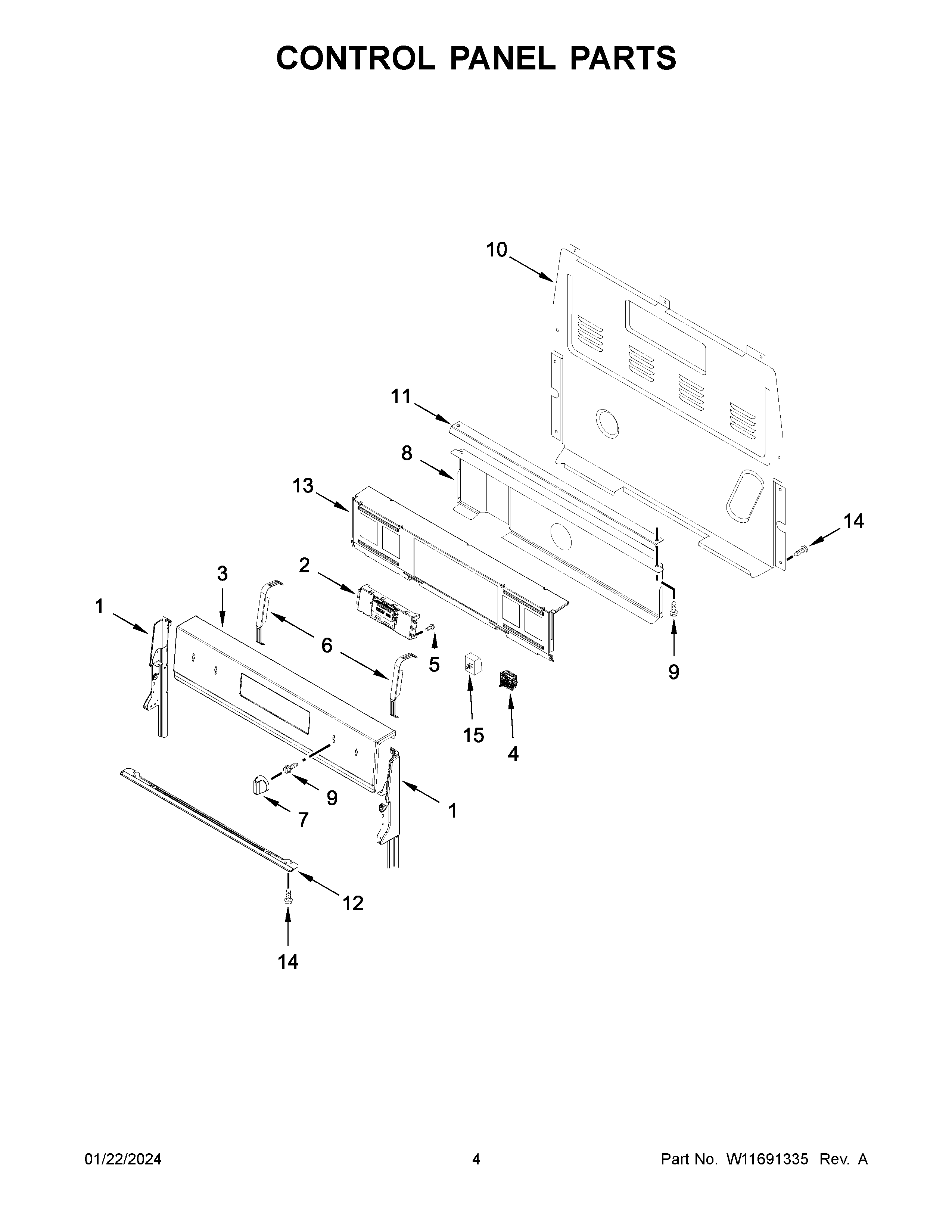

WFE550S0LW3 03 – CONTROL PANEL PARTS

WFE550S0LW3 03 – CONTROL PANEL PARTS

Written by

in

WFE550S0LW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1AW11259700 Whirlpool Panel End Cap
2W11548749-includeCORE Whirlpool W11548749 Refrigerator Electronic Control Board
3W11182818 Whirlpool Control Panel
4SWITCH-INF
5SCREW
6BRACKET, CONTROL
7W11158173 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12BRACKET, EYE BROW (WHITE)
13W10901802 Whirlpool Mounting Bracket
14WP3196557 Whirlpool Screw
15WP3149404 Whirlpool Oven Surface Element Switch
