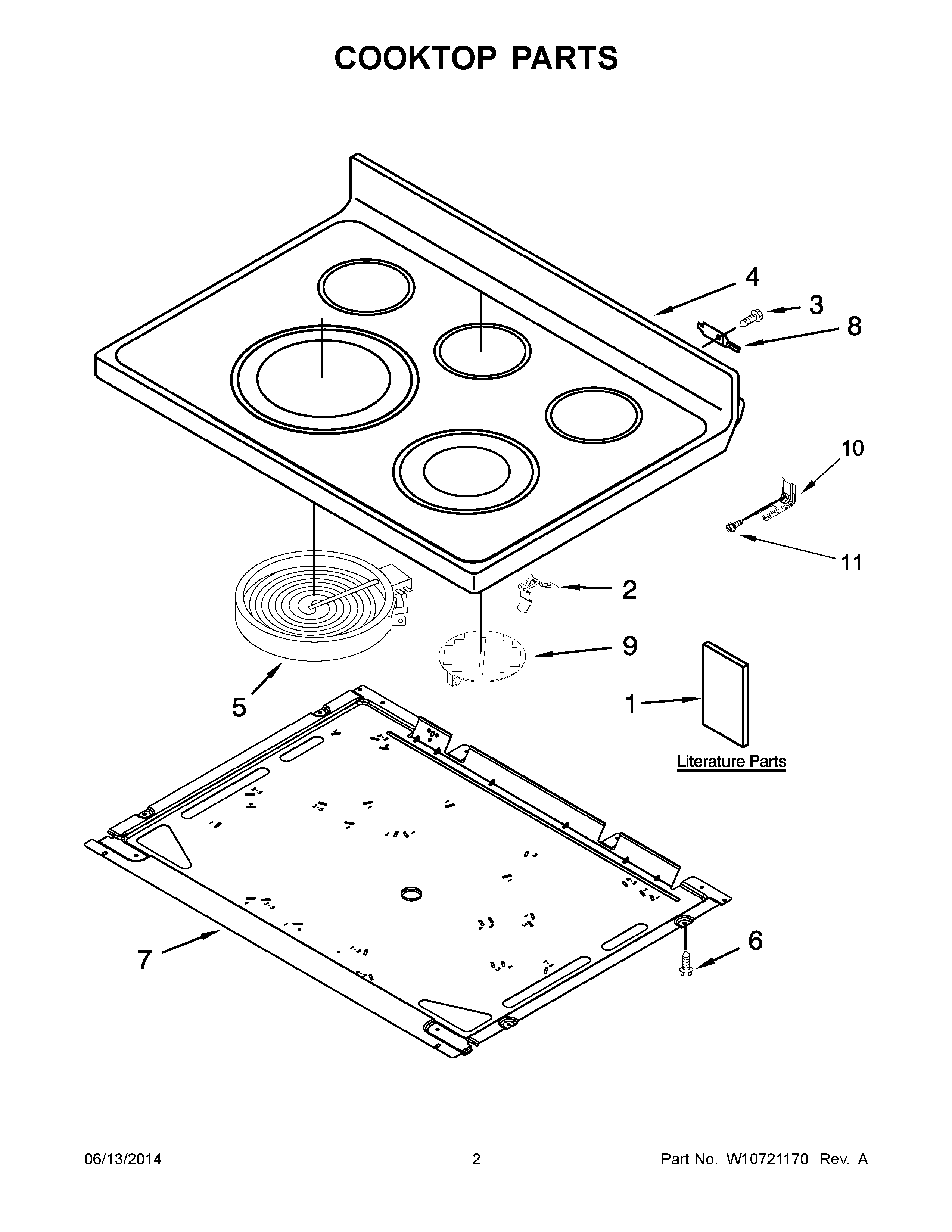

WFE710H0AE1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10629305 Whirlpool Wire Harness
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	W11134550 Whirlpool Wire Harness
NI	W10349716 Whirlpool Wire Harness
NI	W11244557 Whirlpool Screw
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNERS MANUAL
1	TECH SHEET (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
1	QUICK START GUIDE
1	SAFER COOKING TIPS (ENGLISH
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10472039 Whirlpool Cooktop
4	W10472038 Whirlpool Oven Cooktop
5	ELMNT-SURF
5	WPW10342780 Whirlpool Surface Element
5	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	WP3195060 Whirlpool Cooktop Pin
9	W11047668 Whirlpool Surface Element
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
