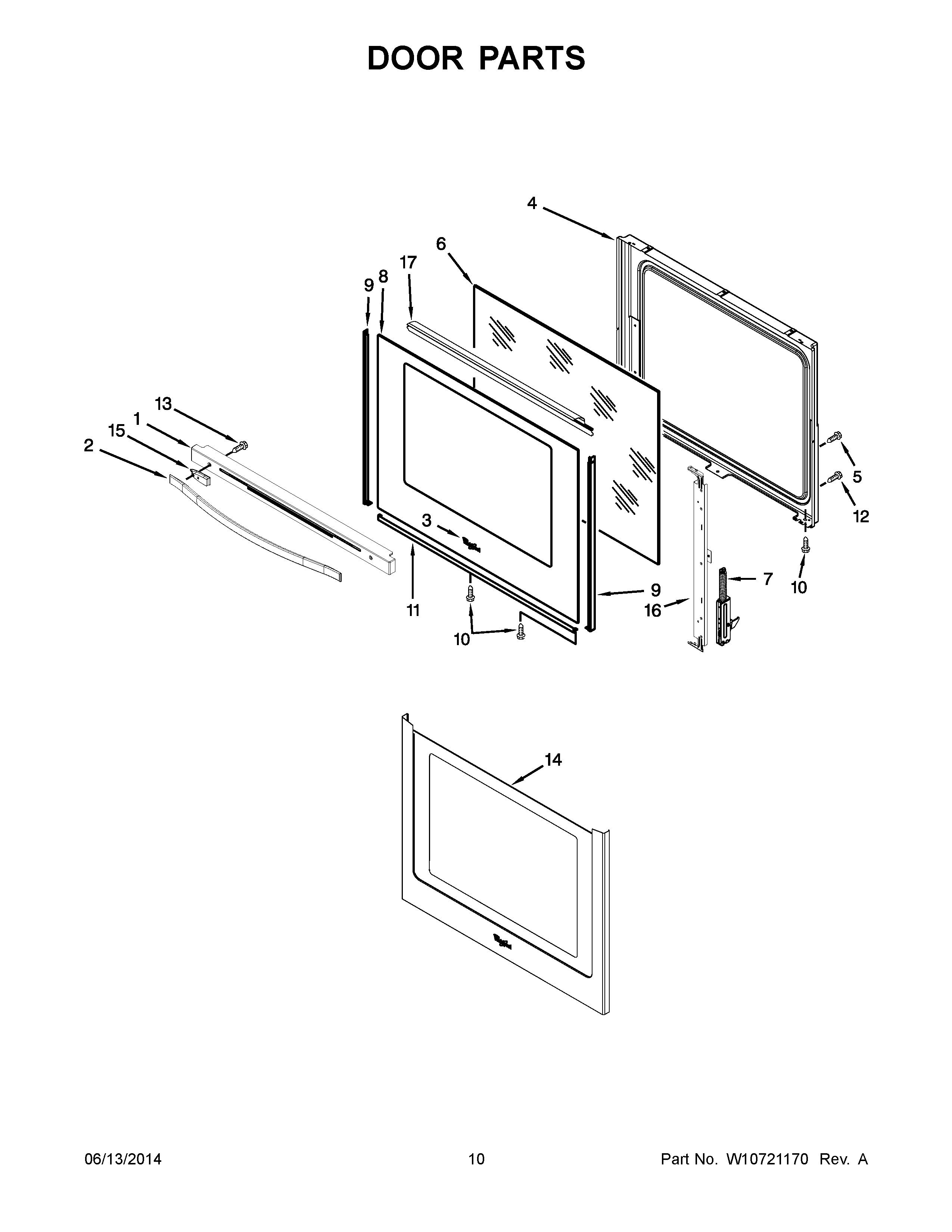

WFE710H0AE1 06 – DOOR PARTS

Products

Position	Product
1	WPW10335331 Whirlpool Trim Vent
1	W10294855 Whirlpool Vent Trim
1	W10335333 Whirlpool Vent Trim
2	WPW10618239 Whirlpool Door Handle
3	W11178521 Whirlpool Dishwasher Nameplate
4	WPW10297318 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WPW10300487 Whirlpool Door Glass
7	WPW10440013 Whirlpool Door Hinge
8	WPW10289141 Whirlpool Door Glass
8	WPW10289142 Whirlpool Glass Door
9	W10334004 Whirlpool Door Trim
9	W10334003 Whirlpool Door Trim
10	WP3196175 Whirlpool Screw
11	WPW10333990 Whirlpool Glass Bracket
11	W10334031 Whirlpool Glass Bracket
12	W10777162 Whirlpool Screw
13	WPW10317886 Whirlpool Screw
14	WPW10289144 Whirlpool Door Glass
15	WPW10429492 Whirlpool Spacer
15	WPW10254688 Whirlpool Spacer
15	WPW10410341 Whirlpool Spacer
16	W11116956 Whirlpool Support Bracket
17	W10294853 Whirlpool Mounting Bracket
