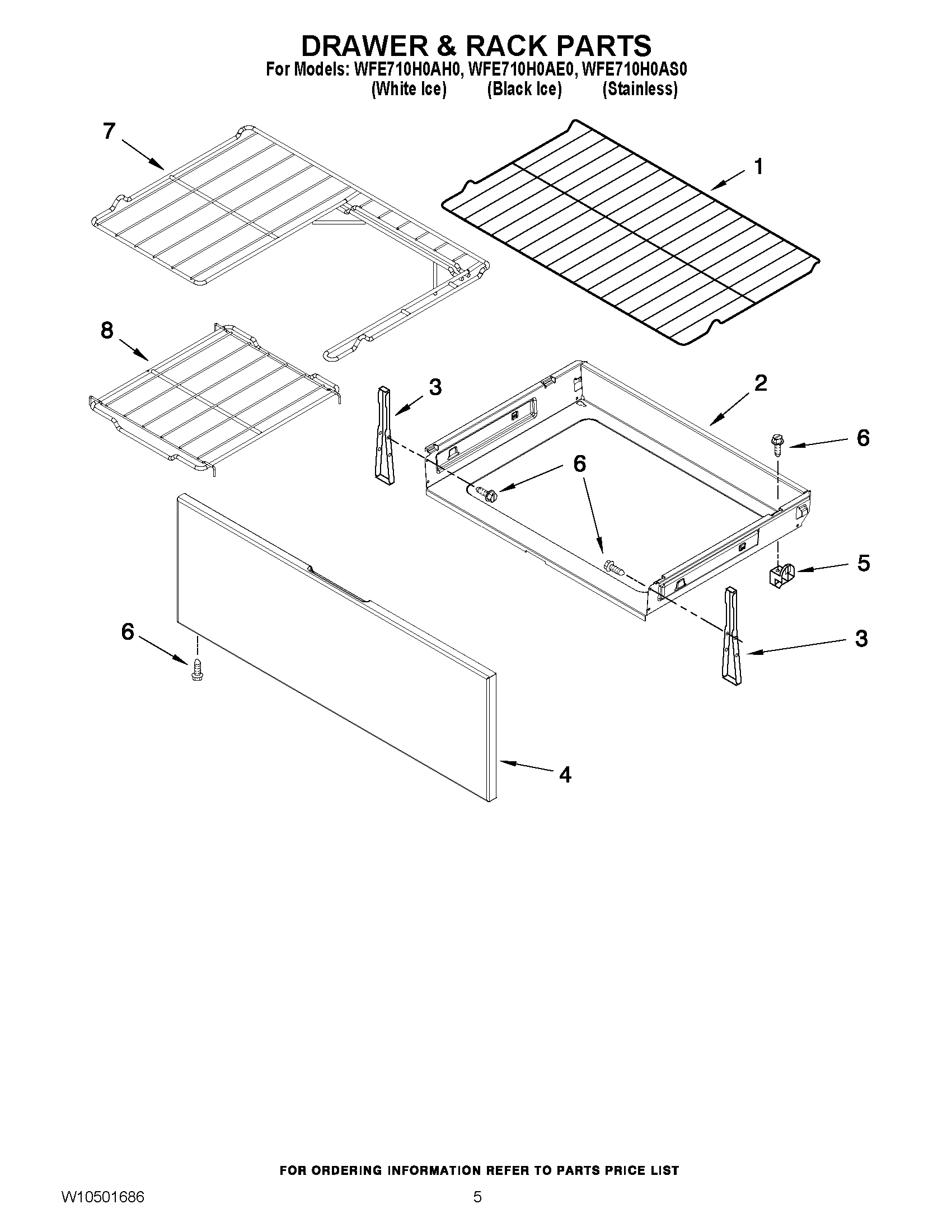

WFE710H0AH0 04 – DRAWER & RACK PARTS

WFE710H0AH0 04 – DRAWER & RACK PARTS

Written by

in

WFE710H0AH0 04 – DRAWER & RACK PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2W10813962 Whirlpool Utility Drawer
3WPW10318027 Whirlpool Mounting Bracket
4W11297552 Whirlpool Drawer Panel
4W11280103 Whirlpool Drawer Panel
4W11297555 Whirlpool Drawer Panel
5GLIDE-RANGE DRAWER KIT
6WP3196175 Whirlpool Screw
7W10205526 Whirlpool Oven Rack
8W10186592 Whirlpool Oven Rack Assembly
