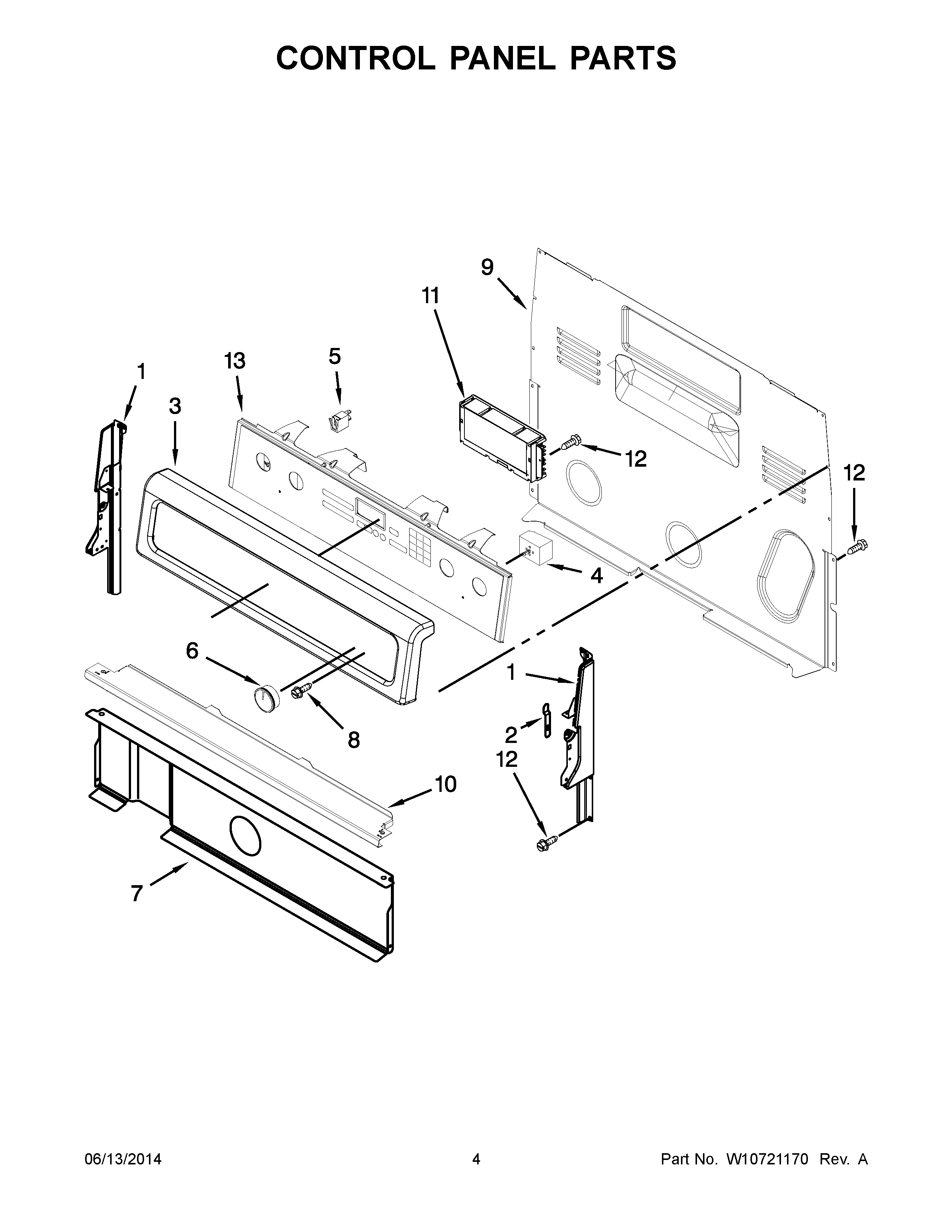

WFE710H0AH1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	3196200 Whirlpool Clip
3	WPW10318552 Whirlpool Control Panel
3	WPW10318551 Whirlpool Control Panel
3	WPW10318550 Whirlpool Control Panel
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WPW10411934 Whirlpool Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WPW10430806 Whirlpool Knob
7	W10134247 Whirlpool Heat Shield
8	WP3400882 Whirlpool Screw
9	WP8272473 Whirlpool Rear Cover
10	W10525121 Whirlpool Control Bracket
11	WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
12	SCREW
13	W10347930 Whirlpool Membrane Switch
13	W10347929 Whirlpool Membrane Switch
