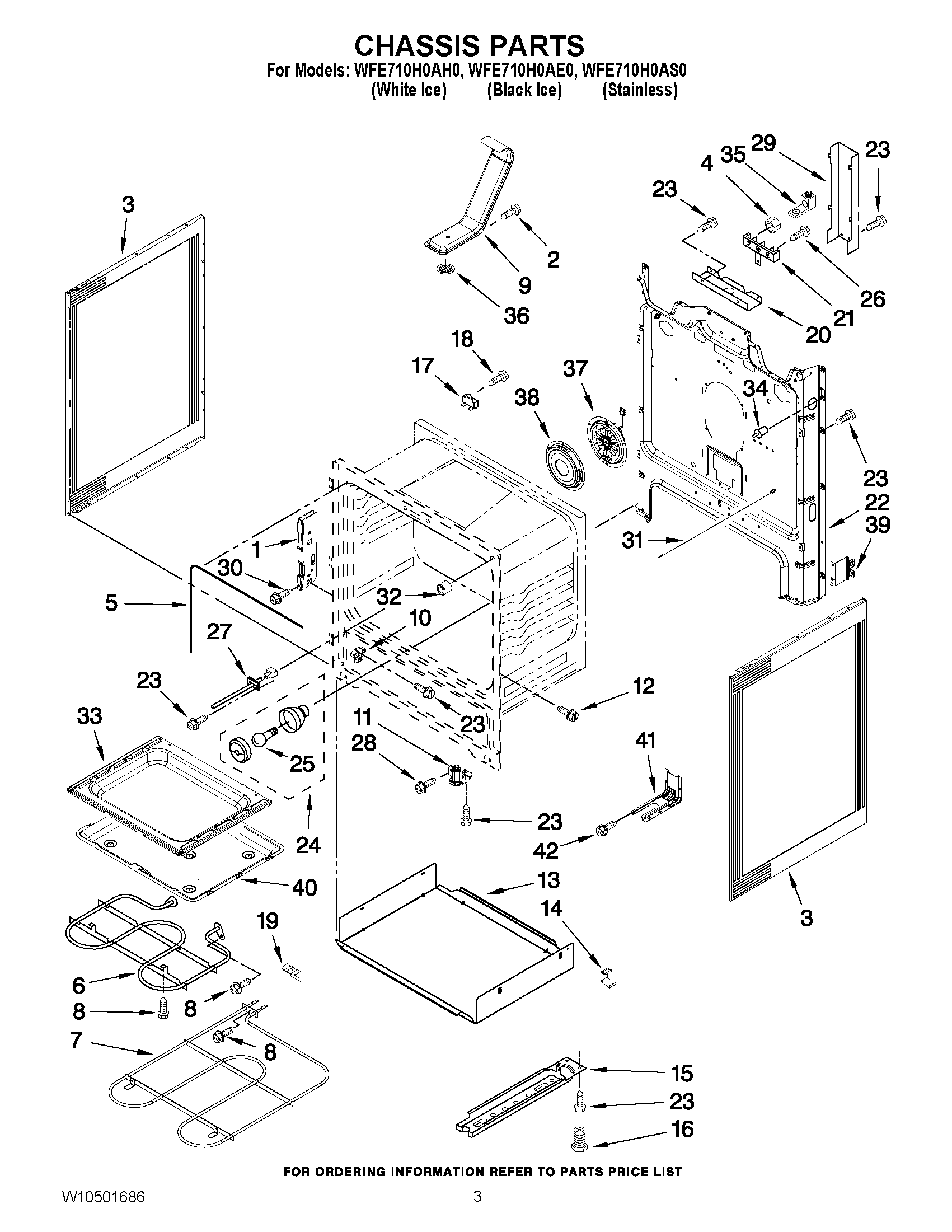

WFE710H0AS0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, STRAP
NI	WPW10194393 Whirlpool Insulation
NI	WPW10225523 Whirlpool Insulation
NI	WPW10225524 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	Nut
5	W11562931 Whirlpool Door Gasket
6	WPW10535127 Whirlpool Broil Element
7	W10779716 Whirlpool Oven Bake Element
9	WPW10134285 Whirlpool Vent Tube
10	GLIDE-RANGE DRAWER KIT
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	W10726740 Whirlpool Heat Shield
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10035900 Whirlpool Support Bracket
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	BACK, MAIN
23	SCREW
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3400016 Whirlpool Screw Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	W11370463 Whirlpool Door Rod Assembly
32	W10877054 Whirlpool Spacer Assembly
33	W10789865 Whirlpool Oven Bottom
34	WP9757262 Whirlpool Light Switch
35	WPW10281322 Whirlpool Connector
36	9761301 Whirlpool Oven Screen
37	W11043837 Whirlpool Convection Fan
38	WPW10346154 Whirlpool Cover Assembly
39	W10273002 Whirlpool Support Bracket
40	W11379357 Whirlpool Overflow Pan
41	W11447673 Whirlpool Range Tip Anchor
42	SCREW, ANTI-TIP KIT
