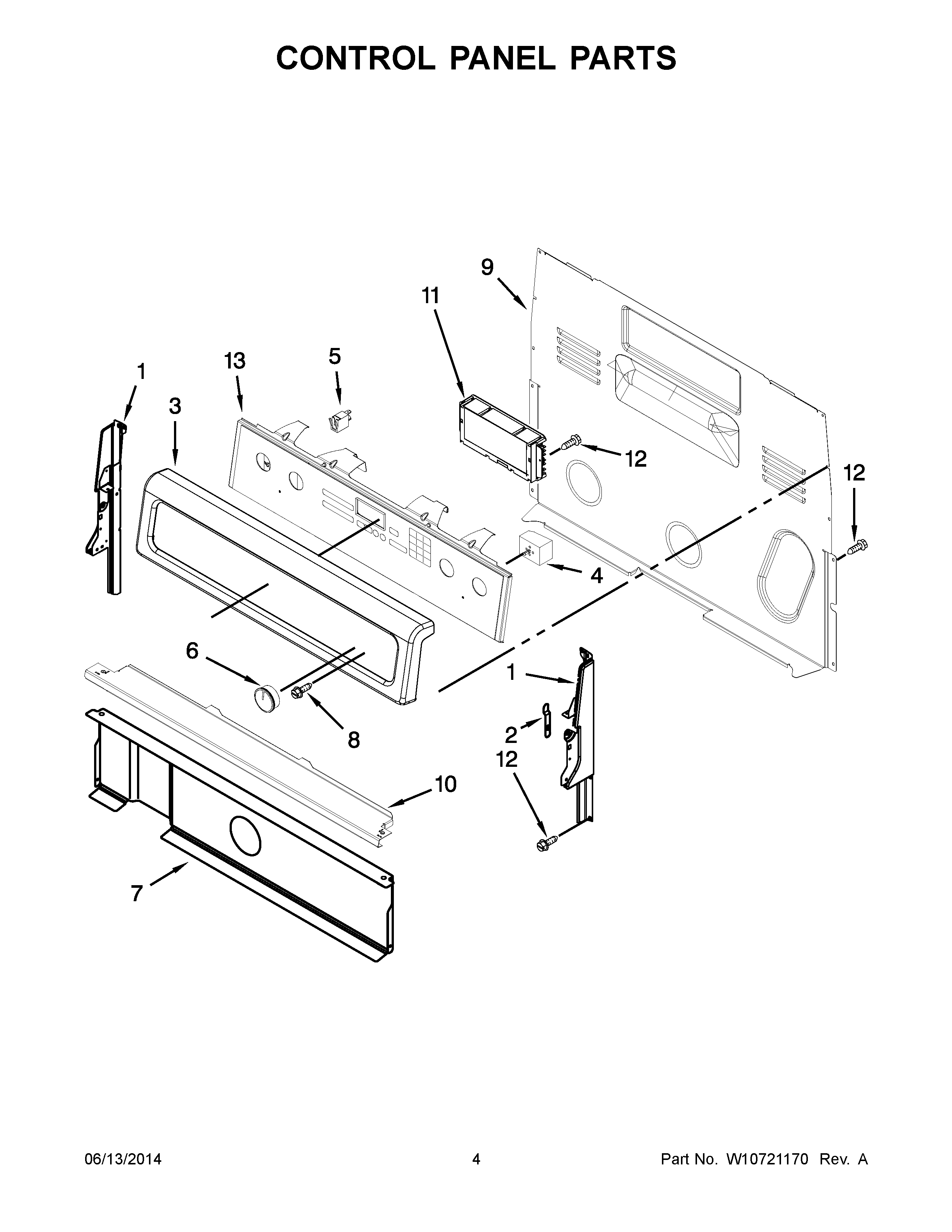

WFE710H0AS1 03 – CONTROL PANEL PARTS

WFE710H0AS1 03 – CONTROL PANEL PARTS

Written by

in

WFE710H0AS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3WPW10318552 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
3WPW10318550 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4WPW10411934 Whirlpool Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WPW10430806 Whirlpool Knob
7W10134247 Whirlpool Heat Shield
8WP3400882 Whirlpool Screw
9WP8272473 Whirlpool Rear Cover
10W10525121 Whirlpool Control Bracket
11WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
12SCREW
13W10347930 Whirlpool Membrane Switch
13W10347929 Whirlpool Membrane Switch
