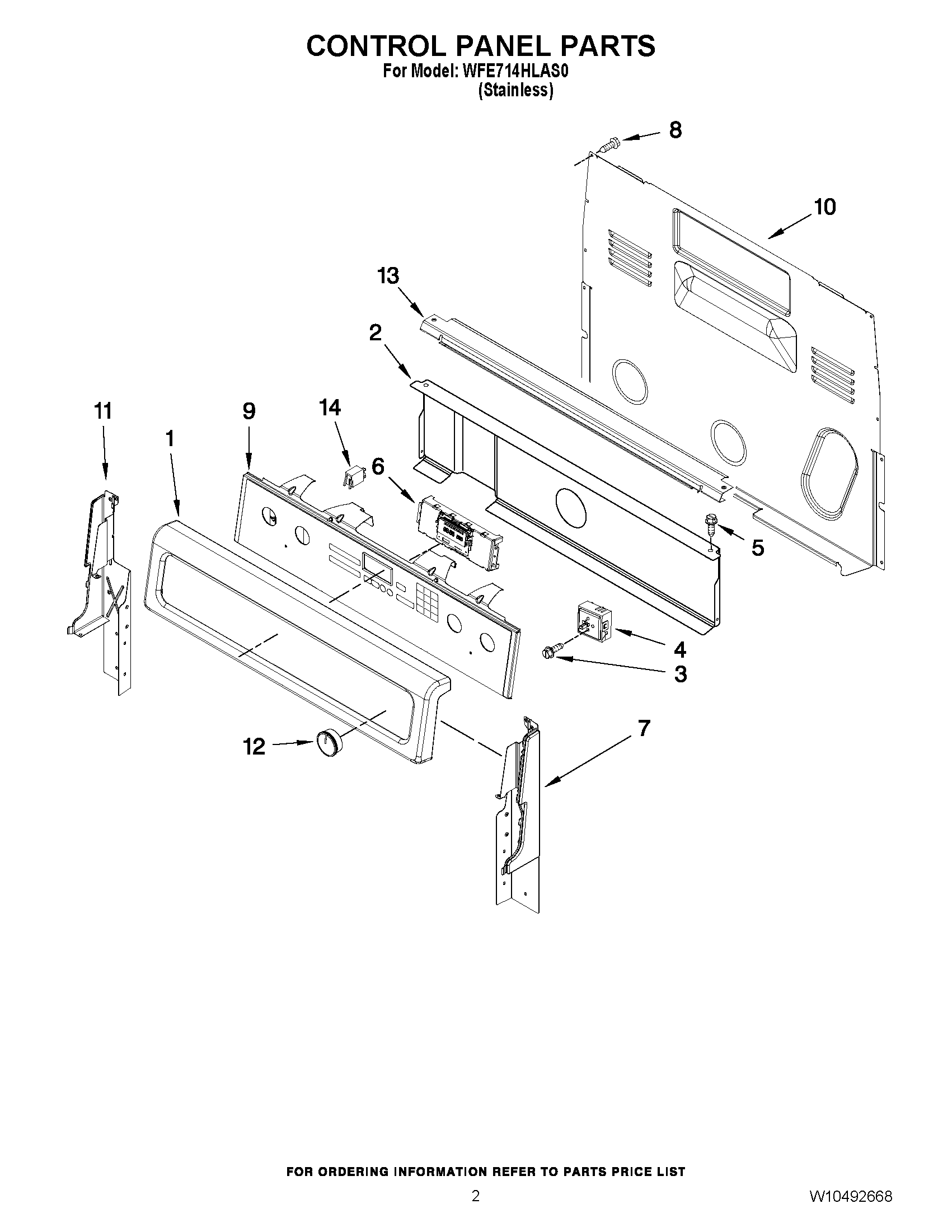

WFE714HLAS0 02 – CONTROL PANEL PARTS

WFE714HLAS0 02 – CONTROL PANEL PARTS

Written by

in

WFE714HLAS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10318550 Whirlpool Control Panel
2W10134247 Whirlpool Heat Shield
3WP3400882 Whirlpool Screw
4WPW10391743 Whirlpool Infinite Switch
4WPW10411934 Whirlpool Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5SCREW
6WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
7W11219664 Whirlpool Endcap Panel
8WP3196175 Whirlpool Screw
9W10347931 Whirlpool Membrane Switch
10WP8272473 Whirlpool Rear Cover
11W11219665 Whirlpool Panel Endcap
12WPW10430806 Whirlpool Knob
13W10525121 Whirlpool Control Bracket
14WP8523265 Whirlpool Indicator Light
