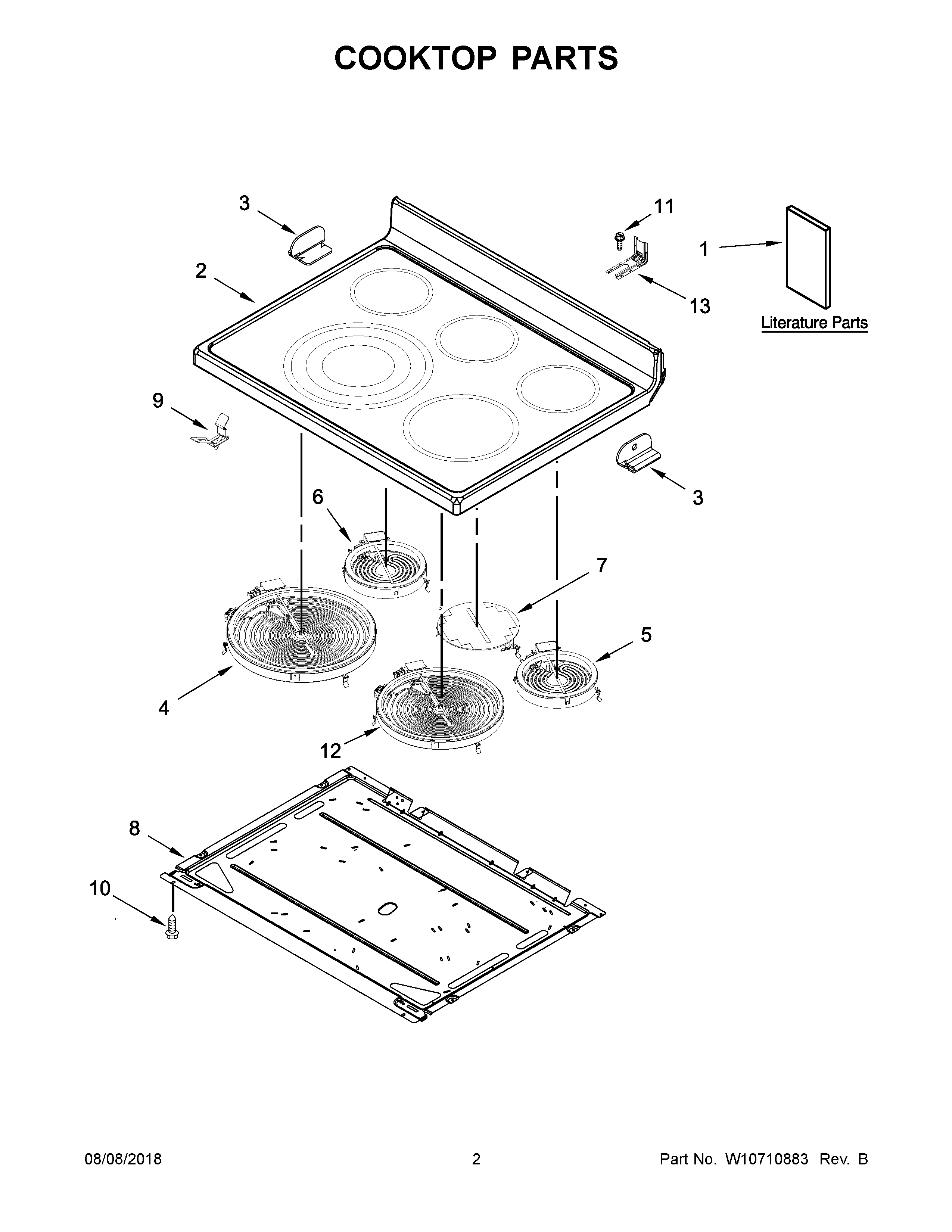

WFE714HLAS1 02 – COOKTOP PARTS

WFE714HLAS1 02 – COOKTOP PARTS

Written by

in

WFE714HLAS1 02 – COOKTOP PARTS

Products

PositionProduct
NISCREW
NIW10349734 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
NIHARNESS, MAIN
NICABINET (NOT A SERVICEABLE PART)
1OWNERS MANUAL
1BTECH SHEET, (ENGLISH)
1AINSTRUCTIONS, INSTALLATION
1CQUICK START GUIDE
2W10651915 Whirlpool Cooktop
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4WPW10162041 Whirlpool Surface Element
5ELMNT-SURF
6WPW10342780 Whirlpool Surface Element
7W11041453 Whirlpool Surface Element
8PAN
9WPW10225448 Whirlpool Spring Assembly
10WP3196175 Whirlpool Screw
11SCREW, ANTI-TIP KIT
12WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
13W11447673 Whirlpool Range Tip Anchor
