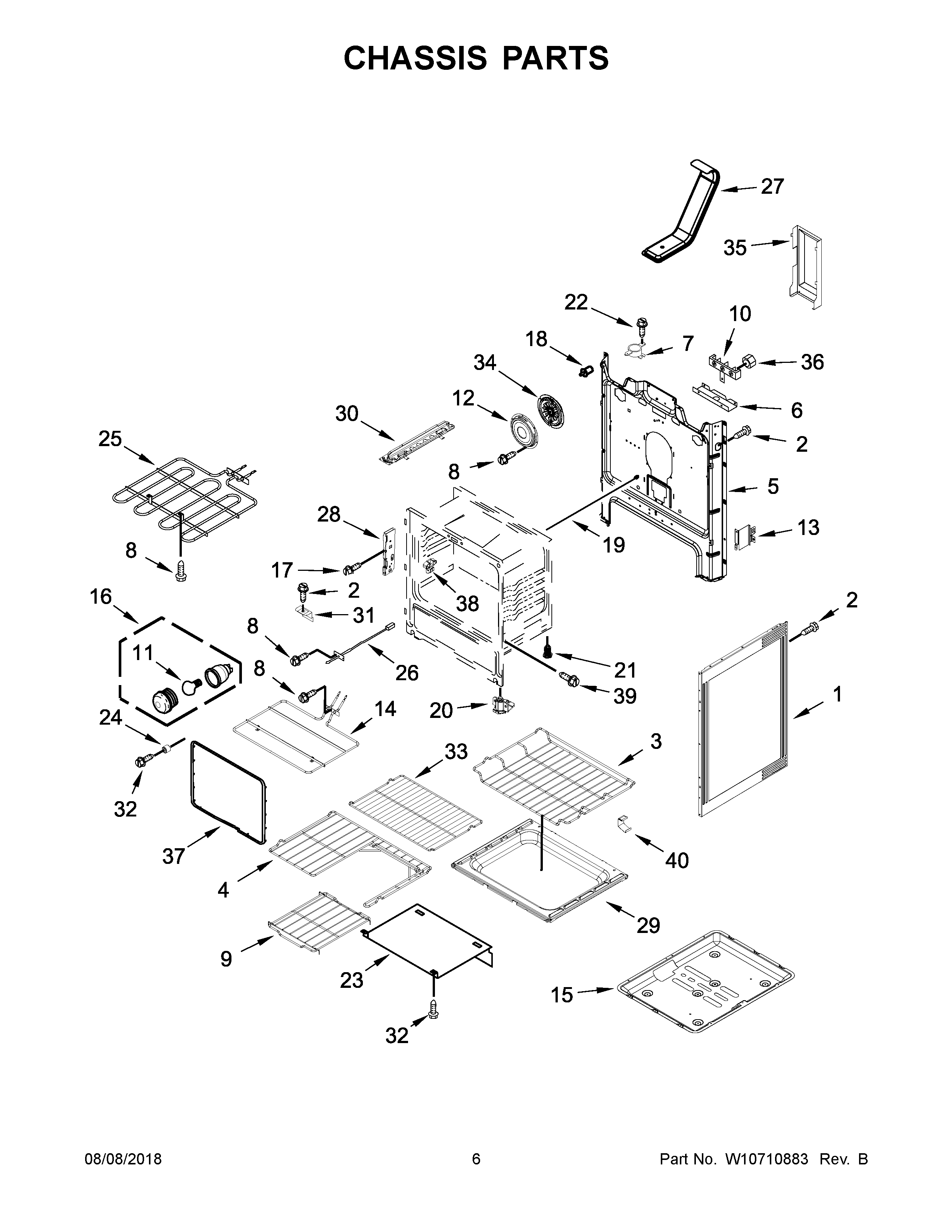

WFE714HLAS1 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10281322 Whirlpool Connector
NI	INSULATION, STRAP
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10225523 Whirlpool Insulation
NI	WPW10225524 Whirlpool Insulation
NI	WPW10194393 Whirlpool Insulation
1	W11730303 Whirlpool Side Panel
2	SCREW
3	WPW10289145 Whirlpool Oven Rack
4	W10205526 Whirlpool Oven Rack
5	BACK, MAIN
6	W11728255 Whirlpool Service Bracket
7	WP3196548 Whirlpool Thermal Fuse
9	W10186592 Whirlpool Oven Rack Assembly
10	WPW10245259 Whirlpool Terminal Block
11	BULB-LIGHT
12	WPW10346154 Whirlpool Cover Assembly
13	W10273002 Whirlpool Support Bracket
14	W10779716 Whirlpool Oven Bake Element
15	W11379357 Whirlpool Overflow Pan
16	W11594027 Whirlpool Range Oven Light Socket
17	W10777162 Whirlpool Screw
18	WP9757262 Whirlpool Light Switch
19	W11370463 Whirlpool Door Rod Assembly
20	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
21	WPW10058460 Whirlpool Appliance Levelling Leg
22	3196172 Whirlpool Oven Screw
23	W10726740 Whirlpool Heat Shield
24	W10877054 Whirlpool Spacer Assembly
25	W11321472 Whirlpool Broil Element
26	SENSOR-RANGE
27	WPW10134285 Whirlpool Vent Tube
28	W10647259 Whirlpool Hinge Receiver
29	W10777210 Whirlpool Oven Bottom
30	WPW10306546 Whirlpool Base Rail
31	W10035900 Whirlpool Support Bracket
32	WP3196175 Whirlpool Screw
33	WPW10531060 Whirlpool Oven Rack
34	W10903746 Whirlpool Convection Fan
35	WPW10326122 Whirlpool Black Cover
36	WP3400029 Whirlpool Dishwasher Nut
37	W11562931 Whirlpool Door Gasket
38	W10807823 Whirlpool Drawer Glide
39	Screw
40	W10137382 Whirlpool Clip
