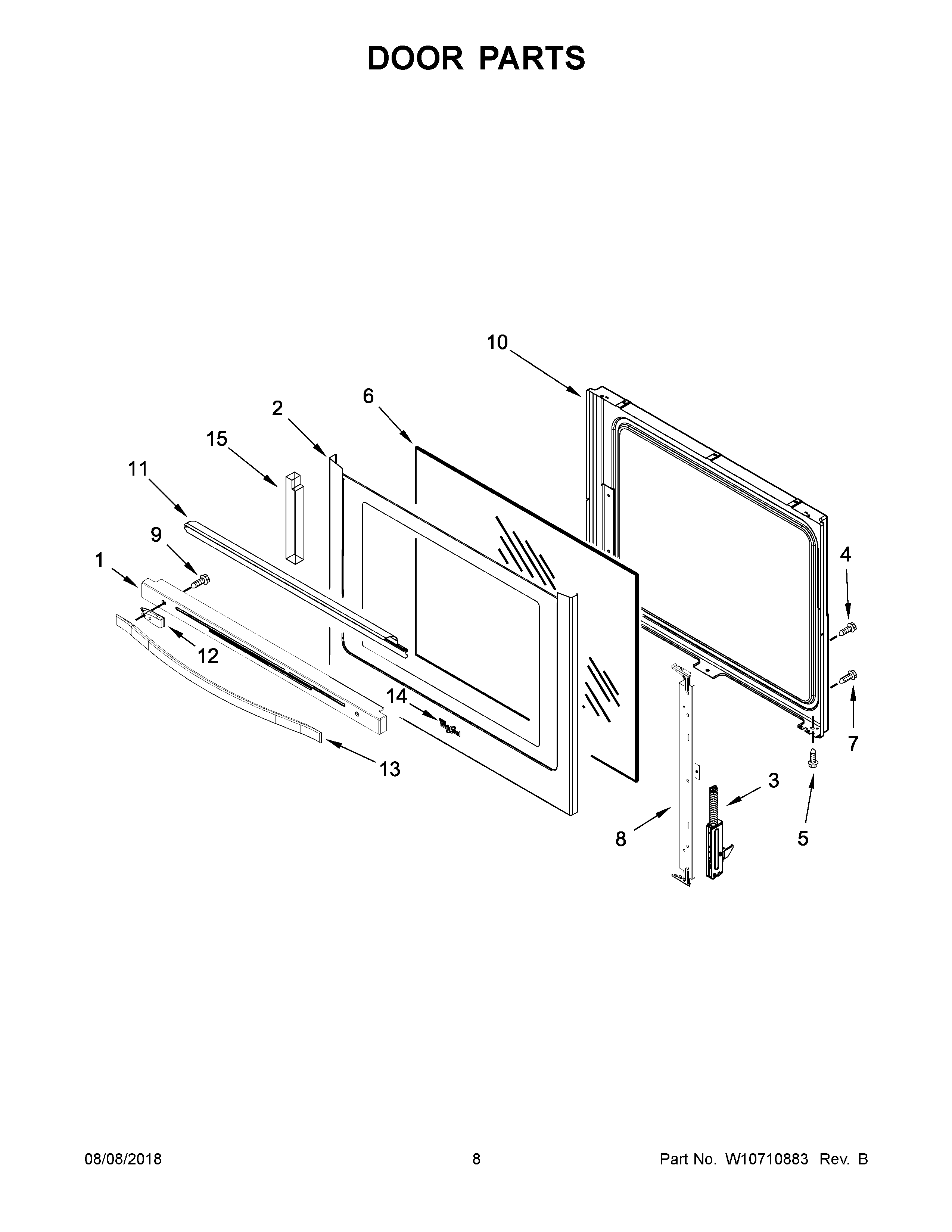

WFE714HLAS1 05 – DOOR PARTS

WFE714HLAS1 05 – DOOR PARTS

Written by

in

WFE714HLAS1 05 – DOOR PARTS

Products

PositionProduct
1W10335333 Whirlpool Vent Trim
2WPW10289144 Whirlpool Door Glass
3WPW10440013 Whirlpool Door Hinge
4WPW10031790 Whirlpool Screw
5WP3196175 Whirlpool Screw
6WPW10300487 Whirlpool Door Glass
7W10777162 Whirlpool Screw
8W11116956 Whirlpool Support Bracket
9WPW10317886 Whirlpool Screw
10WPW10297318 Whirlpool Door Liner
11W10294853 Whirlpool Mounting Bracket
12WPW10254688 Whirlpool Spacer
13WPW10618239 Whirlpool Door Handle
14W11178521 Whirlpool Dishwasher Nameplate
15W11688565 Whirlpool Insulation
