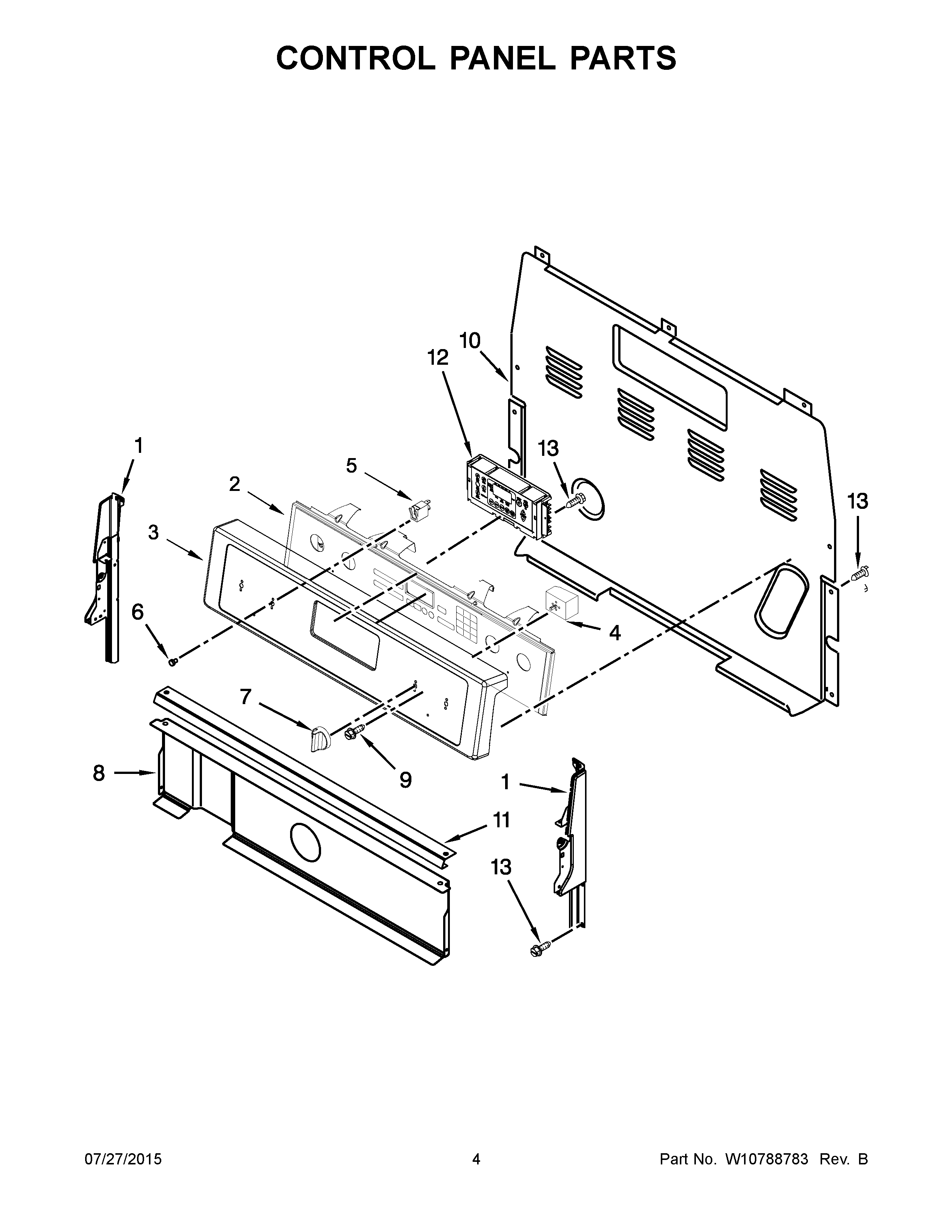

WFE715H0ES0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1A	W11219370 Whirlpool Endcap Panel
1C	W11219665 Whirlpool Panel Endcap
1B	W11219664 Whirlpool Endcap Panel
2A	ACTIVE OVERLAY ASSEMBLY (WHITE)
2	W10730777 Whirlpool Membrane Switch
3	WPW10318552 Whirlpool Control Panel
3A	WPW10318551 Whirlpool Control Panel
3B	WPW10318550 Whirlpool Control Panel
4	SWITCH-INF
4B	W10911303 Whirlpool Infinite Switch
4A	W10917724 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	W10854249 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10340308 Whirlpool Electronic Control Board + Core
13	SCREW
