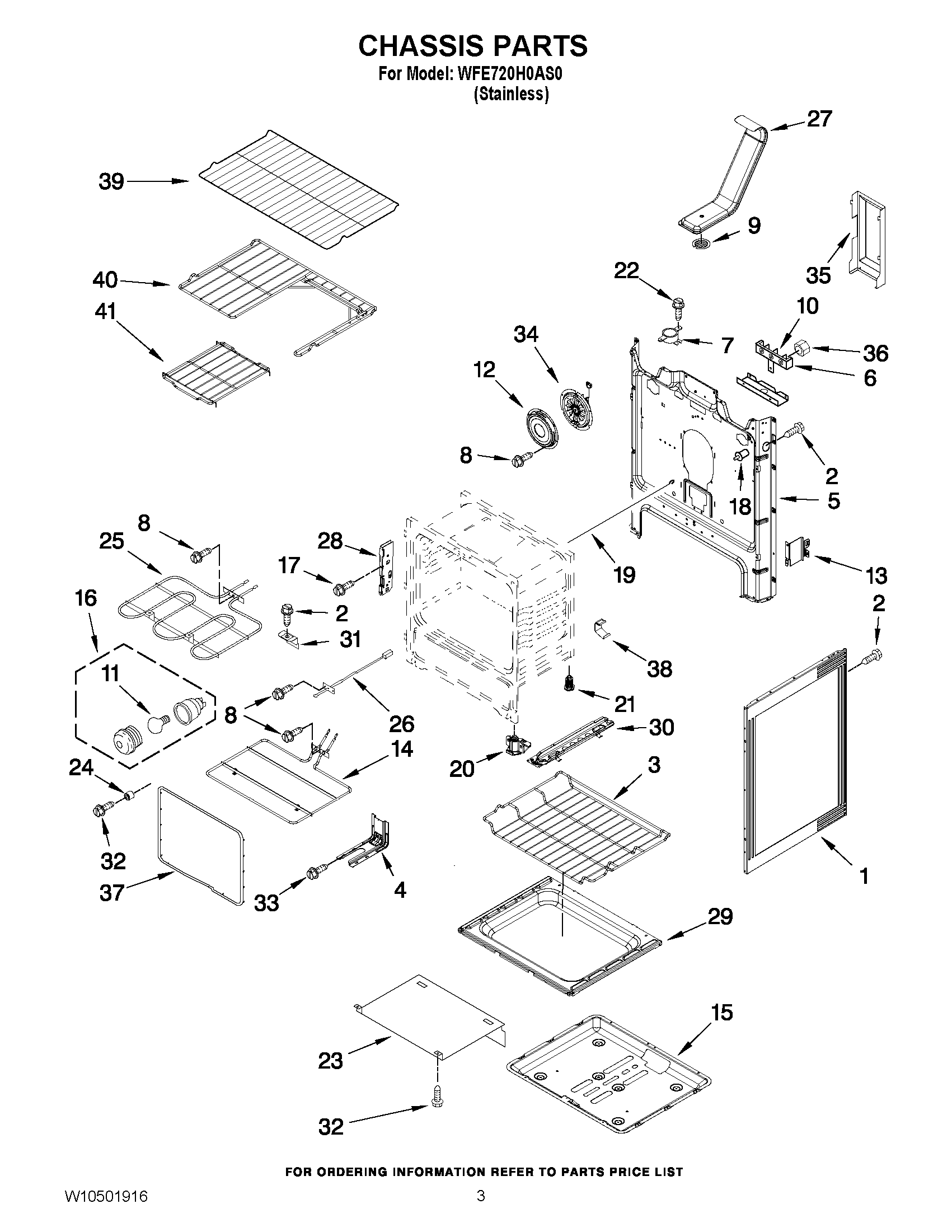

WFE720H0AS0 03 – CHASSIS PARTS

Products

Position	Product
NI	WPW10225523 Whirlpool Insulation
NI	WPW10281322 Whirlpool Connector
NI	WPW10225524 Whirlpool Insulation
NI	WPW10194393 Whirlpool Insulation
NI	INSULATION, STRAP
1	W11730303 Whirlpool Side Panel
2	SCREW
3	WPW10289145 Whirlpool Oven Rack
4	W11447673 Whirlpool Range Tip Anchor
5	BACK, MAIN
6	W11728255 Whirlpool Service Bracket
7	WP3196548 Whirlpool Thermal Fuse
9	9761301 Whirlpool Oven Screen
10	WPW10245259 Whirlpool Terminal Block
11	RANGE ONLY 40W 120V APPL BULB
12	WPW10346154 Whirlpool Cover Assembly
13	W10273002 Whirlpool Support Bracket
14	W10779716 Whirlpool Oven Bake Element
15	W11379357 Whirlpool Overflow Pan
16	W11594027 Whirlpool Range Oven Light Socket
17	W10777162 Whirlpool Screw
18	WP9757262 Whirlpool Light Switch
19	W11370463 Whirlpool Door Rod Assembly
20	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
21	WPW10058460 Whirlpool Appliance Levelling Leg
22	3196172 Whirlpool Oven Screw
23	W10726740 Whirlpool Heat Shield
24	W10877054 Whirlpool Spacer Assembly
25	WPW10535127 Whirlpool Broil Element
26	WPW10181986 Whirlpool Oven Sensor
27	WPW10134285 Whirlpool Vent Tube
28	W10647259 Whirlpool Hinge Receiver
29	W10789865 Whirlpool Oven Bottom
30	WPW10306546 Whirlpool Base Rail
31	W10035900 Whirlpool Support Bracket
32	WP3196175 Whirlpool Screw
33	SCREW, ANTI-TIP KIT
34	W11043837 Whirlpool Convection Fan
35	WPW10326122 Whirlpool Black Cover
36	Nut
37	W11562931 Whirlpool Door Gasket
38	W10137382 Whirlpool Clip
39	WPW10256908 Whirlpool Oven Range Rack
40	W10205526 Whirlpool Oven Rack
41	W10186592 Whirlpool Oven Rack Assembly
