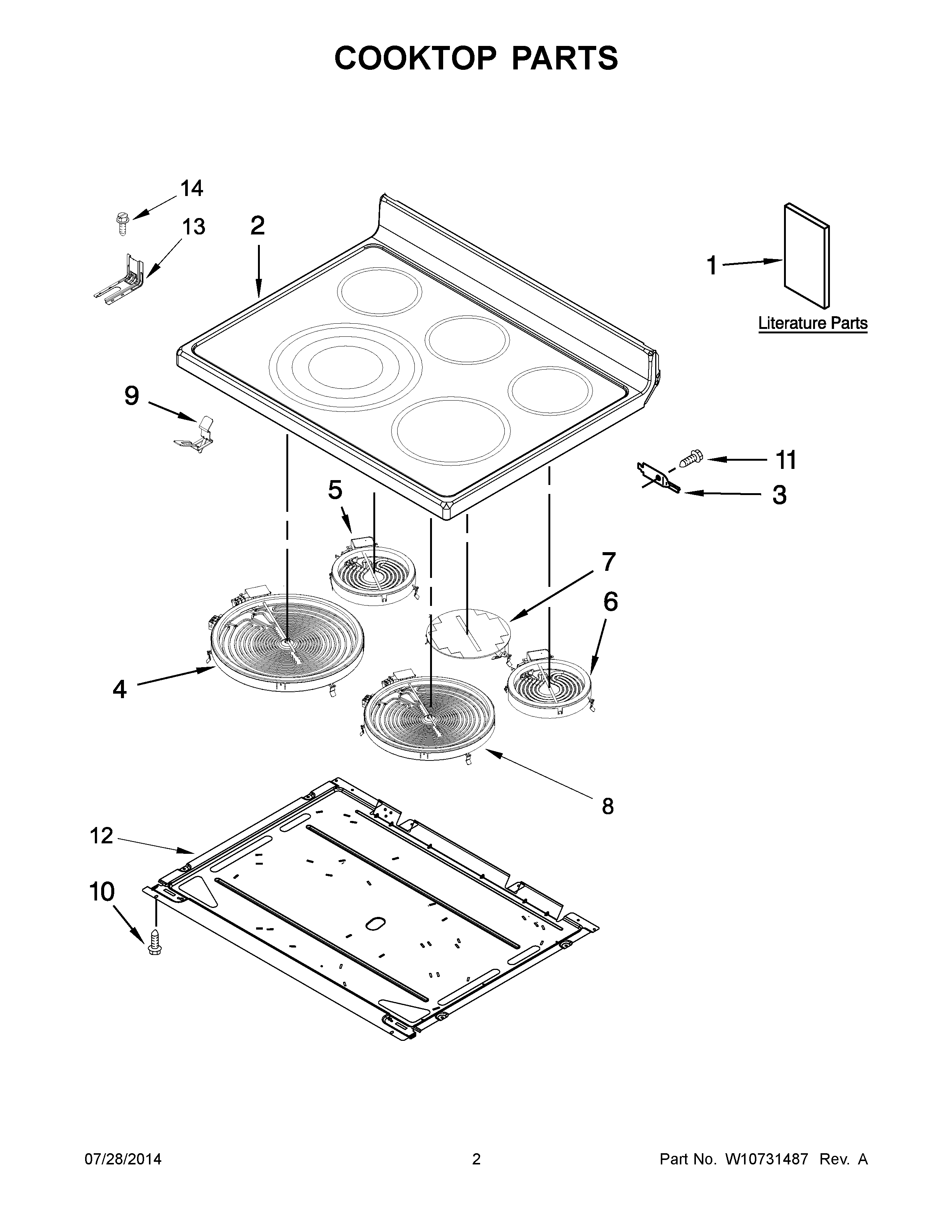

WFE720H0AS1 02 – COOKTOP PARTS

WFE720H0AS1 02 – COOKTOP PARTS

Written by

in

WFE720H0AS1 02 – COOKTOP PARTS

Products

PositionProduct
NIW11134592 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
NIW10324946 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
NIW10324944 Whirlpool Wire Harness
NIW10349734 Whirlpool Wire Harness
NIHARNESS, MAIN
NICABINET (NOT A SERVICEABLE PART)
1BINSTRUCTIONS, INSTALLATION
1OWNERS MANUAL
1ATECH SHEET, (ENGLISH)
1CQUICK START GUIDE
1DSAFER COOKING TIPS (ENGLISH
2W10651915 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WPW10162041 Whirlpool Surface Element
5ELMNT-SURF
6WPW10342780 Whirlpool Surface Element
7W11047668 Whirlpool Surface Element
8WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
9WPW10225448 Whirlpool Spring Assembly
10WP3196175 Whirlpool Screw
11SCREW
12PAN
13W11447673 Whirlpool Range Tip Anchor
14SCREW, ANTI-TIP KIT
