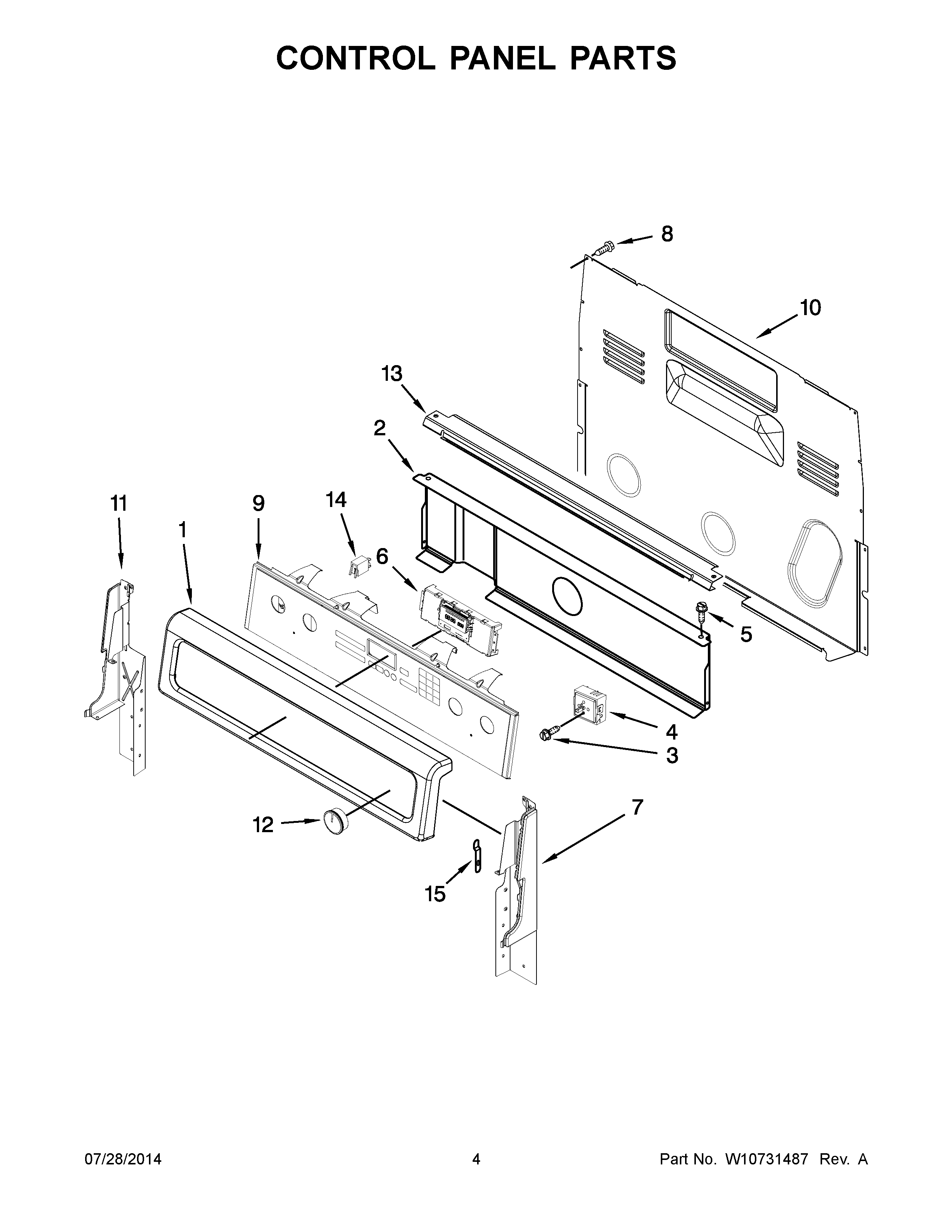

WFE720H0AS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	WPW10318550 Whirlpool Control Panel
2	W10134247 Whirlpool Heat Shield
3	WP3400882 Whirlpool Screw
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	WPW10391743 Whirlpool Infinite Switch
4B	WPW10411934 Whirlpool Infinite Switch
5	SCREW
6	WPW10340308 Whirlpool Electronic Control Board + Core
7	W11219664 Whirlpool Endcap Panel
8	WP3196175 Whirlpool Screw
9	W10318560 Whirlpool Membrane Switch
10	WP8272473 Whirlpool Rear Cover
11	W11219665 Whirlpool Panel Endcap
12	WPW10430806 Whirlpool Knob
13	W10525121 Whirlpool Control Bracket
14	WP8523265 Whirlpool Indicator Light
15	3196200 Whirlpool Clip
