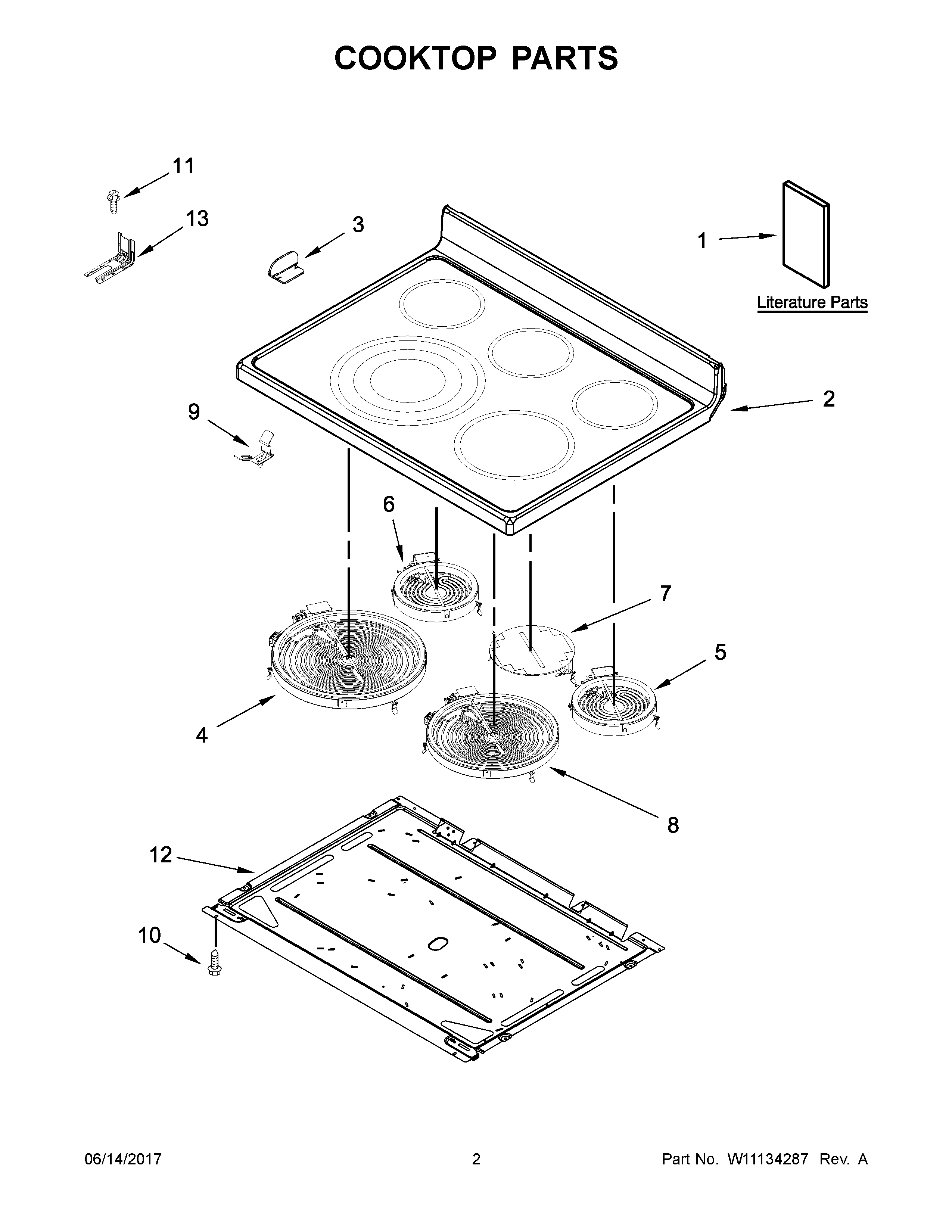

WFE745H0FE1 02 – COOKTOP PARTS

WFE745H0FE1 02 – COOKTOP PARTS

Written by

in

WFE745H0FE1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10829580 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
NIW11501964 Whirlpool Wire Harness
1ASHEET, TECH (ENGLISH)
1DSAFER COOKING TIPS (ENGLISH
1CQUICK START GUIDE
1GUIDE, USE & CARE (ENGLISH)
1BINSTRUCTIONS, INSTALLATION
2AW10872564 Whirlpool Cooktop
2W10872562 Whirlpool Cooktop Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W11563195 Whirlpool Surface Element
5ELMNT-SURF
6WPW10342780 Whirlpool Surface Element
7W11041453 Whirlpool Surface Element
8W11517959 Whirlpool Electric Range Radiant Surface Element
9WPW10225448 Whirlpool Spring Assembly
10WP3196175 Whirlpool Screw
11SCREW, ANTI-TIP KIT
12PAN
13W11447673 Whirlpool Range Tip Anchor
