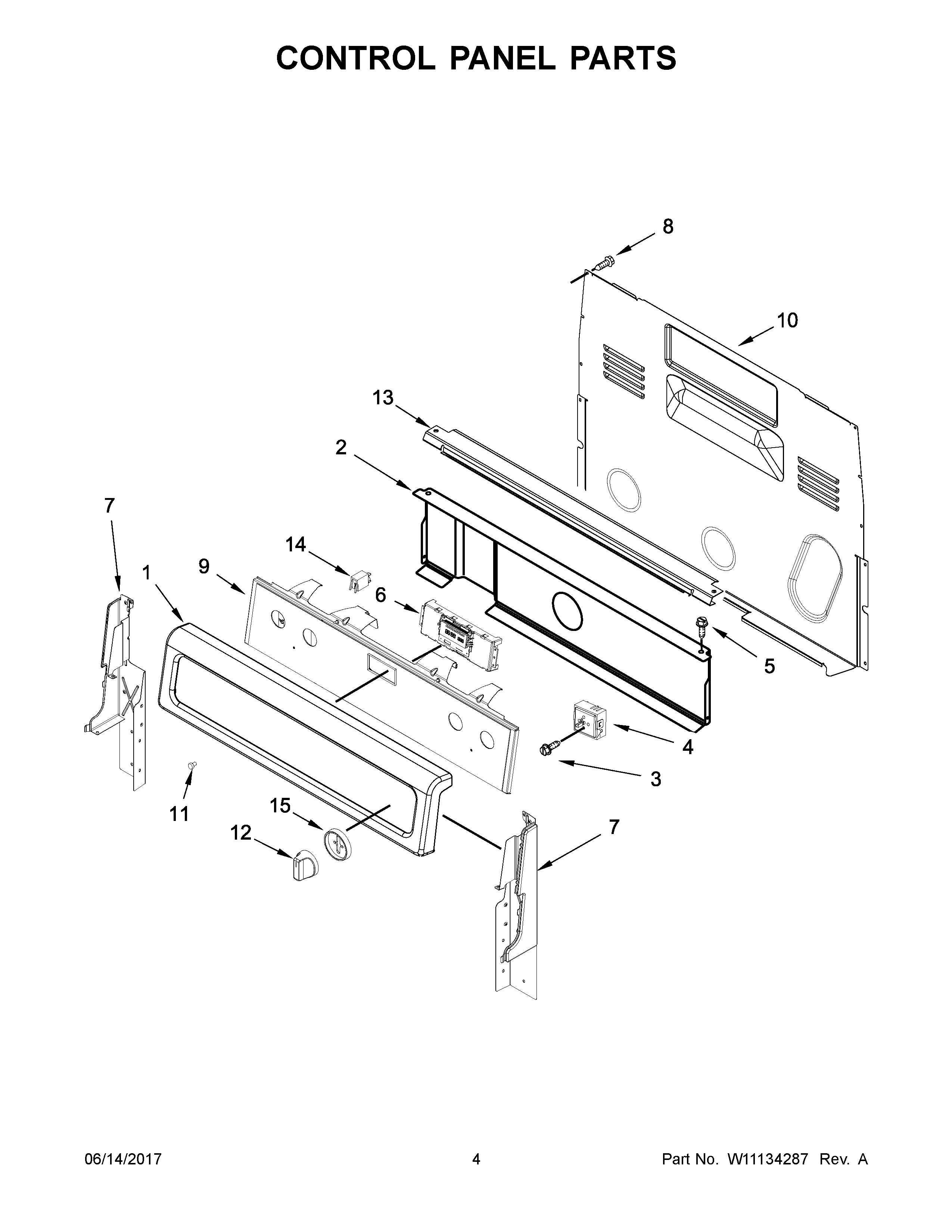

WFE745H0FE1 03 – CONTROL PANEL PARTS

WFE745H0FE1 03 – CONTROL PANEL PARTS

Written by

in

WFE745H0FE1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BWPW10318550 Whirlpool Control Panel
1WPW10318551 Whirlpool Control Panel
1AWPW10318552 Whirlpool Control Panel
2W10134247 Whirlpool Heat Shield
3WP3400882 Whirlpool Screw
4AW10917724 Whirlpool Infinite Switch
4BSWITCH-INF
4CW10911303 Whirlpool Infinite Switch
4W11129442 Whirlpool Surface Infinite Element Switch
5SCREW
6W11308431 Whirlpool Electronic Control Board
7CW11219370 Whirlpool Endcap Panel
7BW11219365 Whirlpool Panel Endcap
7AW11219665 Whirlpool Panel Endcap
7W11219664 Whirlpool Endcap Panel
8WP3196175 Whirlpool Screw
9AW10826709 Whirlpool Membrane Switch
9W10826708 Whirlpool Membrane Switch
9BW10840425 Whirlpool Membrane Switch
10WP8272473 Whirlpool Rear Cover
11WP3196068 Whirlpool Light Lens
12W11517331 Whirlpool Knob
13W10525121 Whirlpool Control Bracket
14WP8523265 Whirlpool Indicator Light
15W10850042 Whirlpool Knob Bezel
