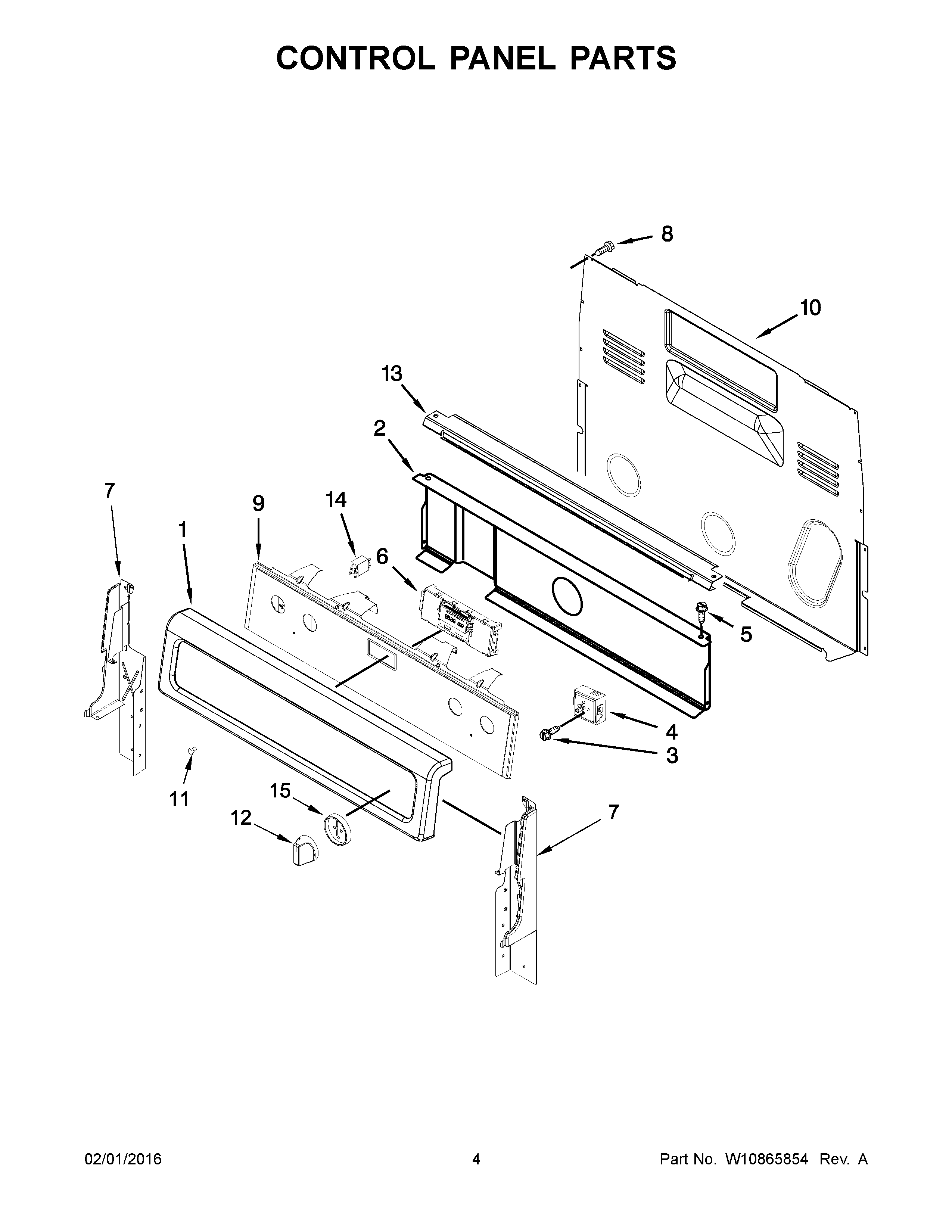

WFE745H0FS0 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	WPW10318550 Whirlpool Control Panel
1	WPW10318551 Whirlpool Control Panel
1A	WPW10318552 Whirlpool Control Panel
2	W10134247 Whirlpool Heat Shield
3	WP3400882 Whirlpool Screw
4A	W10917724 Whirlpool Infinite Switch
4B	SWITCH-INF
4C	W10911303 Whirlpool Infinite Switch
4	W11129442 Whirlpool Surface Infinite Element Switch
5	SCREW
6	W11308431 Whirlpool Electronic Control Board
7C	W11219370 Whirlpool Endcap Panel
7B	W11219365 Whirlpool Panel Endcap
7A	W11219665 Whirlpool Panel Endcap
7	W11219664 Whirlpool Endcap Panel
8	WP3196175 Whirlpool Screw
9A	W10826709 Whirlpool Membrane Switch
9	W10826708 Whirlpool Membrane Switch
9B	W10840425 Whirlpool Membrane Switch
10	WP8272473 Whirlpool Rear Cover
11	WP3196068 Whirlpool Light Lens
12	W11517331 Whirlpool Knob
13	W10525121 Whirlpool Control Bracket
14	WP8523265 Whirlpool Indicator Light
15	W10850042 Whirlpool Knob Bezel
