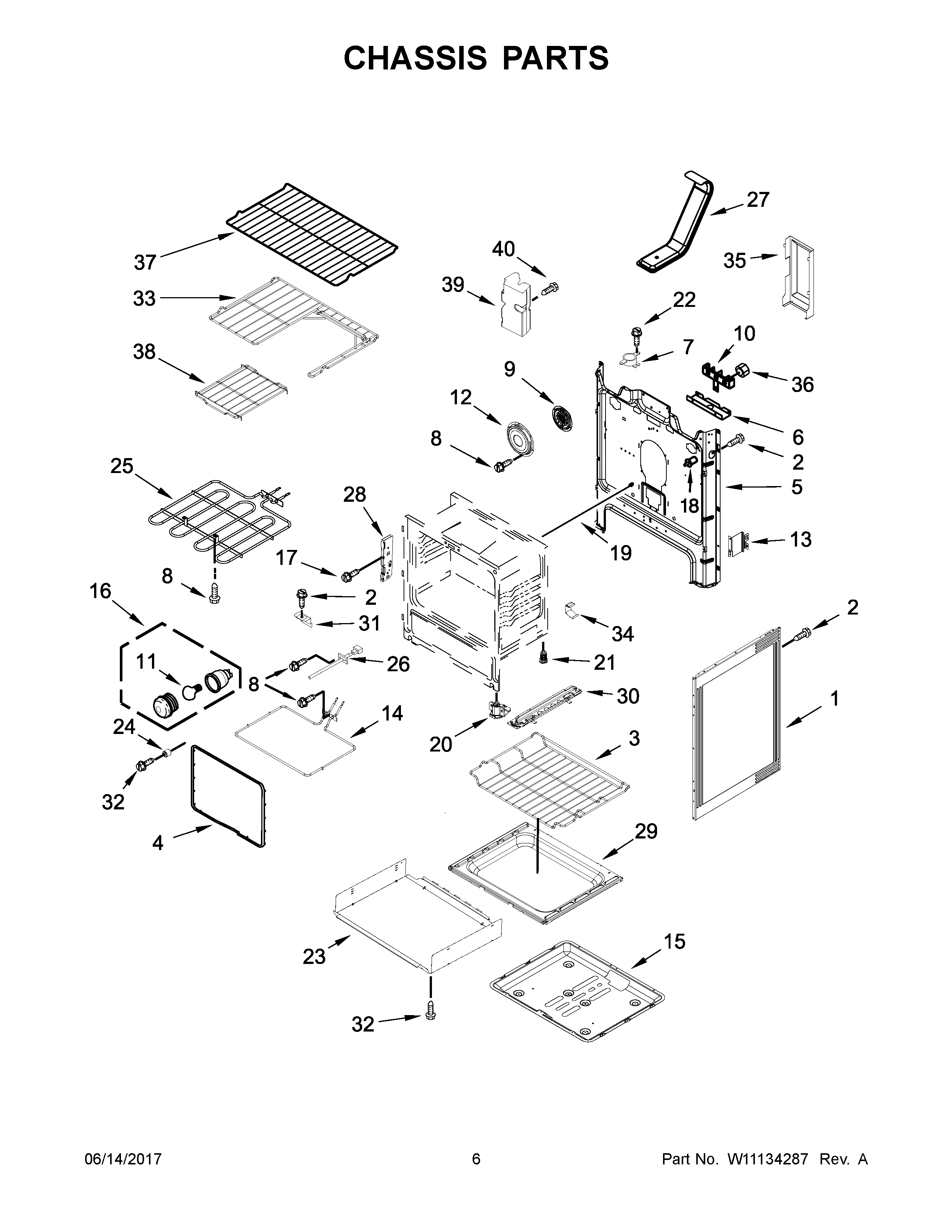

WFE745H0FS1 04 – CHASSIS PARTS

Products

PositionProduct
NIWPW10225524 Whirlpool Insulation
NIWPW10194393 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIWPW10225523 Whirlpool Insulation
NIINSULATION, STRAP
1W11730303 Whirlpool Side Panel
1AWPW10575396 Whirlpool Side Panel
2SCREW
3WPW10289145 Whirlpool Oven Rack
4W11562931 Whirlpool Door Gasket
6W11728255 Whirlpool Service Bracket
7WP3196548 Whirlpool Thermal Fuse
9W10903746 Whirlpool Convection Fan
10WPW10245259 Whirlpool Terminal Block
11RANGE ONLY 40W 120V APPL BULB
12WPW10346154 Whirlpool Cover Assembly
13W10273002 Whirlpool Support Bracket
14W10779716 Whirlpool Oven Bake Element
15W11379357 Whirlpool Overflow Pan
16W11594027 Whirlpool Range Oven Light Socket
17W10777162 Whirlpool Screw
18WP9757262 Whirlpool Light Switch
19W11370463 Whirlpool Door Rod Assembly
20WPW10341186 Whirlpool Refrigerator Front Levelling Leg
21WPW10058460 Whirlpool Appliance Levelling Leg
223196172 Whirlpool Oven Screw
23W10726740 Whirlpool Heat Shield
24W10877054 Whirlpool Spacer Assembly
25W11321472 Whirlpool Broil Element
26SENSOR-RANGE
27WPW10134285 Whirlpool Vent Tube
28W10647259 Whirlpool Hinge Receiver
29W10777210 Whirlpool Oven Bottom
30WPW10306546 Whirlpool Base Rail
31W10035900 Whirlpool Support Bracket
32WP3196175 Whirlpool Screw
33W10205526 Whirlpool Oven Rack
34W10137382 Whirlpool Clip
35WPW10326122 Whirlpool Black Cover
36WP3400029 Whirlpool Dishwasher Nut
37WPW10531060 Whirlpool Oven Rack
38W10186592 Whirlpool Oven Rack Assembly
39W11135752 Whirlpool Anchor Tip
40W11135756 Whirlpool Screw Torx
