WFE745H0FS2 02 – COOKTOP PARTS
Written by
in

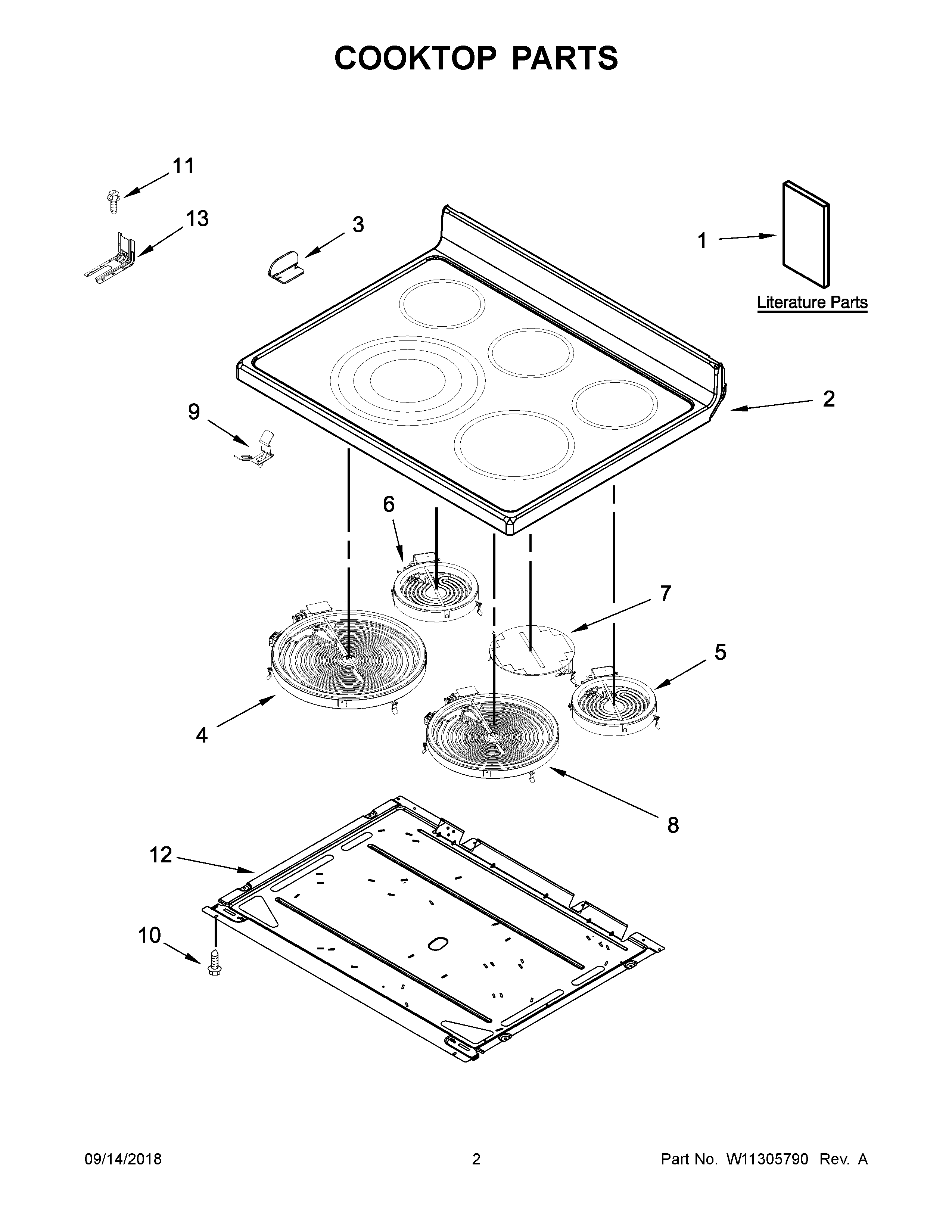

WFE745H0FS2 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11501964 Whirlpool Wire Harness
NI
W11212183 Whirlpool Wire Harness
NI
W11134592 Whirlpool Wire Harness
NI
W11134550 Whirlpool Wire Harness
NI
W11190446 Whirlpool Wire Harness
NI
WPW10281322 Whirlpool Connector
1B
INSTALLATION INSTRUCTIONS
1C
QUICK START GUIDE
1
GUIDE, USE & CARE (ENGLISH)
1A
SHEET, TECH (ENGLISH)
2
W10872562 Whirlpool Cooktop Assembly
3A
W10607642 Whirlpool Clip
3
W10607641 Whirlpool Clip
4
W11563195 Whirlpool Surface Element
5
ELMNT-SURF
6
WPW10342780 Whirlpool Surface Element
7
W11041453 Whirlpool Surface Element
8
W11517959 Whirlpool Electric Range Radiant Surface Element
9
WPW10225448 Whirlpool Spring Assembly
10
WP3196175 Whirlpool Screw
11
SCREW, ANTI-TIP KIT
12
PAN
13
W11447673 Whirlpool Range Tip Anchor
←
