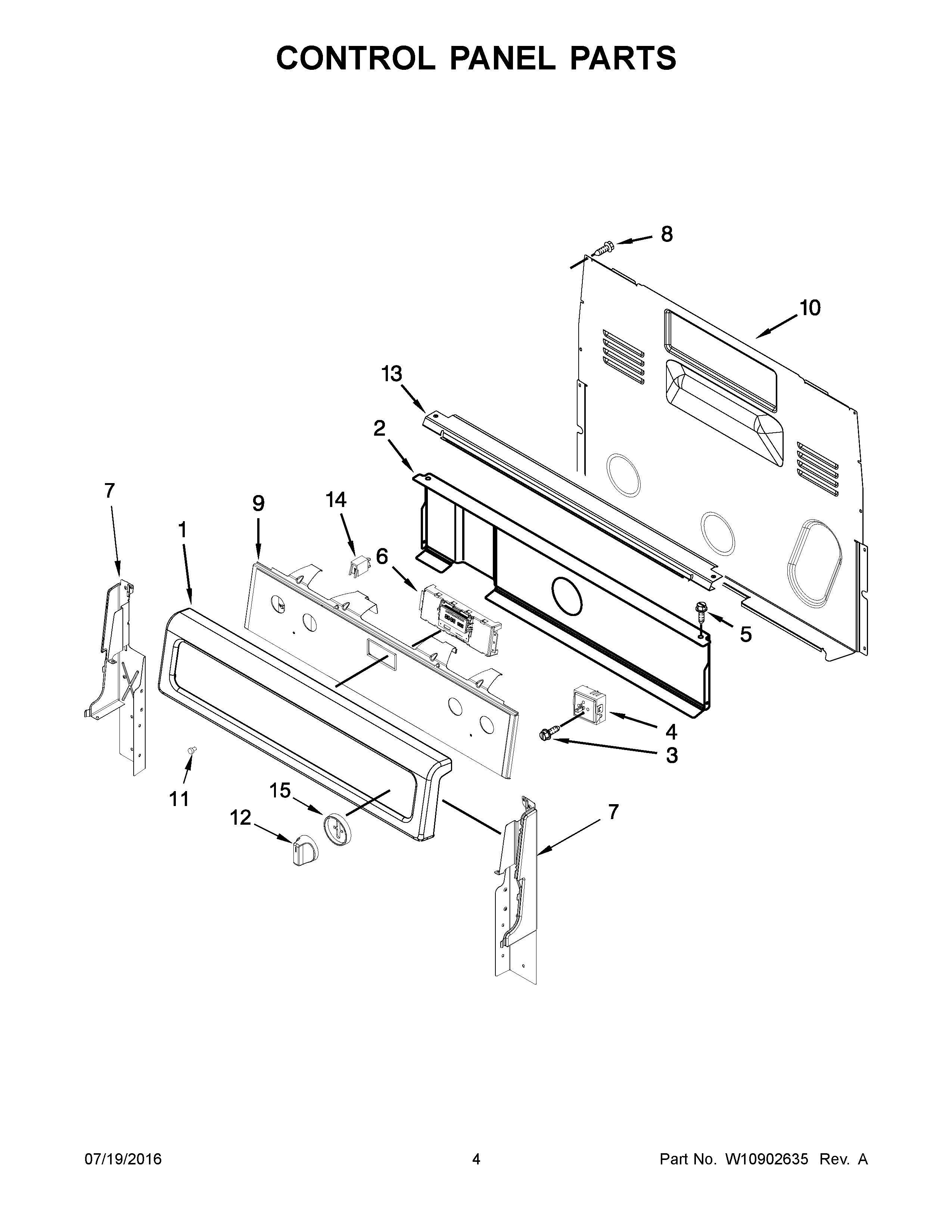

WFE770H0FZ0 03 – CONTROL PANEL PARTS
Written by
in
WFE770H0FZ0 03 – CONTROL PANEL PARTS
Products
Position
Product
1
WPW10318550 Whirlpool Control Panel
2
W10134247 Whirlpool Heat Shield
3
WP3400882 Whirlpool Screw
4B
SWITCH-INF
4A
W10917724 Whirlpool Infinite Switch
4
W11129442 Whirlpool Surface Infinite Element Switch
4C
W10911303 Whirlpool Infinite Switch
5
SCREW
6
W11308431 Whirlpool Electronic Control Board
7A
W11219665 Whirlpool Panel Endcap
7
W11219664 Whirlpool Endcap Panel
8
WP3196175 Whirlpool Screw
9
W10840425 Whirlpool Membrane Switch
10
WP8272473 Whirlpool Rear Cover
11
WP3196068 Whirlpool Light Lens
12
W11517331 Whirlpool Knob
13
W10525121 Whirlpool Control Bracket
14
WP8523265 Whirlpool Indicator Light
15
W10850042 Whirlpool Knob Bezel
←
