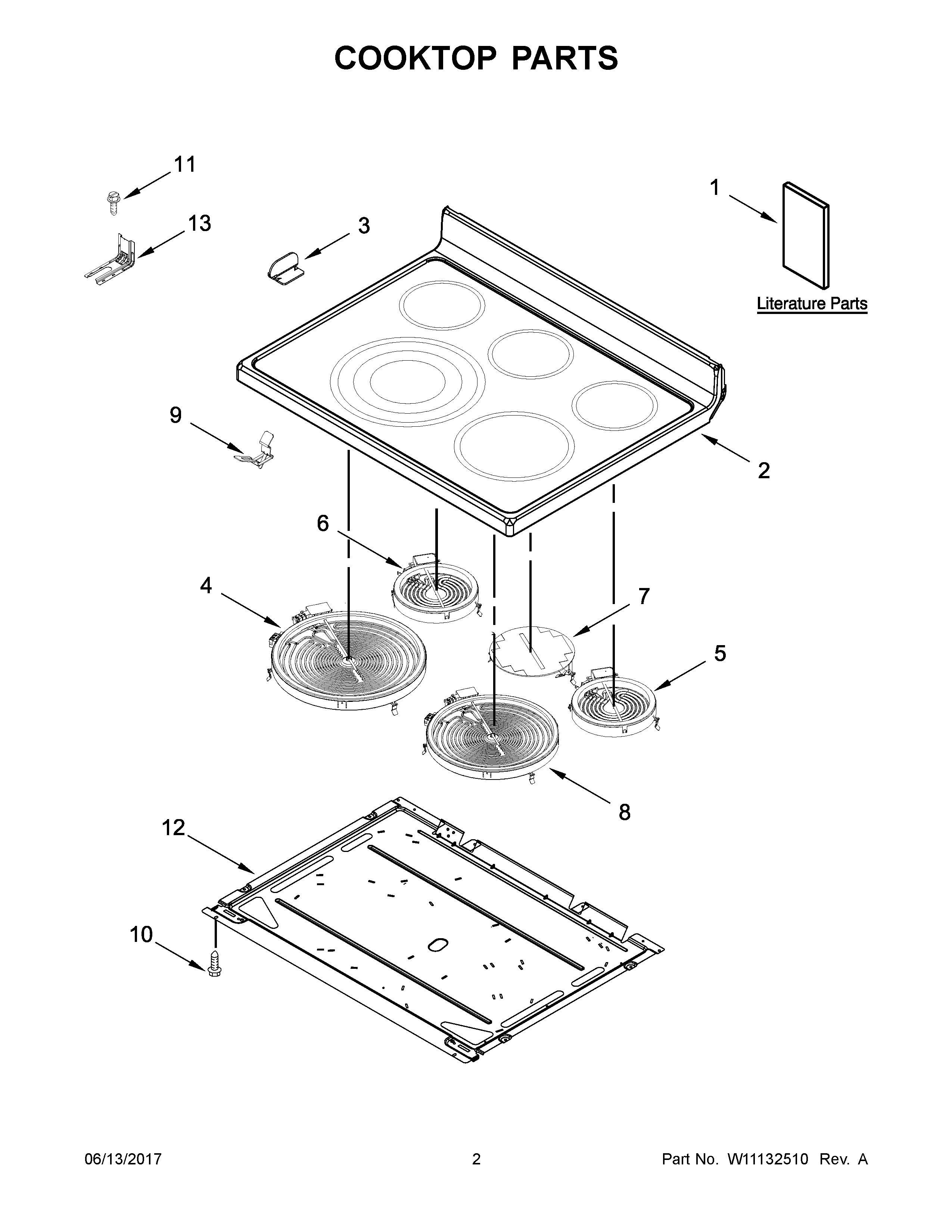

WFE770H0FZ1 02 – COOKTOP PARTS

WFE770H0FZ1 02 – COOKTOP PARTS

Written by

in

WFE770H0FZ1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10829580 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
NIW11501964 Whirlpool Wire Harness
NIWPW10281322 Whirlpool Connector
1GUIDE, USE & CARE (ENGLISH)
1DSAFER COOKING TIPS (ENGLISH
1CQUICK START GUIDE
1BINSTRUCTIONS, INSTALLATION
1ASHEET, TECH (ENGLISH)
2W10872562 Whirlpool Cooktop Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11563195 Whirlpool Surface Element
5ELMNT-SURF
6WPW10342780 Whirlpool Surface Element
7W11041453 Whirlpool Surface Element
8W11517959 Whirlpool Electric Range Radiant Surface Element
9WPW10225448 Whirlpool Spring Assembly
10WP3196175 Whirlpool Screw
11SCREW, ANTI-TIP KIT
12PAN
13W11447673 Whirlpool Range Tip Anchor
