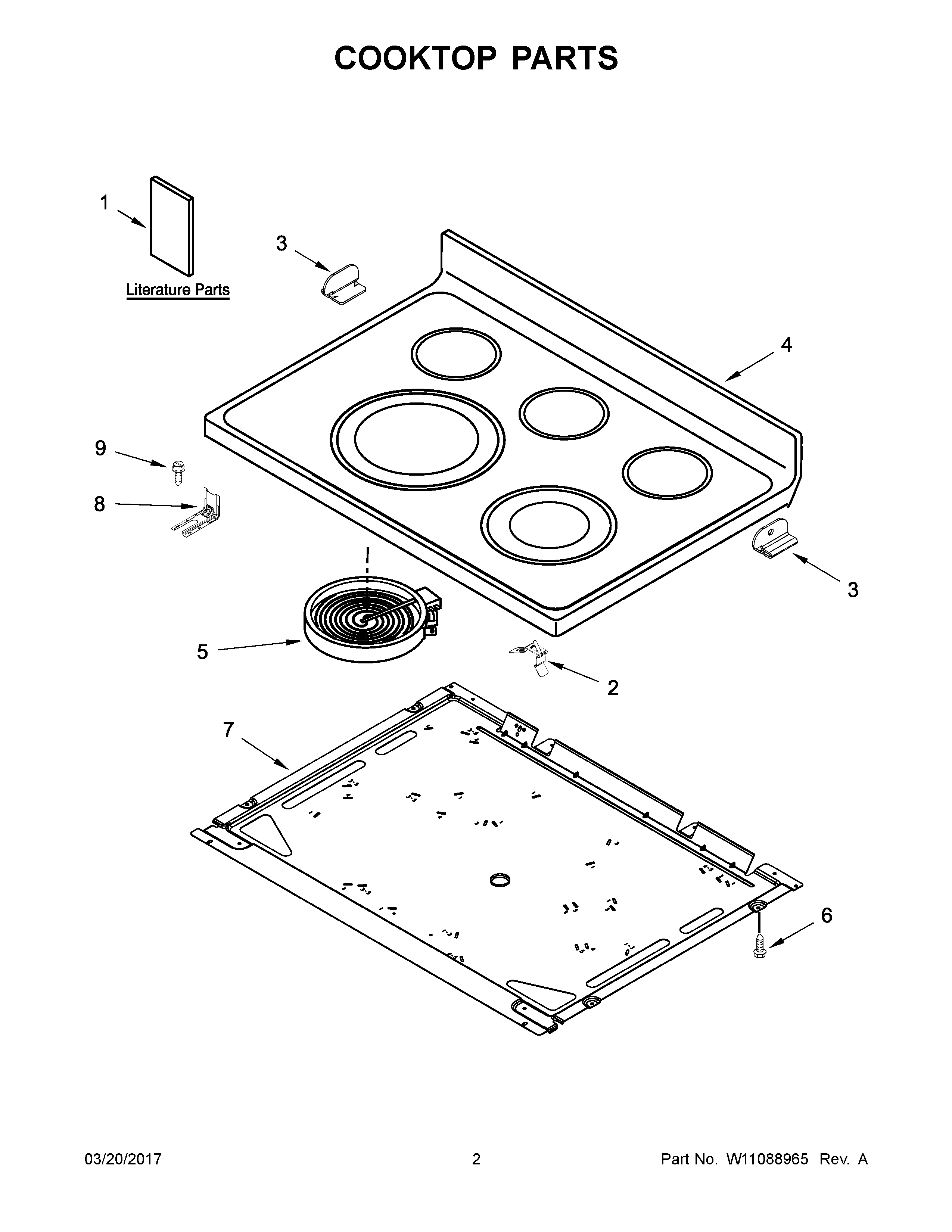

WFE775H0HB0 02 – COOKTOP PARTS

WFE775H0HB0 02 – COOKTOP PARTS

Written by

in

WFE775H0HB0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11176668 Whirlpool Wire Harness
NIW11176667 Whirlpool Wire Harness
NIW11172424 Whirlpool Wire Harness
NIHARNESS, WIRE (COOKTOP LEFT)
NIW11134592 Whirlpool Wire Harness
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
1BTECH SHEET (ENGLISH)
1CGUIDE, QUICK START (ENGLISH)
1DSAFER COOKING TIPS (ENGLISH
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4AW11129394 Whirlpool Cooktop Assembly
4W11129393 Whirlpool Cooktop Assembly
5AELMNT-SURF
5DW10823727 Whirlpool Stove Right Front Surface Element
5CW11041453 Whirlpool Surface Element
5WPW10342780 Whirlpool Surface Element
5BW11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
