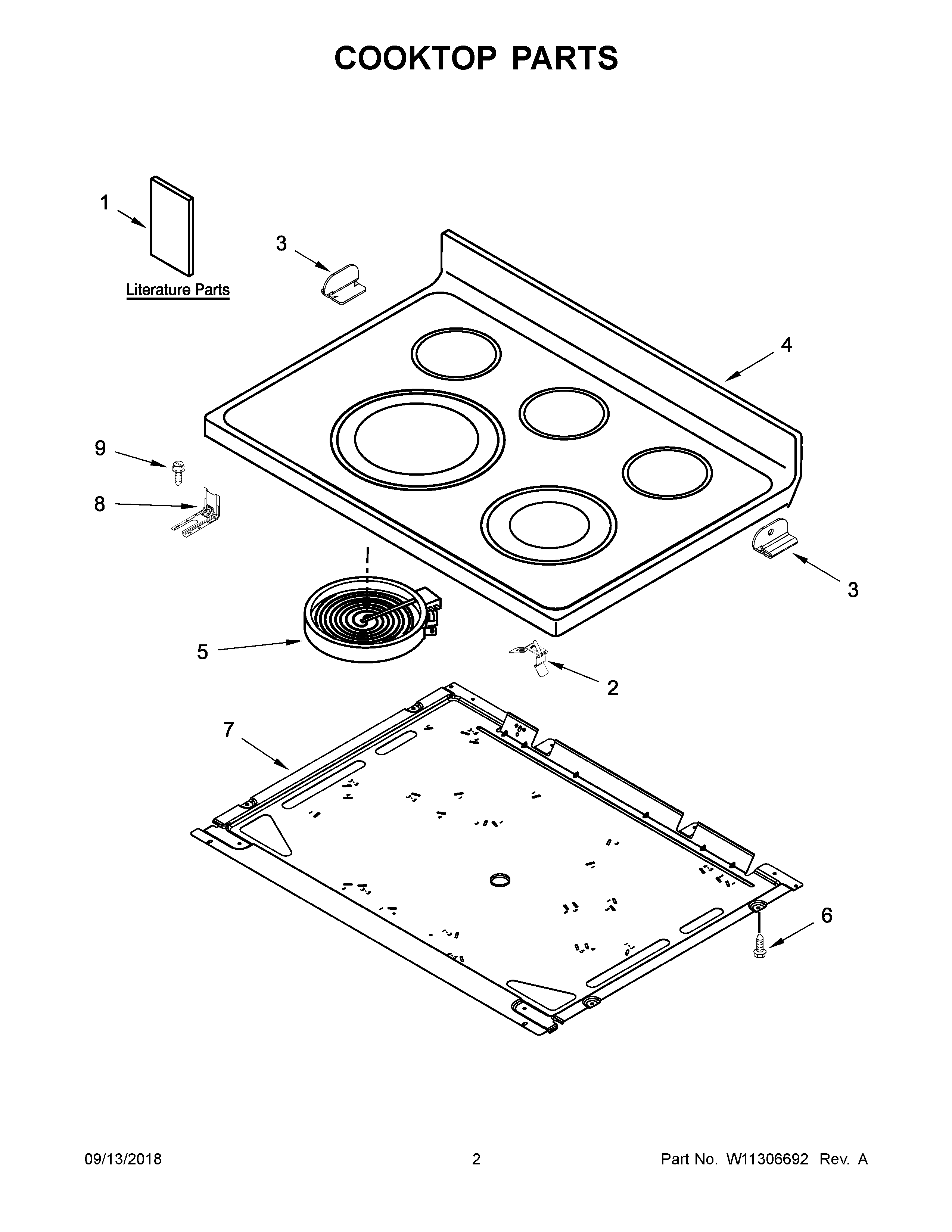

WFE775H0HB1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11176668 Whirlpool Wire Harness
NI	W11176667 Whirlpool Wire Harness
NI	W11176669 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1B	TECH SHEET (ENGLISH)
1D	WIRING DIAGRAM
1A	USE AND CARE GUIDE
1C	GUIDE, QUICK START (ENGLISH)
1E	SAFER COOKING TIPS (ENGLISH
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11129393 Whirlpool Cooktop Assembly
4A	W11129394 Whirlpool Cooktop Assembly
5A	ELMNT-SURF
5D	W10823727 Whirlpool Stove Right Front Surface Element
5C	W11041453 Whirlpool Surface Element
5	WPW10342780 Whirlpool Surface Element
5B	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
