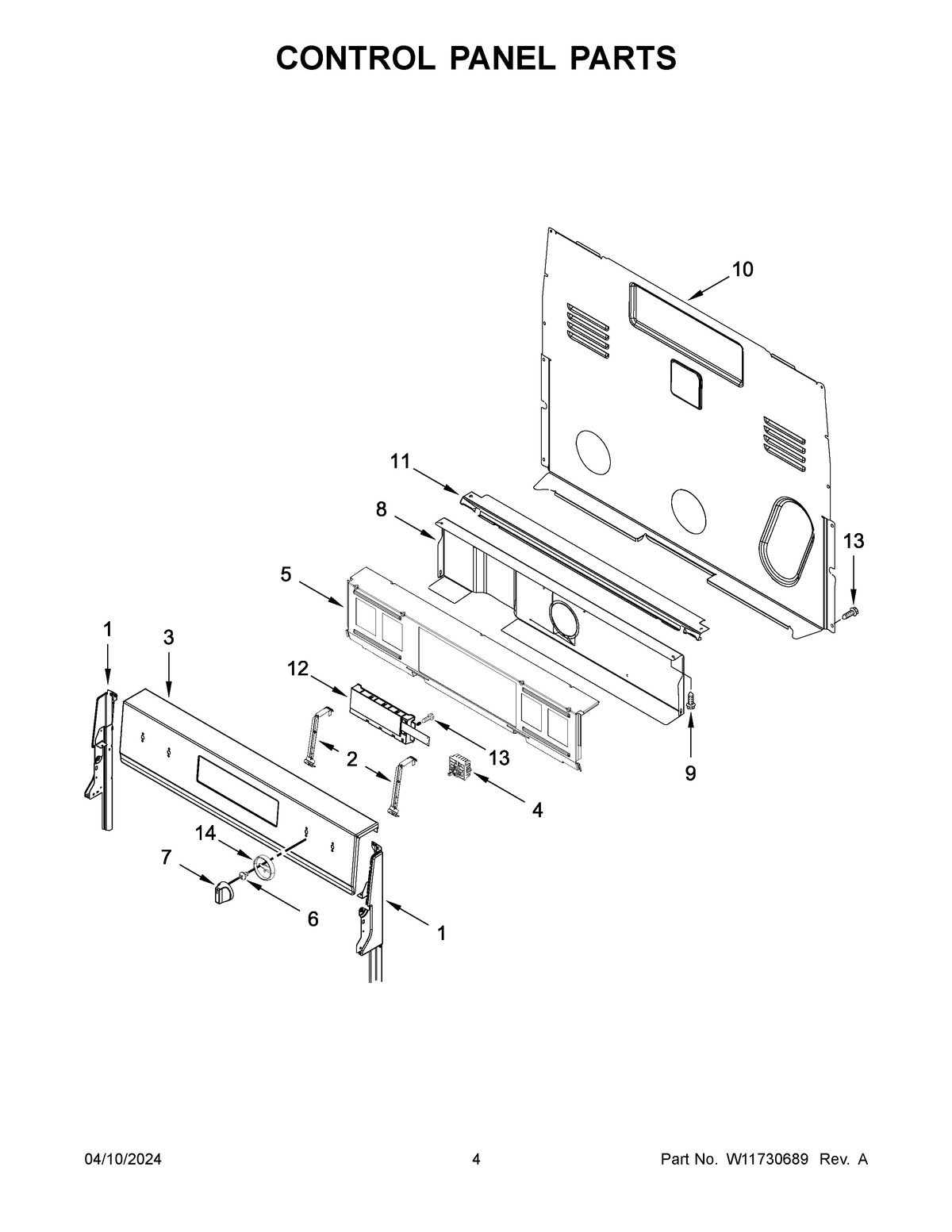

WFE775H0HB5 03 – CONTROL PANEL PARTS

WFE775H0HB5 03 – CONTROL PANEL PARTS

Written by

in

WFE775H0HB5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11213290 Whirlpool Console
1AW11213292 Whirlpool Endcap Panel
2BRACKET, CONTROL
3CONSOLE (BLACK)
4AW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4BW10917724 Whirlpool Infinite Switch
5W10901802 Whirlpool Mounting Bracket
67101P676-60 Whirlpool Screw
7W11715915 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11536793-includeCORE Whirlpool W11536793 Washer Electronic Control Board + Core
13SCREW
14W10905964 Whirlpool Switch Bezel
