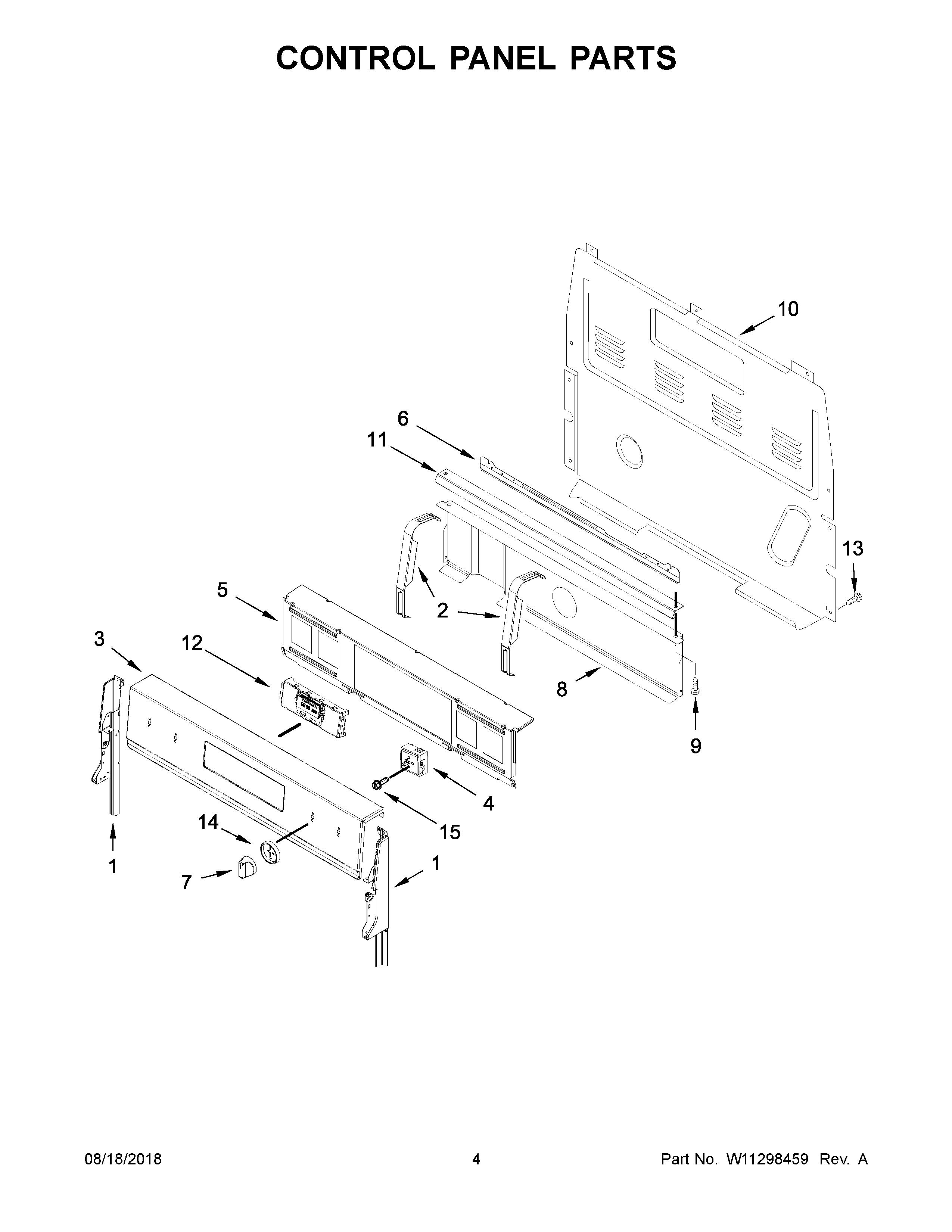

WFE775H0HV1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
2	BRACKET, CONTROL
3	W11106246 Whirlpool Control Panel
3A	W11105825 Whirlpool Control Panel
4B	W10917724 Whirlpool Infinite Switch
4	SWITCH-INF
4A	W10911303 Whirlpool Infinite Switch
5	W10901802 Whirlpool Mounting Bracket
6	W11443964 Whirlpool Support Bracket
7A	W11674369 Whirlpool Knob
7	KNOB
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11536793-includeCORE Whirlpool W11536793 Washer Electronic Control Board + Core
13	SCREW
14	W10918419 Whirlpool Switch Bezel
14A	BEZEL (BLACK STAINLESS)
15	7101P676-60 Whirlpool Screw
