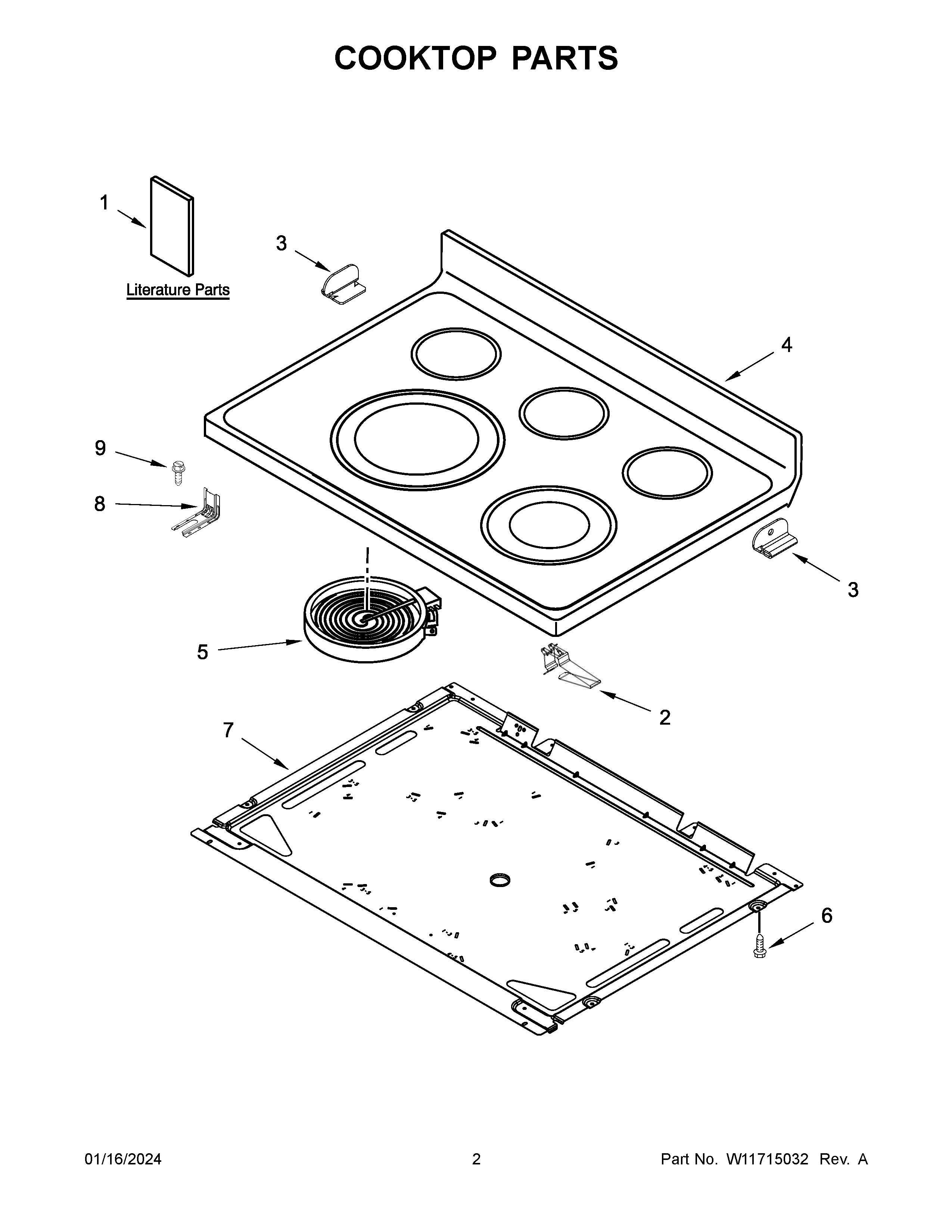

WFE775H0HV5 02 – COOKTOP PARTS

Products

PositionProduct
NIW11451584 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11176669 Whirlpool Wire Harness
NIW11176668 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
1GUIDE, QUICK START (ENGLISH AND FRENCH)
1AOWNER'S MANUAL
1BTECH SHEET
1CWIRING DIAGRAM
2W11663556 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11129393 Whirlpool Cooktop Assembly
5CW11041453 Whirlpool Surface Element
5WPW10342780 Whirlpool Surface Element
5DW10823727 Whirlpool Stove Right Front Surface Element
5BW11517959 Whirlpool Electric Range Radiant Surface Element
5AELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
