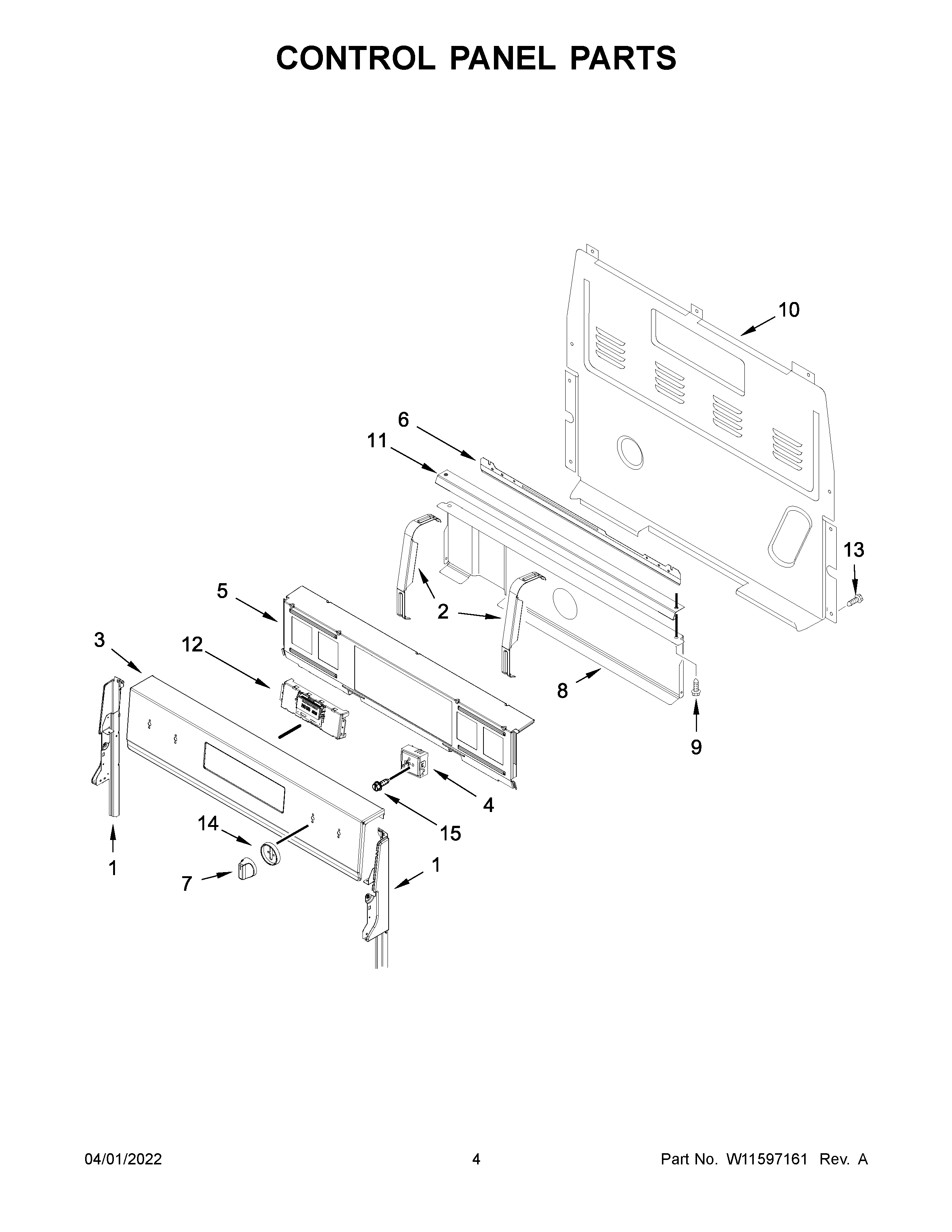

WFE775H0HW4 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP (WHITE (LEFT))
1C	W11259700 Whirlpool Panel End Cap
1B	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
2	BRACKET, CONTROL
3A	W11105827 Whirlpool Control Panel
3	CONSOLE (BLACK)
4B	W10917724 Whirlpool Infinite Switch
4	SWITCH-INF
4A	W10911303 Whirlpool Infinite Switch
5	W10901802 Whirlpool Mounting Bracket
6A	BRACKET, EYE BROW (WHITE)
6	W11443964 Whirlpool Support Bracket
7A	KNOB
7	W11715915 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11536793-includeCORE Whirlpool W11536793 Washer Electronic Control Board + Core
13	SCREW
14	W10905964 Whirlpool Switch Bezel
14A	W10912200 Whirlpool Switch Bezel
15	7101P676-60 Whirlpool Screw
