WFE775H0HZ5 03 – CONTROL PANEL PARTS

WFE775H0HZ5 03 – CONTROL PANEL PARTS

Written by

in

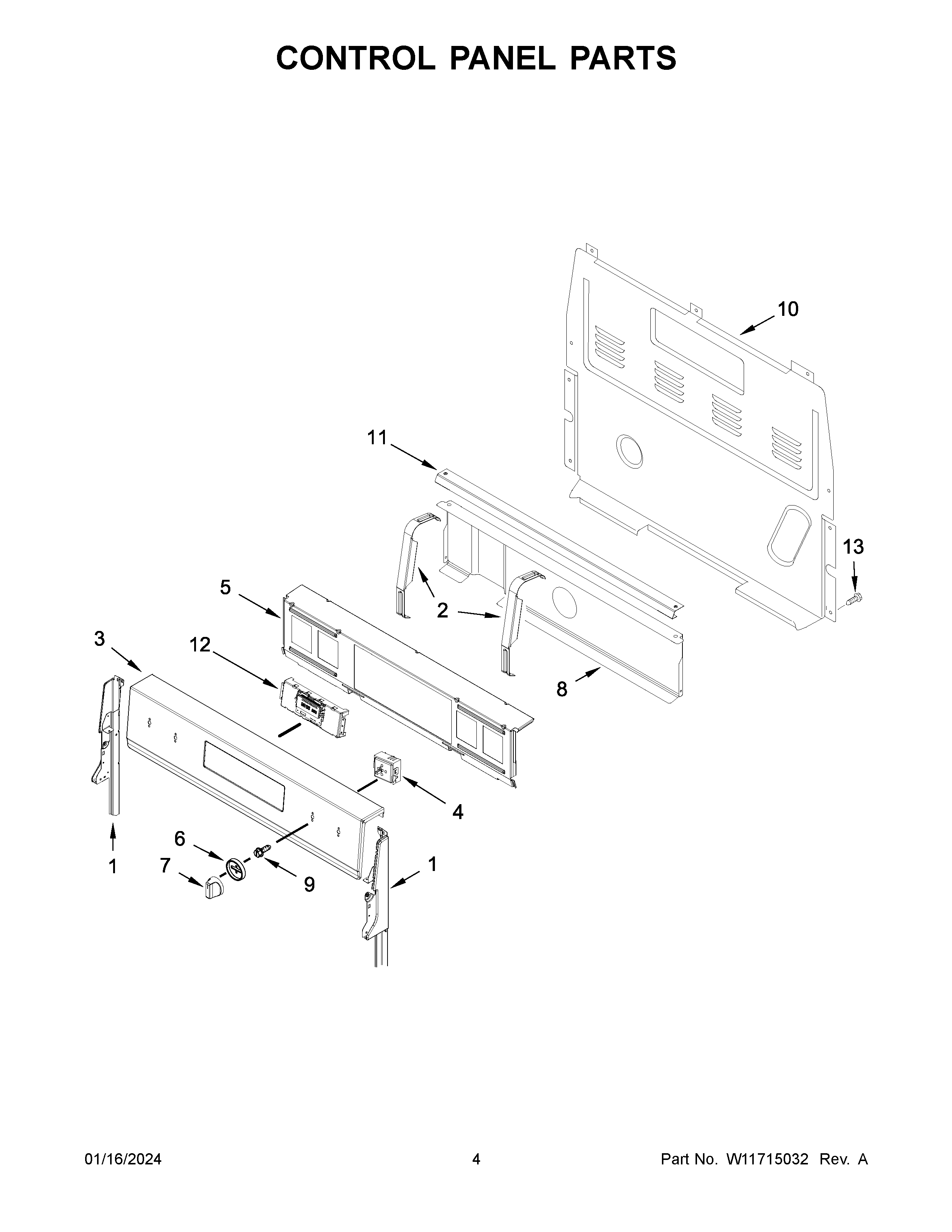

WFE775H0HZ5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2BRACKET, CONTROL
3W11106246 Whirlpool Control Panel
3AW11105825 Whirlpool Control Panel
4SWITCH-INF
4AW10911303 Whirlpool Infinite Switch
4BW10917724 Whirlpool Infinite Switch
5W10901802 Whirlpool Mounting Bracket
6ABEZEL (BLACK STAINLESS)
6W10918419 Whirlpool Switch Bezel
7AW11674369 Whirlpool Knob
7KNOB
8W10134247 Whirlpool Heat Shield
97101P676-60 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11536793-includeCORE Whirlpool W11536793 Washer Electronic Control Board + Core
13SCREW
