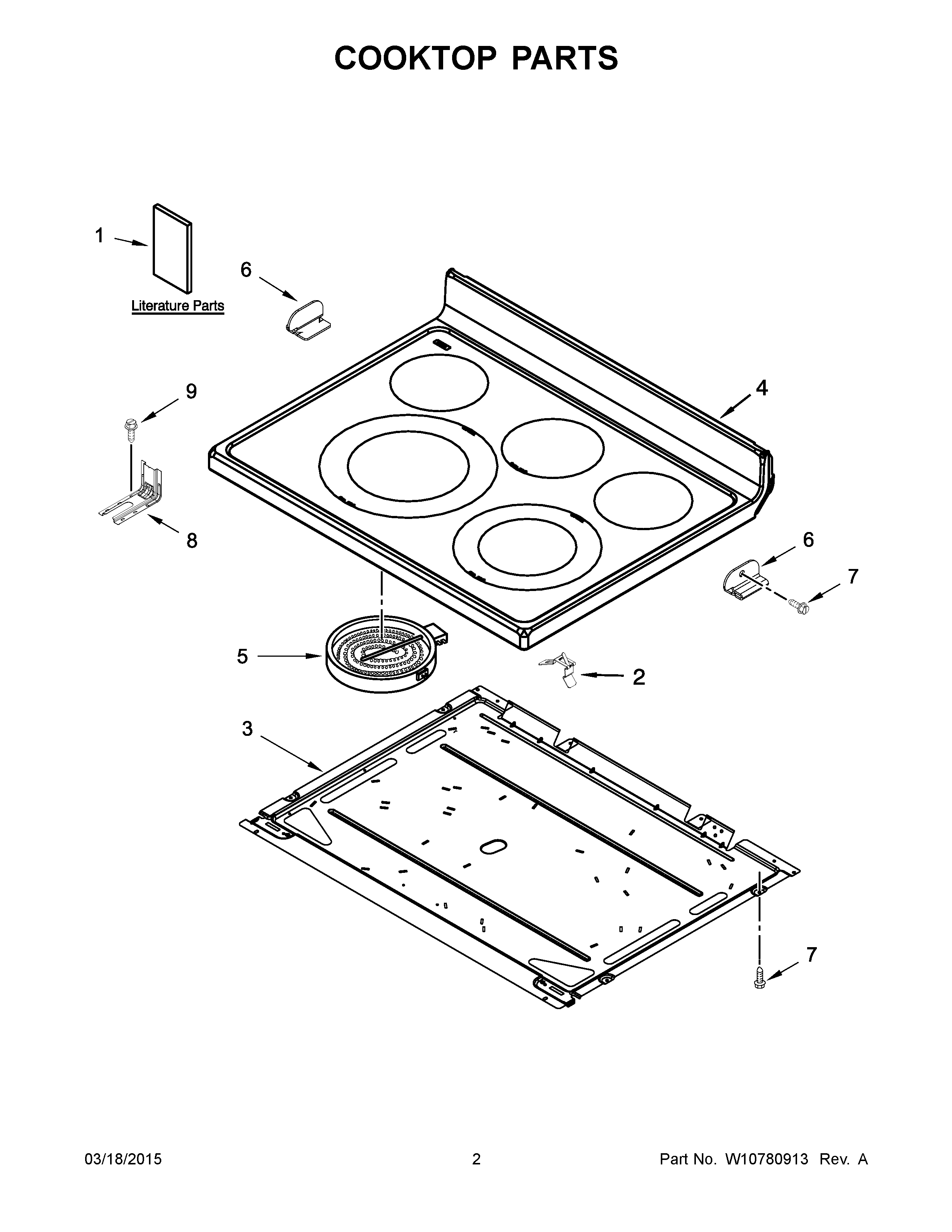

WFE905C0ES0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	W10349734 Whirlpool Wire Harness
NI	W10183541 Whirlpool Clip Assembly
NI	Harness, Wire (Sensor/Dr Switch)
NI	W11134592 Whirlpool Wire Harness
NI	W11134550 Whirlpool Wire Harness
NI	W10465644 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1	INSTRUCTIONS, INSTALLATION
1C	TECH SHEET
1B	SAFER COOKING TIPS (ENGLISH
1A	USE AND CARE GUIDE
2	WPW10225448 Whirlpool Spring Assembly
3	PAN
4	COOKTOP (BLACK)
5B	ELMNT-SURF
5	WPW10162041 Whirlpool Surface Element
5C	WPW10342780 Whirlpool Surface Element
5D	W11047668 Whirlpool Surface Element
5A	W10705791 Whirlpool Surface Element
6A	W10607642 Whirlpool Clip
6	W10607641 Whirlpool Clip
7	WP3196557 Whirlpool Screw
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
