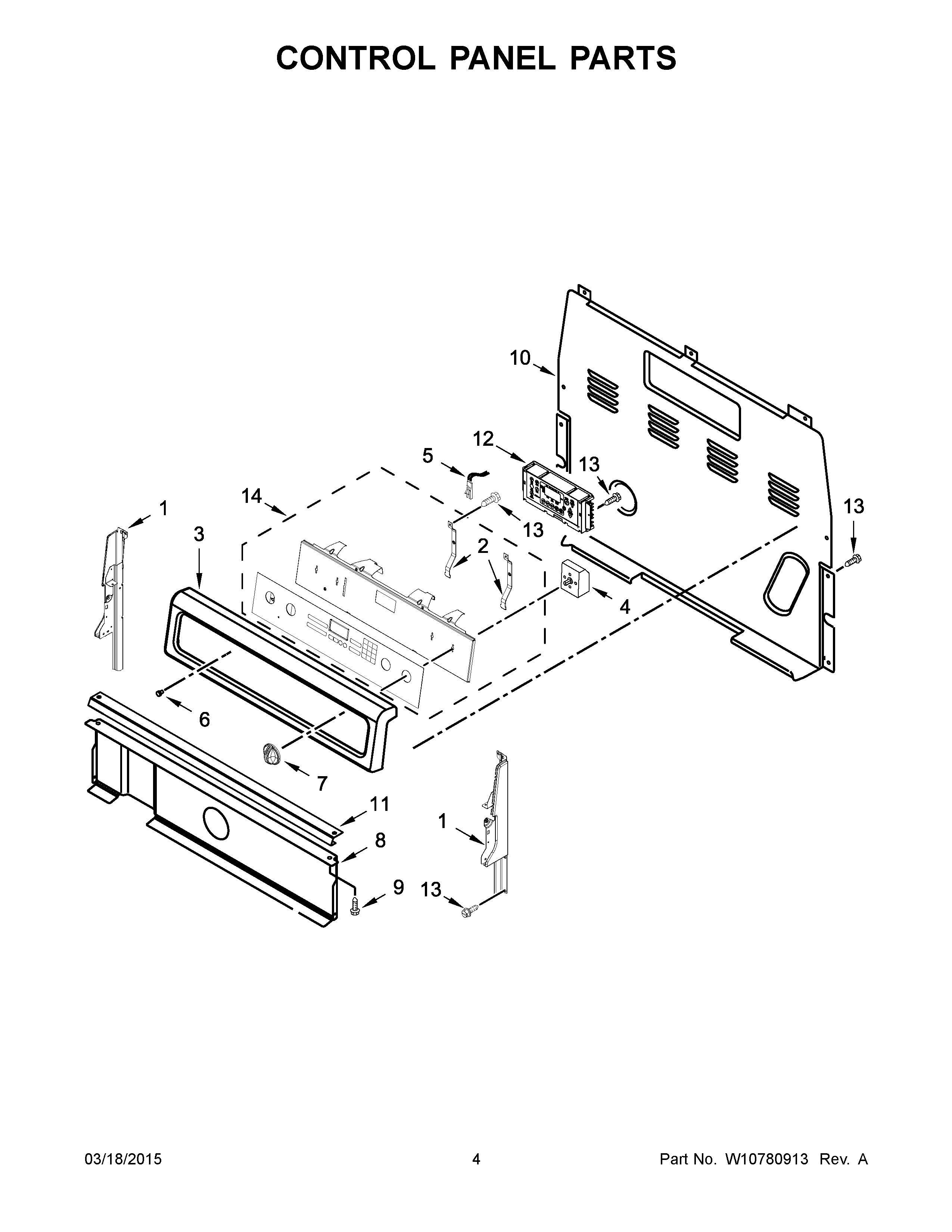

WFE905C0ES0 03 – CONTROL PANEL PARTS

WFE905C0ES0 03 – CONTROL PANEL PARTS

Written by

in

WFE905C0ES0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2BRACKET, CONTROL
3WPW10318550 Whirlpool Control Panel
4WPW10391743 Whirlpool Infinite Switch
4AWPW10411934 Whirlpool Infinite Switch
4BWP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10720680 Whirlpool Chrome Knob
8W10134247 Whirlpool Heat Shield
9WP3196557 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10705788 Whirlpool Electronic Control Board + Core
13SCREW
14W10705602 Whirlpool Membrane Switch
