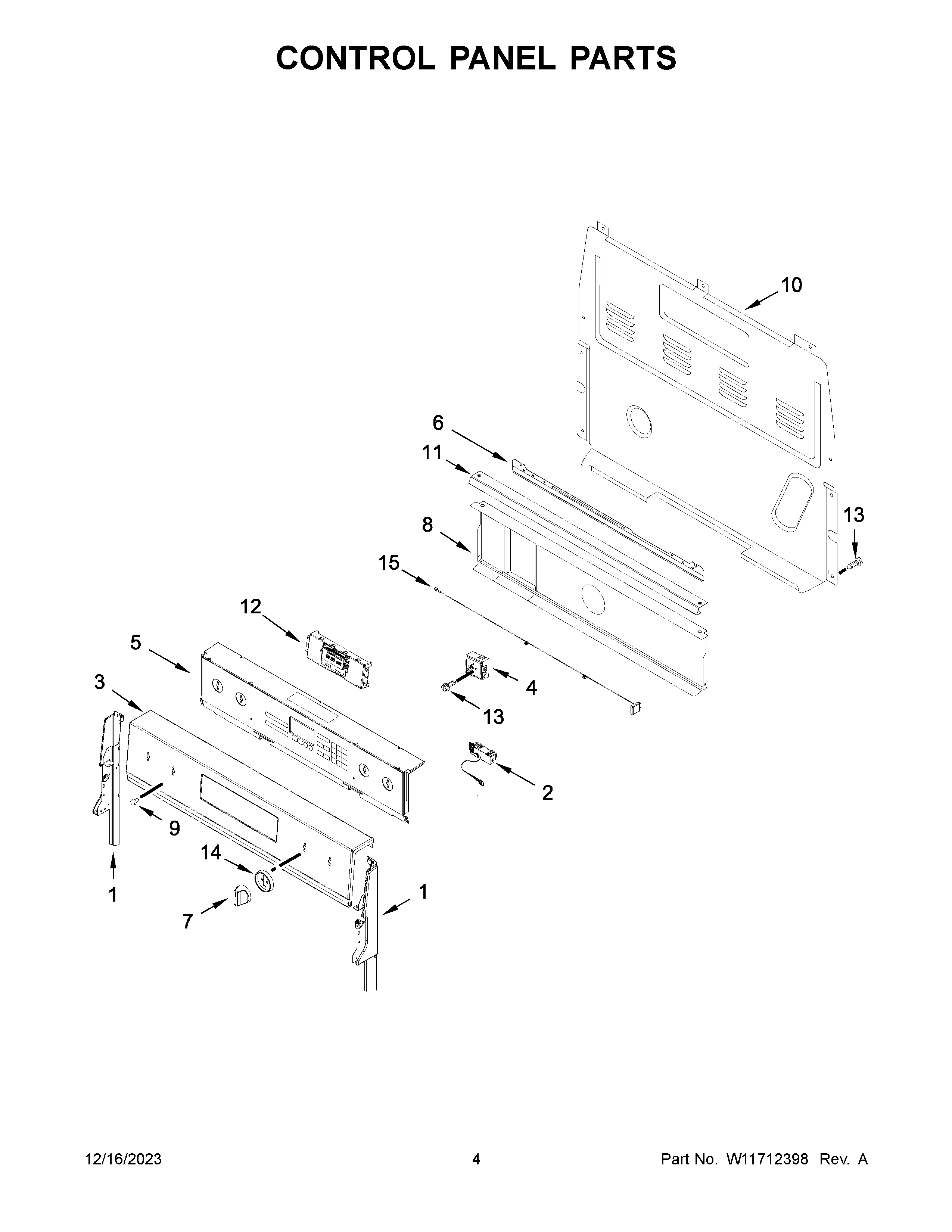

WFE975H0HV5 03 – CONTROL PANEL PARTS

WFE975H0HV5 03 – CONTROL PANEL PARTS

Written by

in

WFE975H0HV5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11213290 Whirlpool Console
1AW11213292 Whirlpool Endcap Panel
2W11165979 Whirlpool Electronic Control Board
3AW11165616 Whirlpool Control Panel
3W11165617 Whirlpool Control Panel
4BW10911303 Whirlpool Infinite Switch
4ASWITCH-INF
4CW10917724 Whirlpool Infinite Switch
4W11129442 Whirlpool Surface Infinite Element Switch
5SWTCH-MEMB
6W11443964 Whirlpool Support Bracket
7AW11674369 Whirlpool Knob
7KNOB
8W10134247 Whirlpool Heat Shield
9WP3196068 Whirlpool Light Lens
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11165552-includeCORE Whirlpool W11165552 Refrigerator Electronic Control Board + Core
13SCREW
14ABEZEL (BLACK STAINLESS)
14W10918419 Whirlpool Switch Bezel
15ANTENNA
