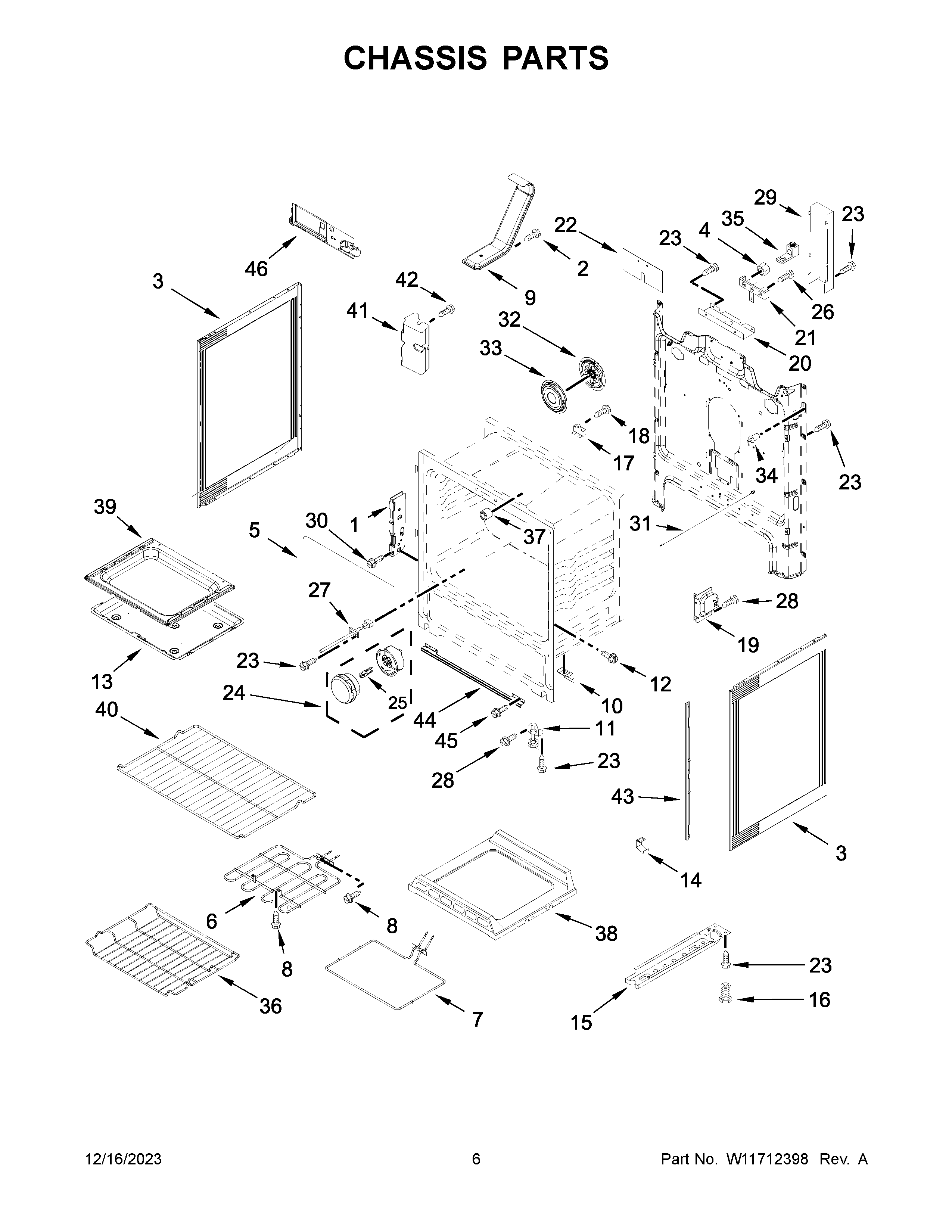

WFE975H0HV5 04 – CHASSIS PARTS

WFE975H0HV5 04 – CHASSIS PARTS

Written by

in

WFE975H0HV5 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10194393 Whirlpool Insulation
NI	WPW10225524 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	INSULATION, STRAP
NI	WPW10225523 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WP3196175 Whirlpool Screw
3	W11730303 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11562931 Whirlpool Door Gasket
6	W11321472 Whirlpool Broil Element
7	W10779716 Whirlpool Oven Bake Element
9	WPW10134285 Whirlpool Vent Tube
10	W10035900 Whirlpool Support Bracket
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	W11379357 Whirlpool Overflow Pan
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10273002 Whirlpool Support Bracket
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	W10655441 Whirlpool Insulation Wire
23	SCREW
24	W11707255 Whirlpool Light
25	BULB-LIGHT
26	WP3400016 Whirlpool Screw Assembly
27	SENSOR-RANGE
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	W11370463 Whirlpool Door Rod Assembly
32	W10903746 Whirlpool Convection Fan
33	WPW10346154 Whirlpool Cover Assembly
34	SWTCH-LITE
35	WPW10281322 Whirlpool Connector
36	WPW10289145 Whirlpool Oven Rack
37	W10877054 Whirlpool Spacer Assembly
38	W10726740 Whirlpool Heat Shield
39	W10777210 Whirlpool Oven Bottom
40	WPW10531060 Whirlpool Oven Rack
41	W11135752 Whirlpool Anchor Tip
42	W11135756 Whirlpool Screw Torx
43	W11594227 Whirlpool Rail Mounting
44	BRACKET, FRONT FRAME
45	W11169708 Whirlpool Screw
46	W11111702 Whirlpool Electronic Control Board
