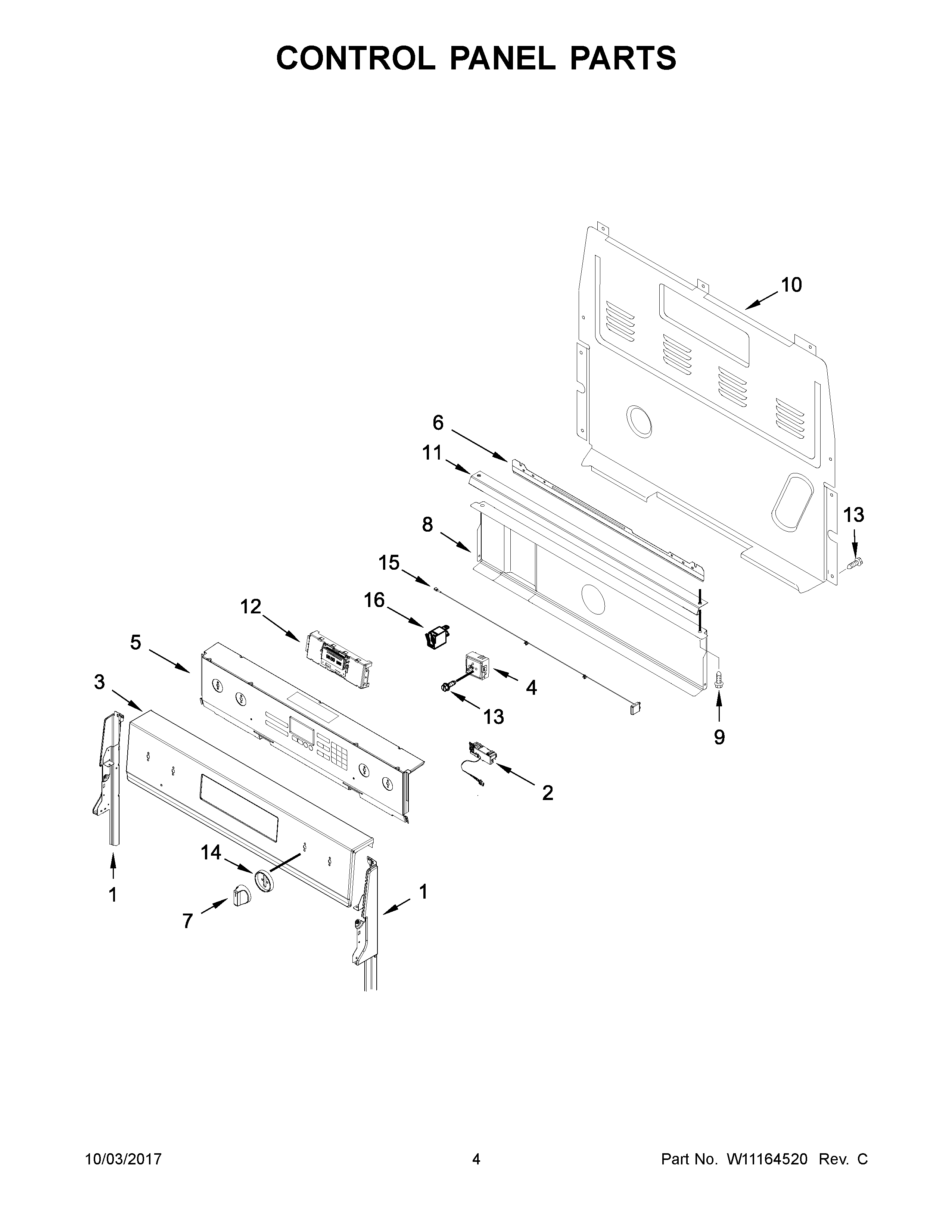

WFE975H0HZ0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
2	W11165979 Whirlpool Electronic Control Board
3A	W11165616 Whirlpool Control Panel
3	W11165617 Whirlpool Control Panel
4B	W10911303 Whirlpool Infinite Switch
4A	SWITCH-INF
4C	W10917724 Whirlpool Infinite Switch
4	W11129442 Whirlpool Surface Infinite Element Switch
5	W11178664 Whirlpool Control Panel
6	W11443964 Whirlpool Support Bracket
7	KNOB
7A	W11674369 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11165552-includeCORE Whirlpool W11165552 Refrigerator Electronic Control Board + Core
13	SCREW
14	W10918419 Whirlpool Switch Bezel
14A	BEZEL (BLACK STAINLESS)
15	W11113849 Whirlpool Antenna
16	WP8523265 Whirlpool Indicator Light
