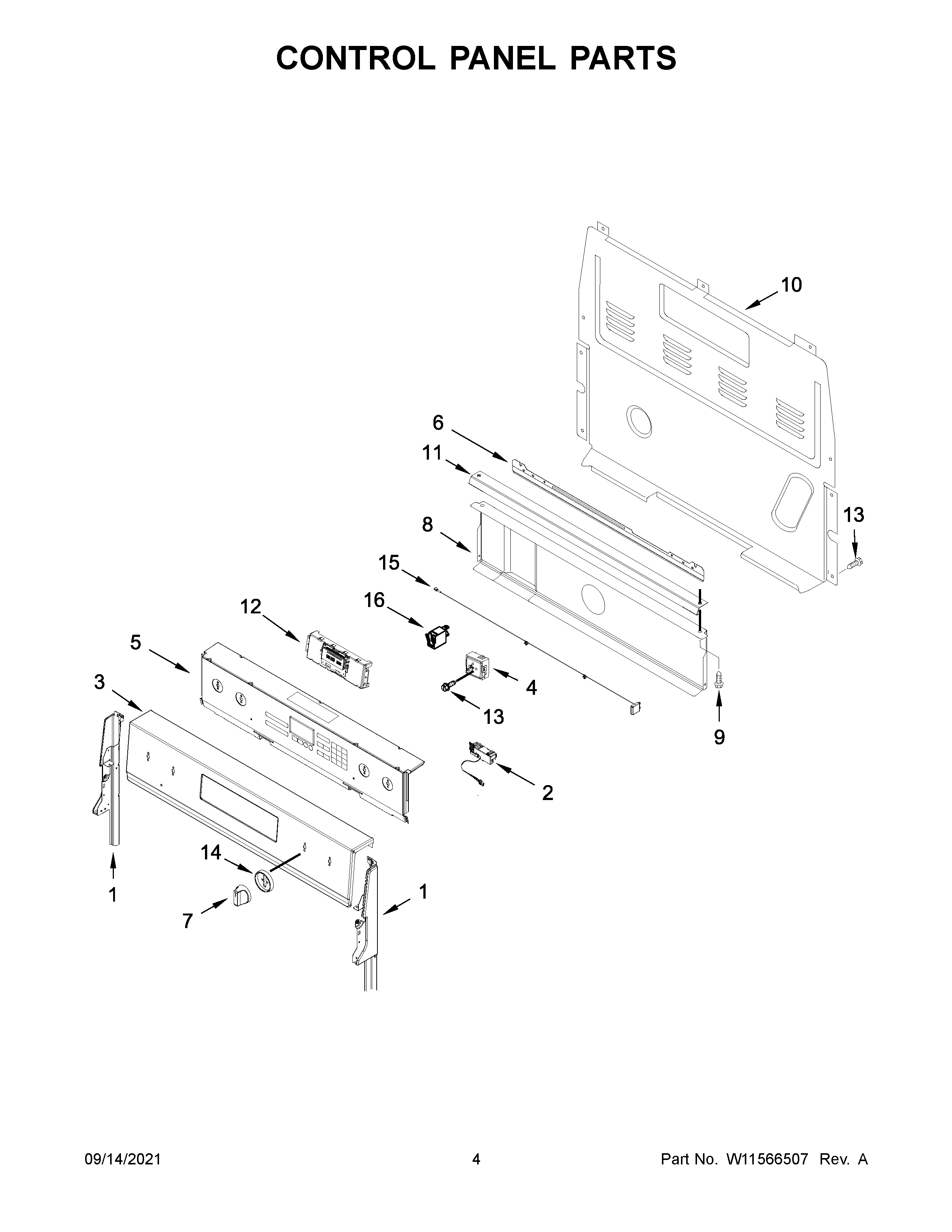

WFE975H0HZ2 03 – CONTROL PANEL PARTS

WFE975H0HZ2 03 – CONTROL PANEL PARTS

Written by

in

WFE975H0HZ2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2W11165979 Whirlpool Electronic Control Board
3W11165617 Whirlpool Control Panel
3AW11165616 Whirlpool Control Panel
4BW10911303 Whirlpool Infinite Switch
4ASWITCH-INF
4CW10917724 Whirlpool Infinite Switch
4W11129442 Whirlpool Surface Infinite Element Switch
5W11178664 Whirlpool Control Panel
6W11443964 Whirlpool Support Bracket
7AW11674369 Whirlpool Knob
7KNOB
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11165552-includeCORE Whirlpool W11165552 Refrigerator Electronic Control Board + Core
13SCREW
14W10918419 Whirlpool Switch Bezel
14ABEZEL (BLACK STAINLESS)
15ANTENNA
16WP8523265 Whirlpool Indicator Light
