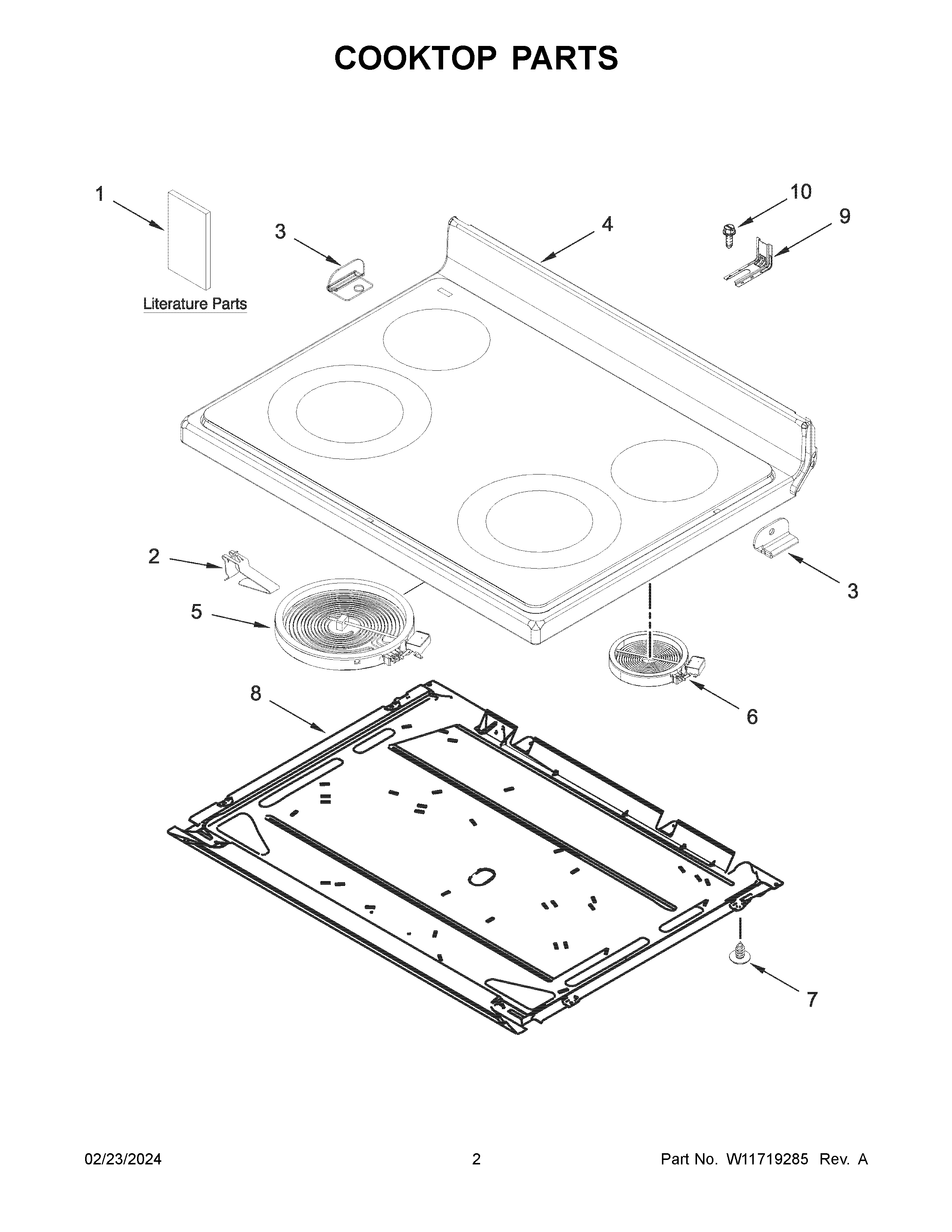

WFES3030RB0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11696065 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11675846 Whirlpool Wire Harness
NI	W11134845 Whirlpool Wire Harness
1B	TECH SHEET
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W11663556 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11719704 Whirlpool Cooktop
4A	W11714298 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	WP3196557 Whirlpool Screw
8	PAN
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
