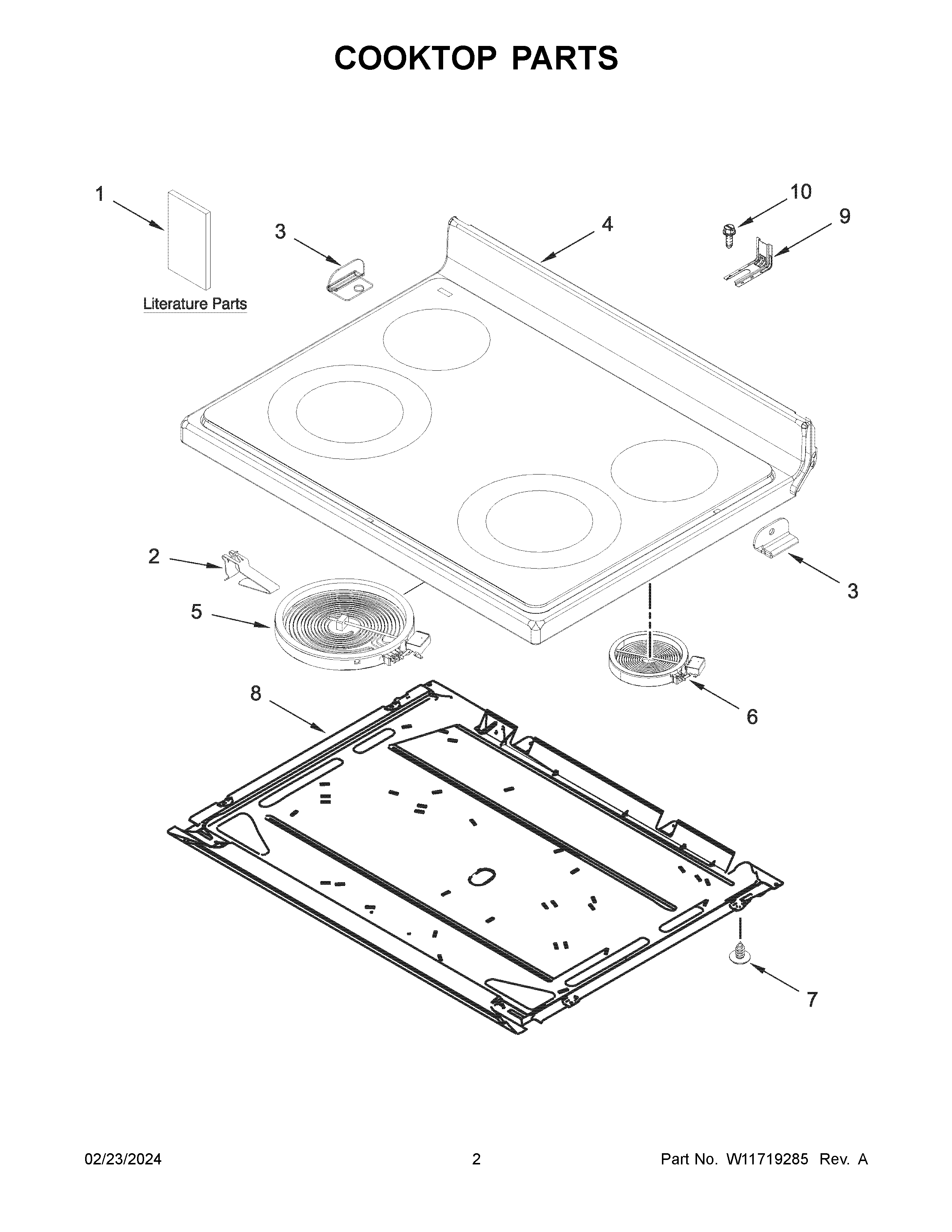

WFES3030RW0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11696065 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11675846 Whirlpool Wire Harness
NIW11134845 Whirlpool Wire Harness
1BTECH SHEET
1OWNERS MANUAL
1AQUICK START GUIDE
2W11663556 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W11719704 Whirlpool Cooktop
4AW11714298 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7WP3196557 Whirlpool Screw
8PAN
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
