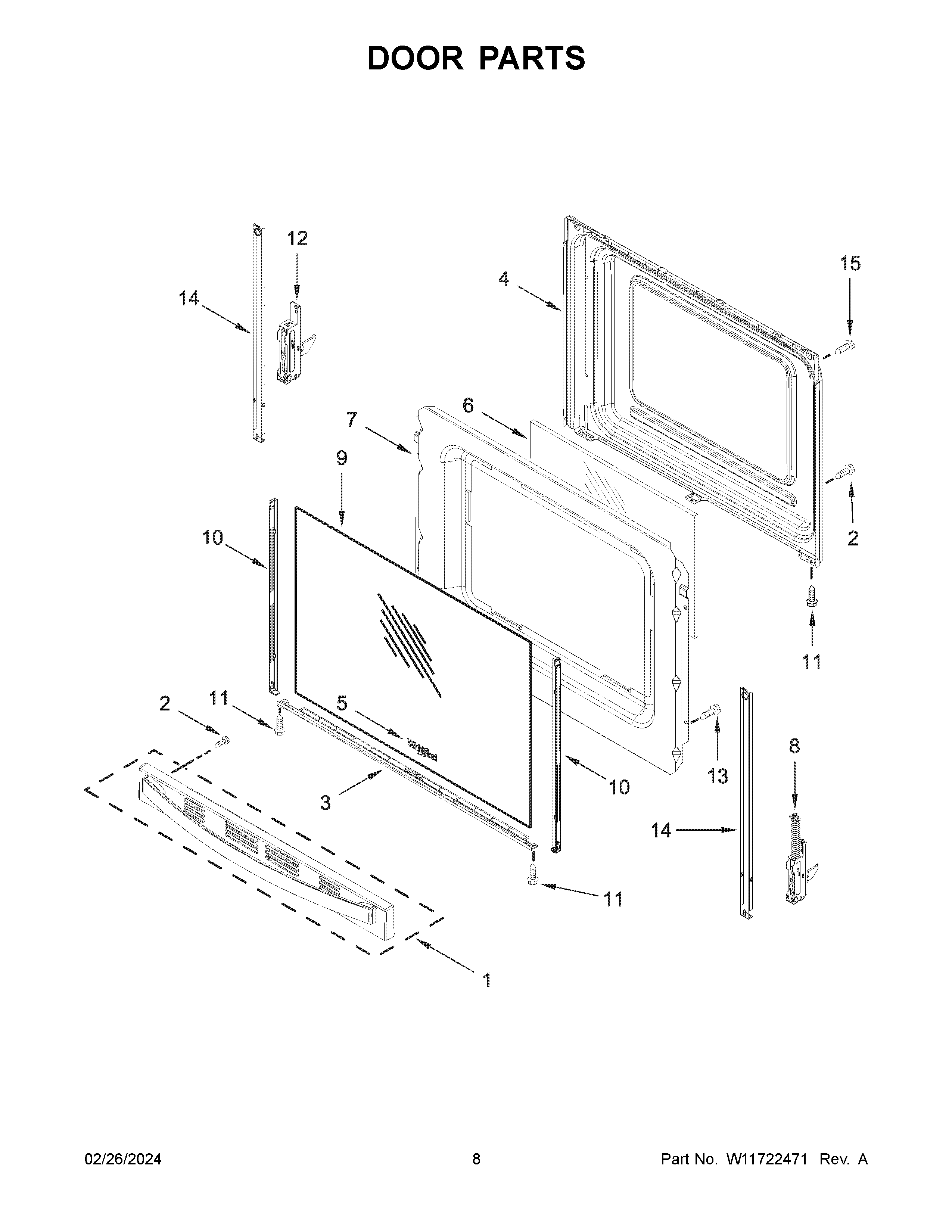

WFES3330RB0 05 – DOOR PARTS

Products

Position	Product
1	HANDLE AND VENT ASSEMBLY (BLACK)
1A	HNDLE-DOOR
2	W10896982 Whirlpool Compactor Screw
3A	W11594186 Whirlpool Door Trim
3	W11569689 Whirlpool Door Trim
4	WP9761344 Whirlpool Door Liner
5	W11178521 Whirlpool Dishwasher Nameplate
6	W11399628 Whirlpool Door Glass
7	W11685635 Whirlpool Retainer
8	WPW10299225 Whirlpool Door Hinge
9A	GLASS-DOOR
9	GLASS-DOOR
10C	WP8523166 Whirlpool Door Trim
10	W10761018 Whirlpool Dishwasher Left Door Trim
10A	W10761014 Whirlpool Right Door Trim
10B	WP8523172 Whirlpool Left Door Trim
11	WP355214 Whirlpool Screw
12	WPW10299227 Whirlpool Range Door Hinge
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
