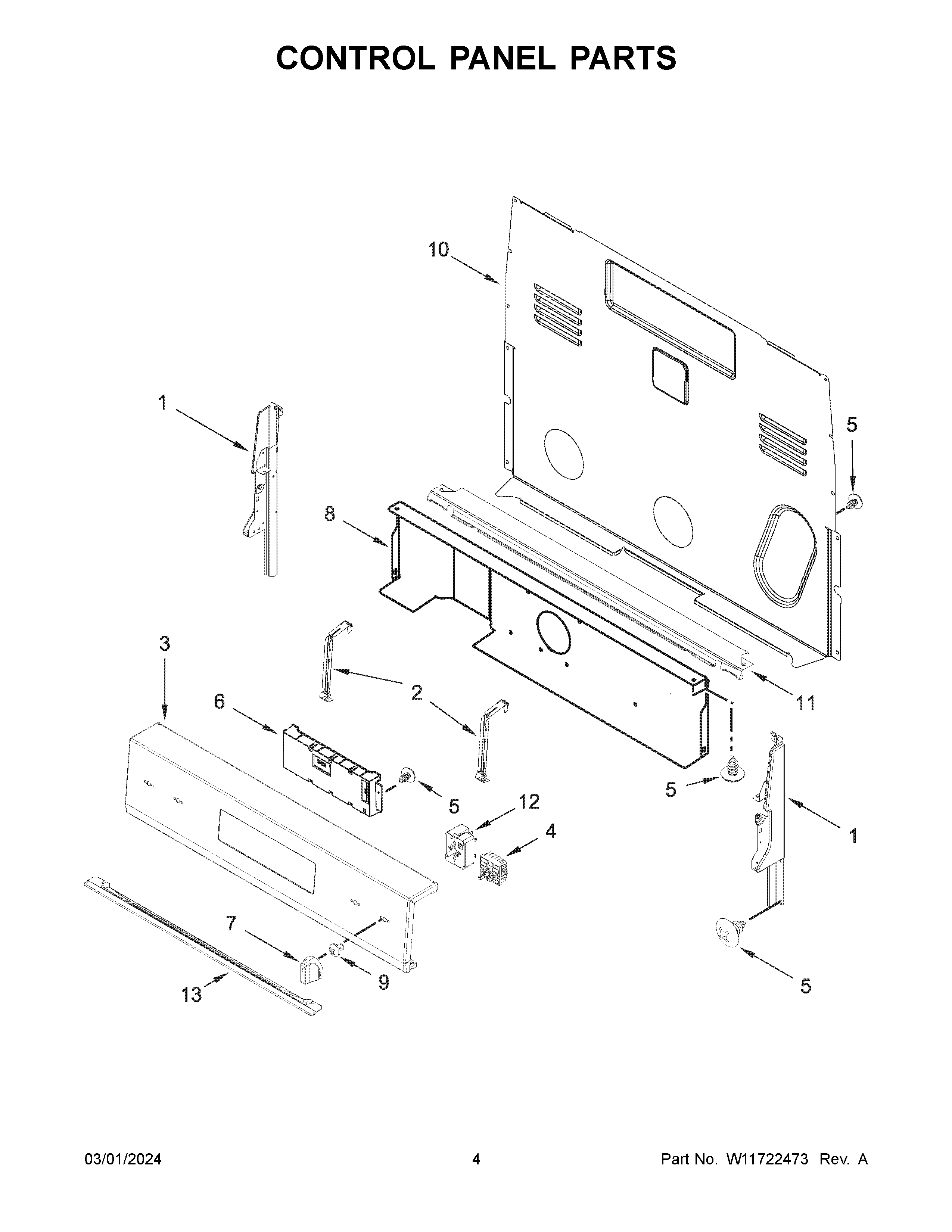

WFES3330RV0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11213290 Whirlpool Console
1A	W11213292 Whirlpool Endcap Panel
2	BRACKET, CONTROL
3A	W11707152 Whirlpool Control Panel
3	CONSOLE, ASSEMBLY (BLACK STAINLESS)
4	SWITCH-INF
5	SCREW
6	W11707155-includeCORE Whirlpool W11707155 Dishwasher Electronic Control Core
7	KNOB
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W10911303 Whirlpool Infinite Switch
13	W11443964 Whirlpool Support Bracket
