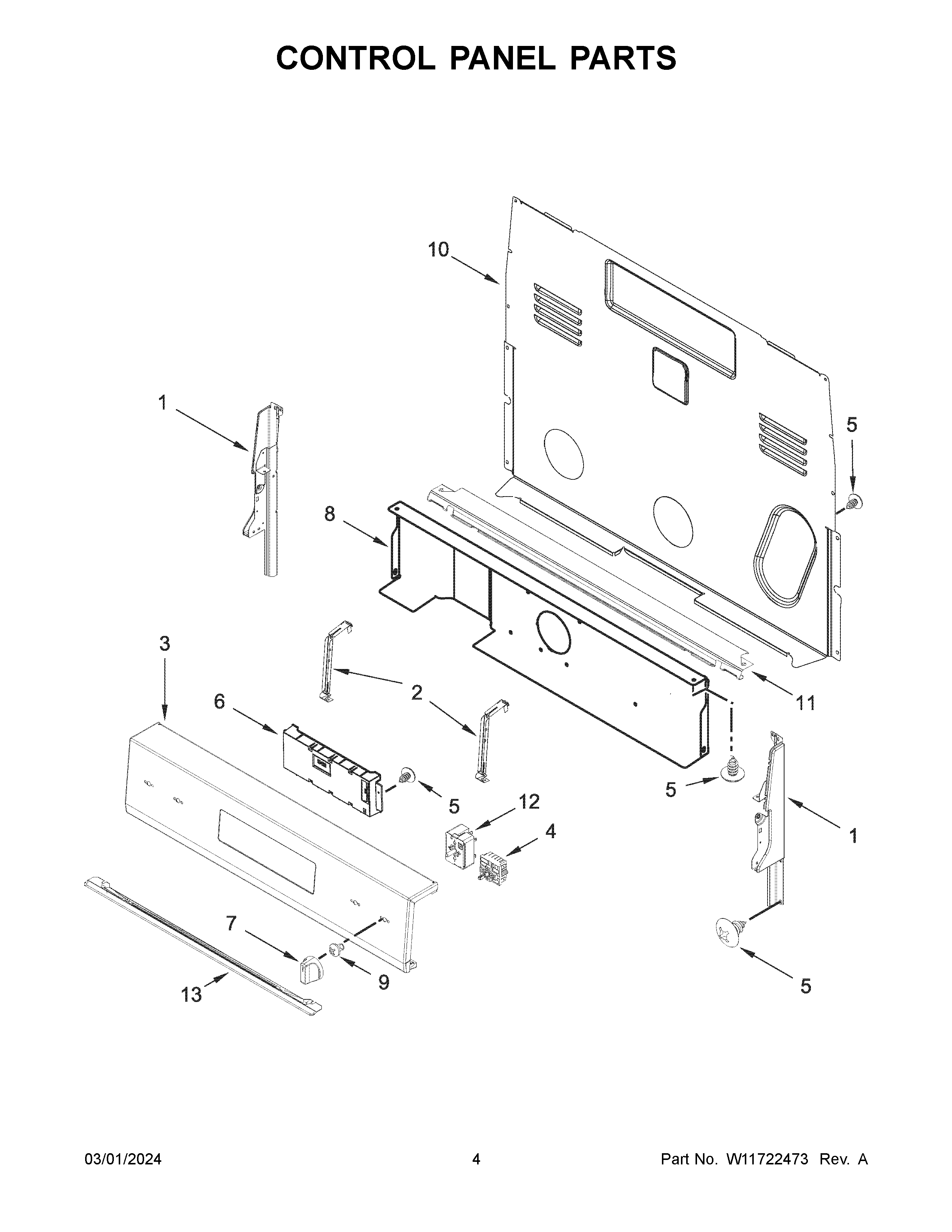

WFES3330RZ0 03 – CONTROL PANEL PARTS

WFES3330RZ0 03 – CONTROL PANEL PARTS

Written by

in

WFES3330RZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11213290 Whirlpool Console
1AW11213292 Whirlpool Endcap Panel
2BRACKET, CONTROL
3AW11707152 Whirlpool Control Panel
3CONSOLE, ASSEMBLY (BLACK STAINLESS)
4SWITCH-INF
5SCREW
6W11707155-includeCORE Whirlpool W11707155 Dishwasher Electronic Control Core
7KNOB
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W10911303 Whirlpool Infinite Switch
13W11443964 Whirlpool Support Bracket
