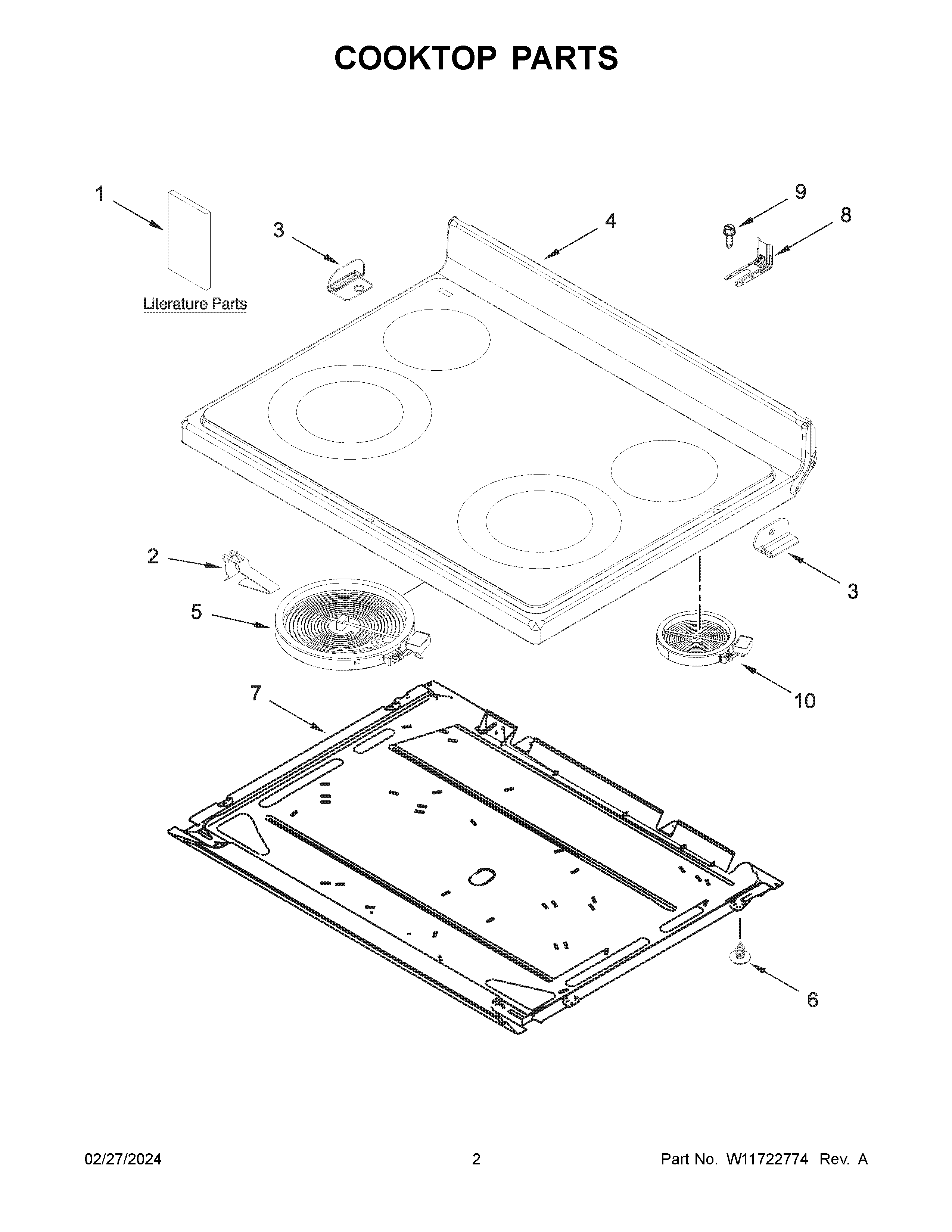

WFES3530RS0 02 – COOKTOP PARTS

WFES3530RS0 02 – COOKTOP PARTS

Written by

in

WFES3530RS0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAIN, HARNESS
NIW11134845 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
1BTECH, SHEET
1AOWNERS MANUAL
1QUICK START GUIDE
2W11663556 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11719704 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
10ELMNT-SURF
