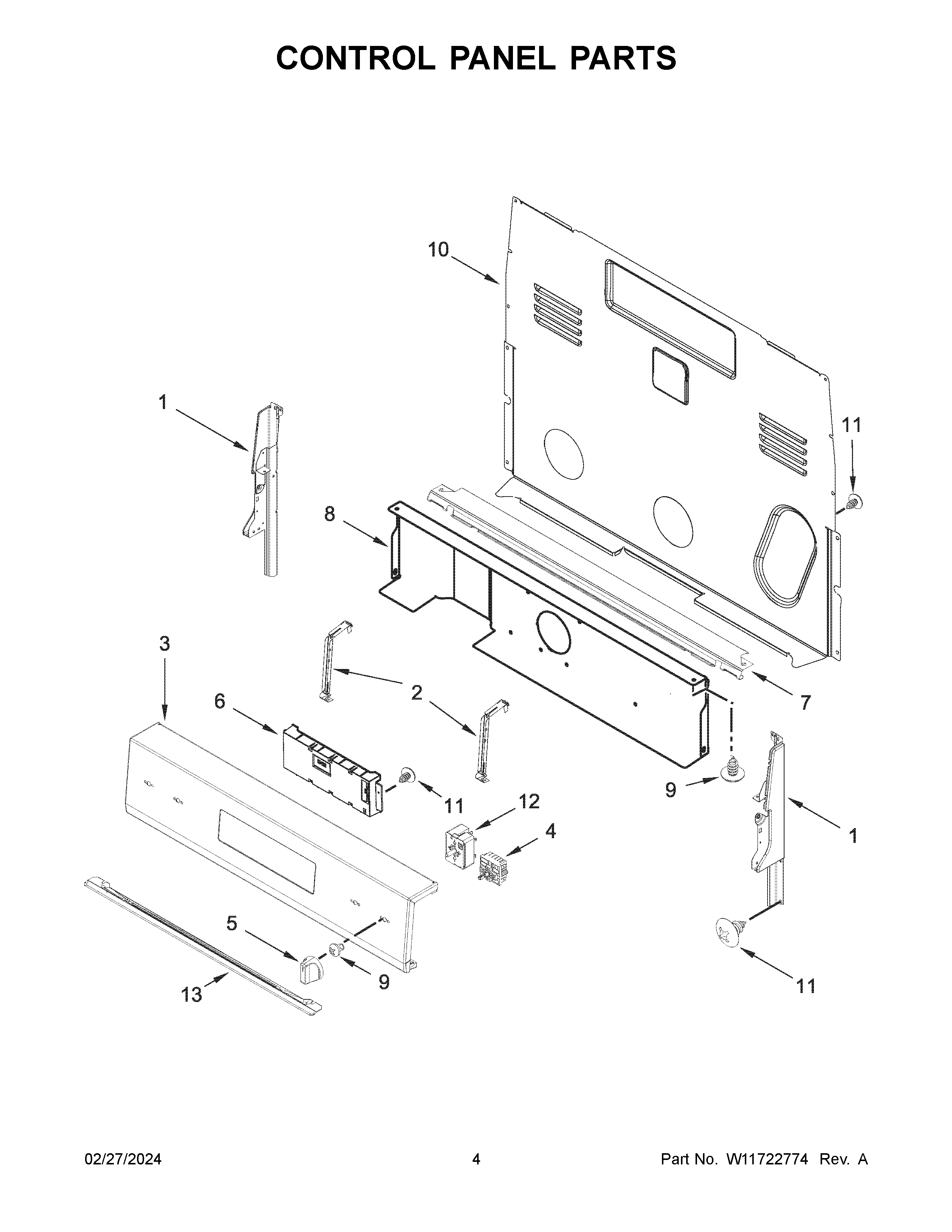

WFES3530RS0 03 – CONTROL PANEL PARTS

WFES3530RS0 03 – CONTROL PANEL PARTS

Written by

in

WFES3530RS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11213290 Whirlpool Console
1AW11213292 Whirlpool Endcap Panel
2BRACKET, CONTROL
3W11707152 Whirlpool Control Panel
4SWITCH-INF
5KNOB
6W11707168-includeCORE Whirlpool Electronic Control+Core
7W10525121 Whirlpool Control Bracket
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11SCREW
12W10911303 Whirlpool Infinite Switch
13W11443964 Whirlpool Support Bracket
