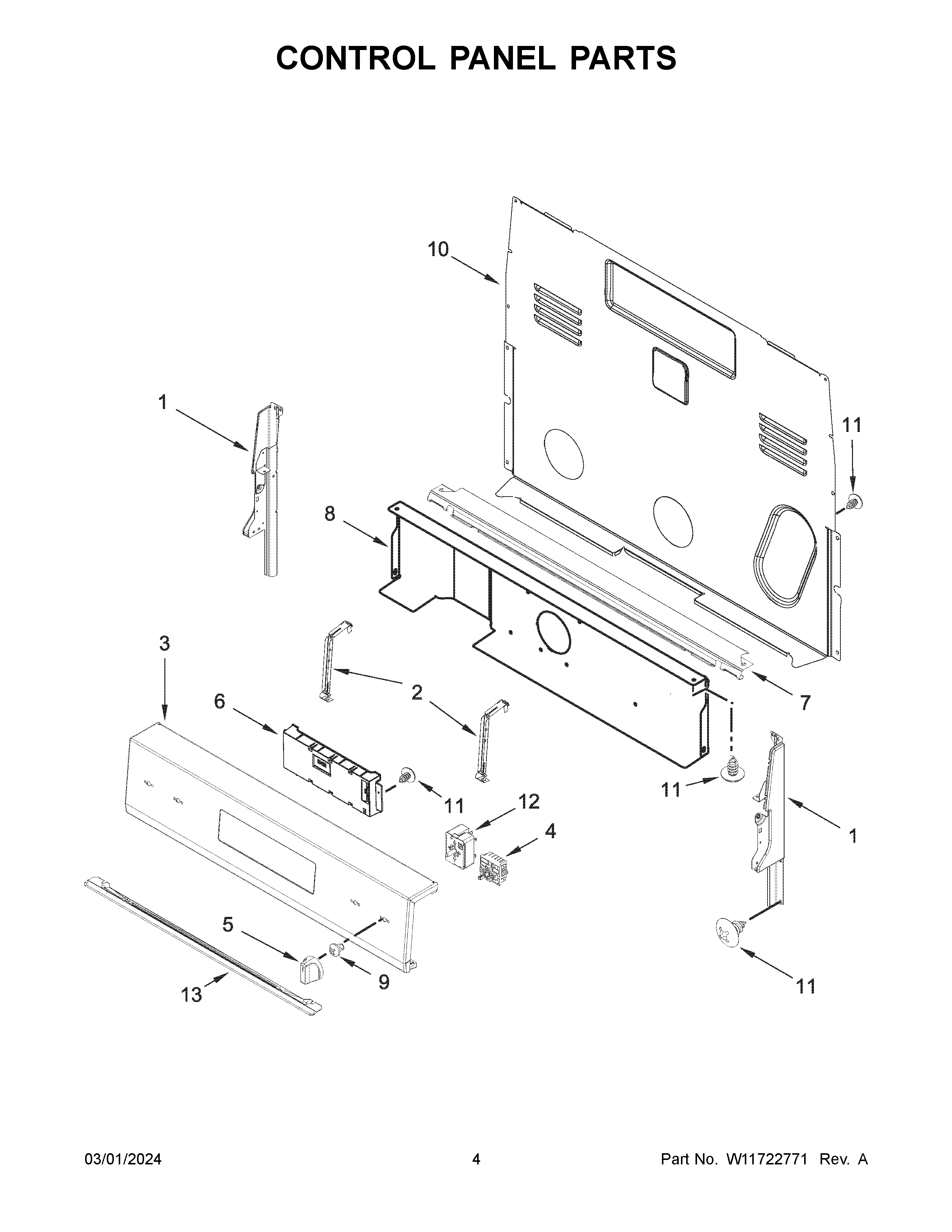

WFES3530RW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	ENDCAP (WHITE (LEFT))
1A	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
1C	W11259700 Whirlpool Panel End Cap
2	BRACKET, CONTROL
3A	W11707068 Whirlpool Control Panel
3	CONSOLE, ASSEMBLY (BLACK)
4	SWITCH-INF
5A	KNOB
5	KNOB
6	W11707168-includeCORE Whirlpool Electronic Control+Core
7	W10525121 Whirlpool Control Bracket
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	SCREW
12	W10911303 Whirlpool Infinite Switch
13	W11443964 Whirlpool Support Bracket
13A	BRACKET, EYE BROW (WHITE)
