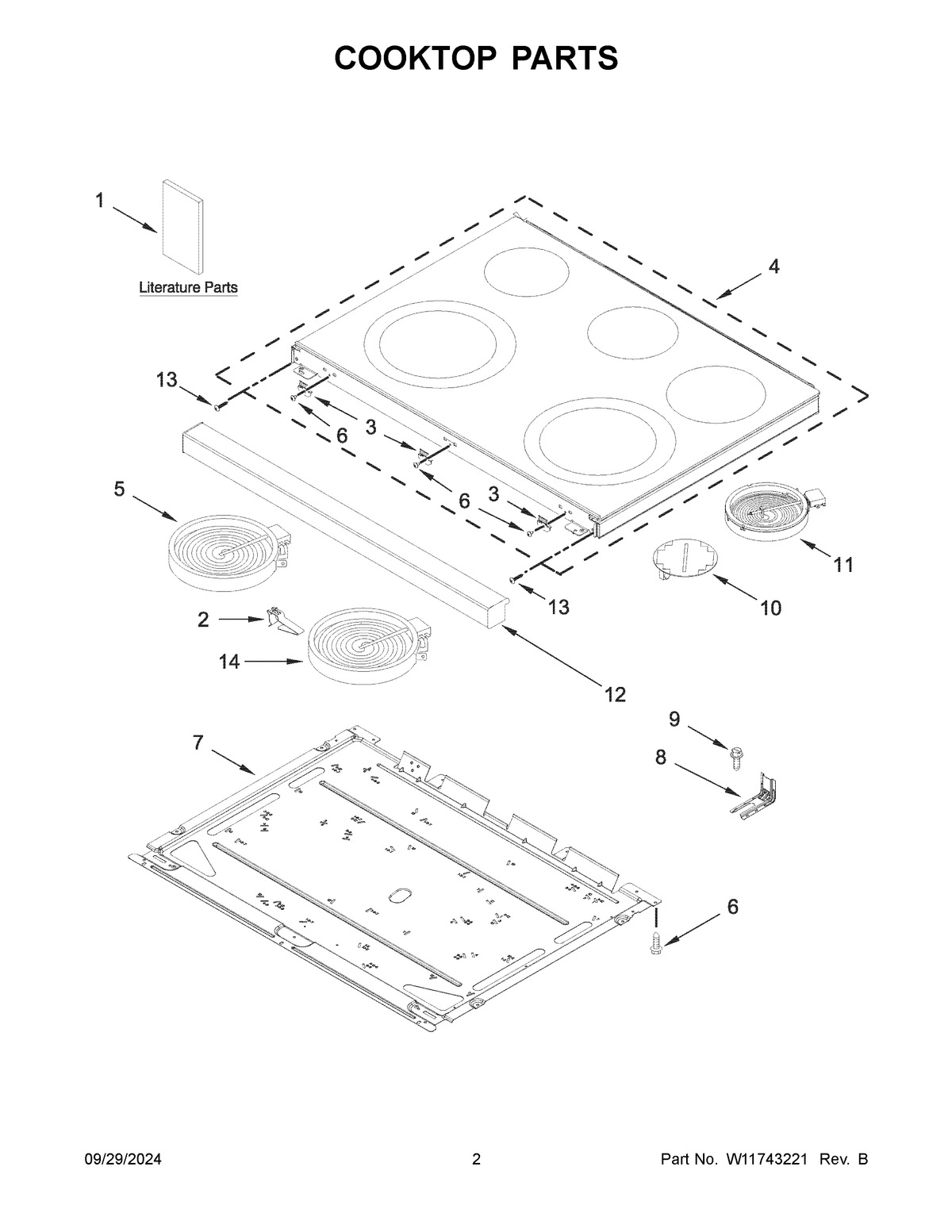

WFES5030RS0 02 – COOKTOP PARTS

Products

Position	Product
NI	3196896 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11172528 Whirlpool Harness Wire
NI	3400964 Whirlpool Oven Clip
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP
1A	QUICK START GUIDE
1	OWNER'S MANUAL
1B	TECH SHEET
2	W11663556 Whirlpool Spring Assembly
3	BRACKET, COOKTOP
4	COOKTOP
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	ELEMENT, WARM ZONE (CENTER)
11	ELMNT-SURF
12	BULLNOSE (STAINLESS)
13	Screw
14	W10823727 Whirlpool Stove Right Front Surface Element
