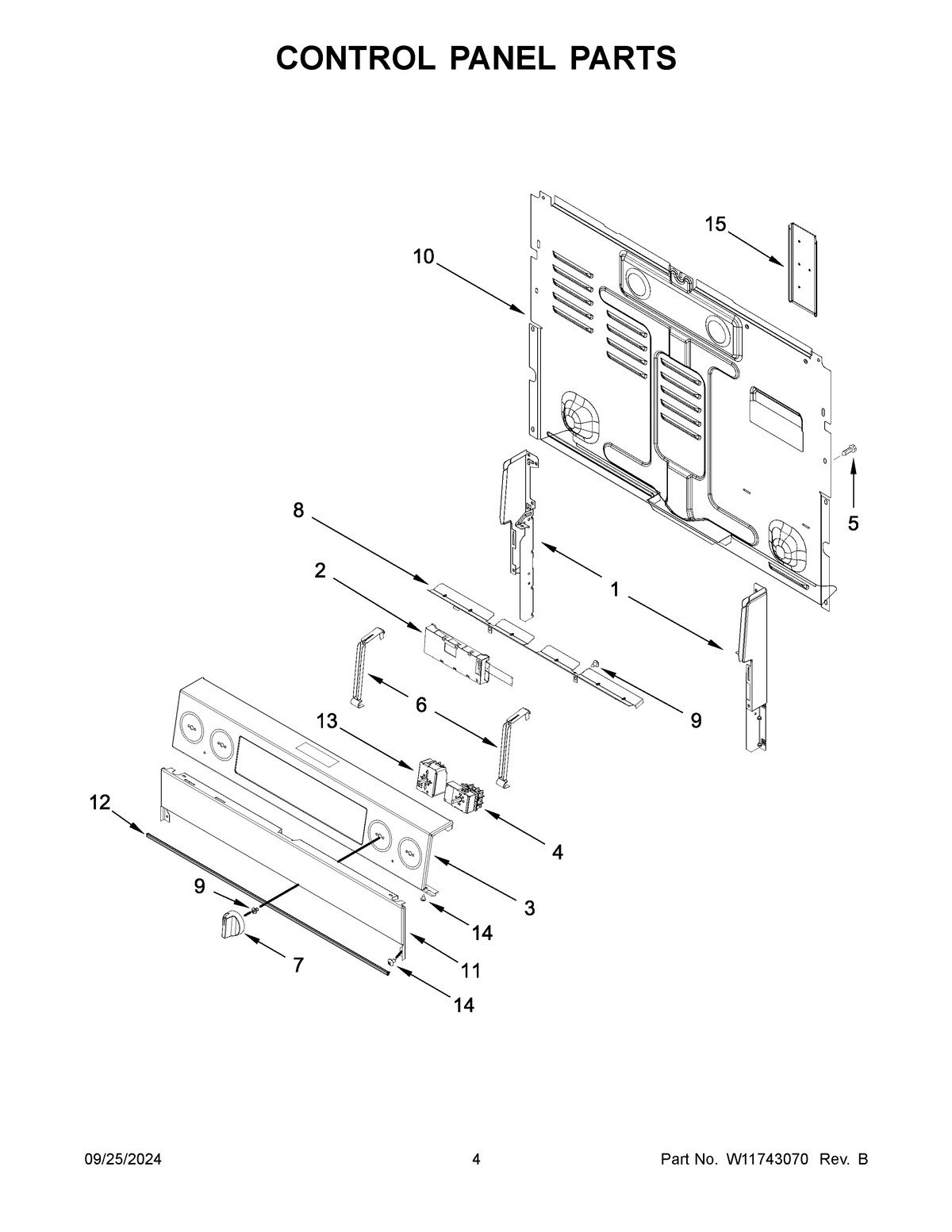

WFES5030RW0 03 – CONTROL PANEL PARTS

WFES5030RW0 03 – CONTROL PANEL PARTS

Written by

in

WFES5030RW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP-PNL
1C	ENDCAP (WHITE(RIGHT))
1B	ENDCAP (WHITE (LEFT))
1A	ENDCAP-PNL
3A	PANEL, CONSOLE (WHITE)
3	PANEL, CONSOLE (BLACK)
4	SWITCH-INF
5	SCREW
6	BRACKET, CONTROL
7A	KNOB (WHITE)
7	KNOB (BLACK)
8	SHIELD, HEAT
9	WP3400882 Whirlpool Screw
10	COVER-REAR
11	PANEL, LOWER (BLACK)
11A	PANEL, LOWER (WHITE)
12	GASKET, LOWER PANEL
13	W10911303 Whirlpool Infinite Switch
14	WP3196557 Whirlpool Screw
15	COVER, REAR FLUE
