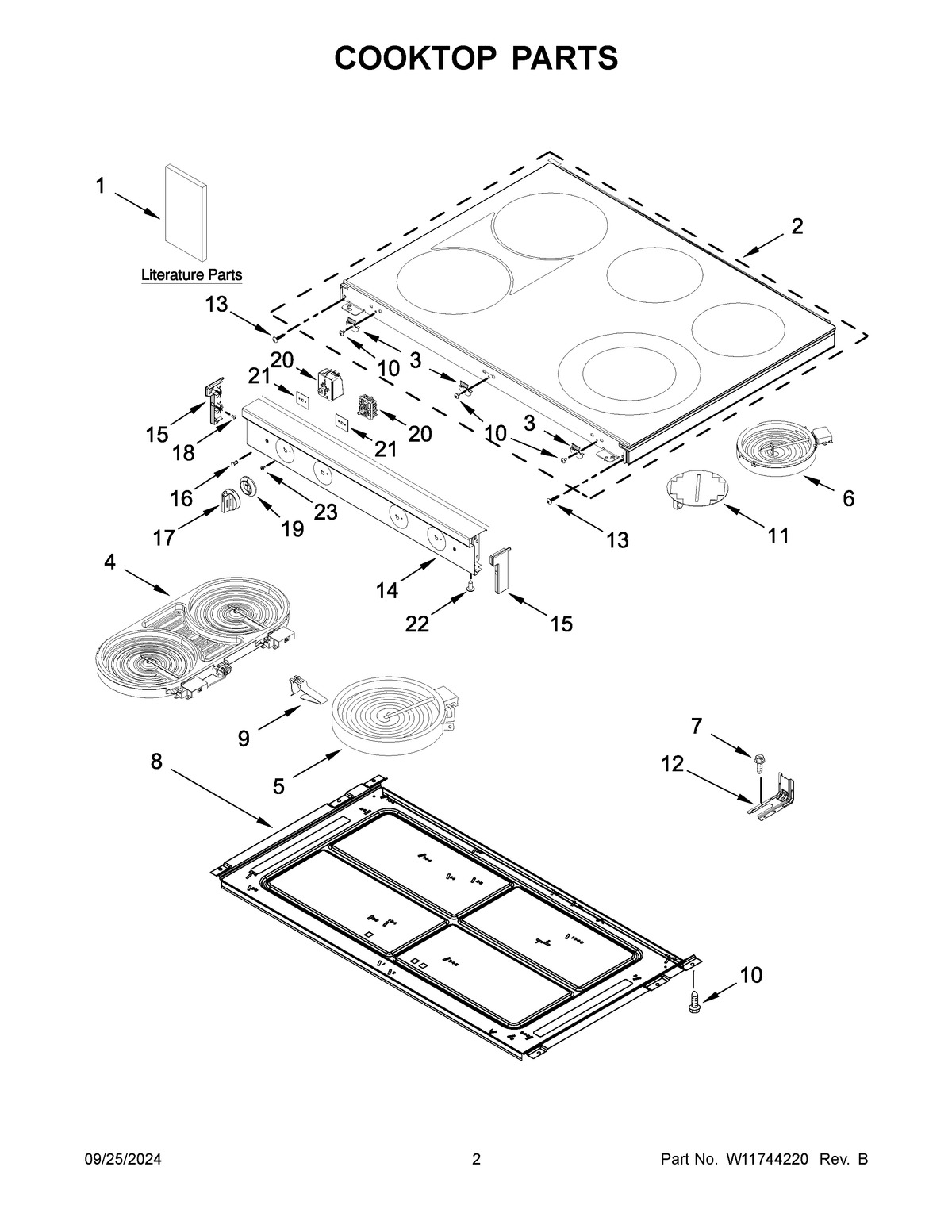

WFES7530RB0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NIFOLLOWING PARTS NOT ILLUSTRATED
NIHARNESS, HIDDEN BAKE
NIHARNESS, WIRE
NIHARNESS, COOKTOP
NIHARNESS, FRONT DUAL
1BTECH, SHEET
1OWNERS MANUAL
1AQUICK START GUIDE
2COOKTOP
3BRACKET, COOKTOP
4BRIDGE, (1800W, 800W) (LEFT FRONT AND LEFT REAR)
5ELEMENT (3000W) (RIGHT FRONT)
6ELEMENT (SINGLE, 1200W) (RIGHT REAR)
7SCREW, ANTI-TIP KIT
8PAN, RADIANT ELEMENT
9W11663556 Whirlpool Spring Assembly
10WP3196557 Whirlpool Screw
11ELEMENT, WARM ZONE (CENTER)
12W11447673 Whirlpool Range Tip Anchor
13Screw
14PANEL UPPER, MANIFOLD (BLACK)
14APANEL UPPER, MANIFOLD (WHITE)
15CPANEL, MANIFOLD END CAP (WHITE (RIGHT))
15APANEL, MANIFOLD END CAP (BLACK (RIGHT))
15BPANEL, MANIFOLD END CAP (WHITE (LEFT))
15PANEL, MANIFOLD END CAP (BLACK (LEFT))
16WP3196068 Whirlpool Light Lens
17CKNOB (DUAL, (WHITE))
17BKNOB (SINGLE, (WHITE))
17AKNOB (DUAL, (BLACK))
17KNOB (SINGLE, (BLACK))
18W11245710 Whirlpool Refrigerator Screw
19BEZEL (BLACK)
19ABEZEL (WHITE)
20SWITCH-INF
21GASKET, SWITCH
22SCREW
237101P676-60 Whirlpool Screw
