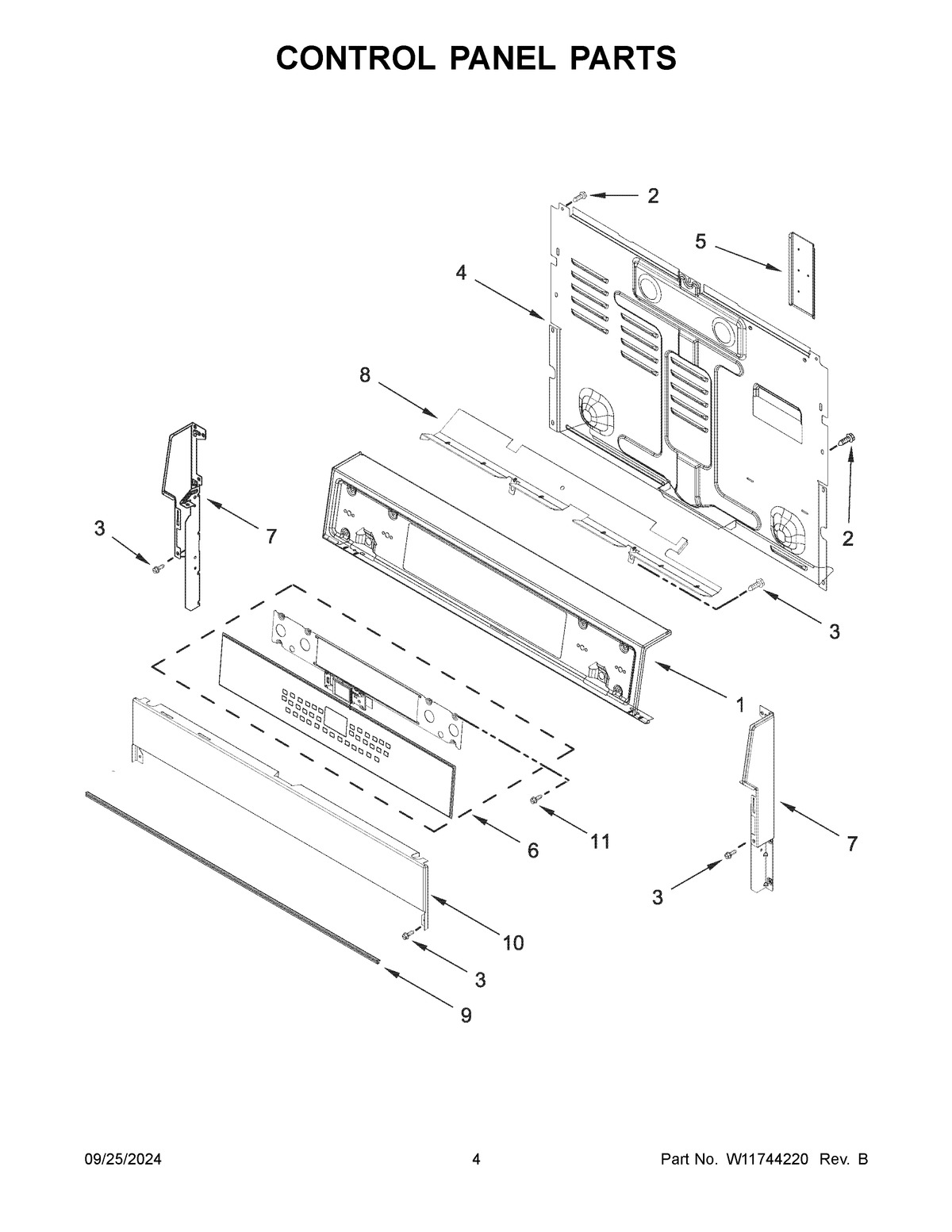

WFES7530RB0 03 – CONTROL PANEL PARTSadmin2025-04-26T11:26:30+00:00WFES7530RB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1A | CONSOLE (WHITE) |
| 1 | CONSOLE (BLACK) |
| 2 | SCREW |
| 3 | WP3196557 Whirlpool Screw |
| 4B | W10911303 Whirlpool Infinite Switch |
| 4A | W11661906 Whirlpool Range Infinite Switch |
| 4 | COVER, UPPER REAR (LEFT FRONT AND RIGHT FRONT) |
| 5 | COVER, REAR FLUE |
| 6 | W11729976-includeCORE Whirlpool Electronic Control+Core |
| 7B | ENDPOST, CONSOLE (WHITE (LEFT)) |
| 7 | ENDPOST, CONSOLE (BLACK (LEFT)) |
| 7A | ENDPOST, CONSOLE (BLACK (RIGHT)) |
| 7C | ENDPOST, CONSOLE (WHITE (RIGHT)) |
| 8 | SHIELD, HEAT |
| 9 | GASKET, LOWER PANEL |
| 10 | PANEL, LOWER (BLACK) |
| 10A | PANEL, LOWER (WHITE) |
| 11 | W10491985 Whirlpool Screw |
