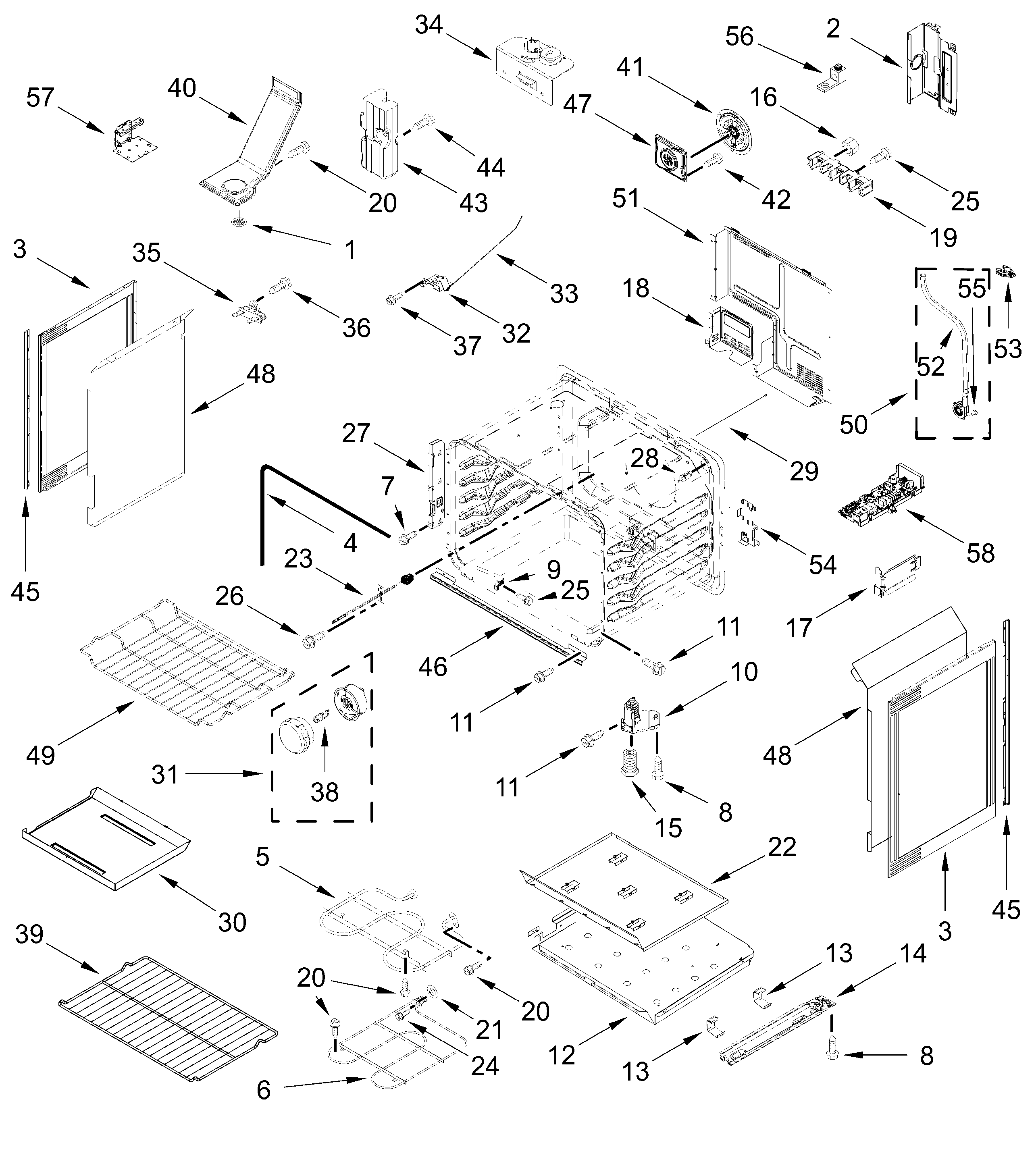

WFES7530RV0 CHASSIS PARTS

WFES7530RV0 CHASSIS PARTS

Written by

in

WFES7530RV0 CHASSIS PARTS

Products

Position	Product
	3400964 Whirlpool Oven Clip
	W11379943 Whirlpool Retainer
	INSULATION, FLUE
	W10646923 Whirlpool Insulator
	INSULATION, BACK
	FOLLOWING PARTS NOT ILLUSTRATED
	INSULATION, STRAP
	BARRIER RAIL, RUBBER (FRONT RIGHT)
	W11161831 Whirlpool Insulation
1	SCREEN, VENT
2	BRACKET, SERVICE
3	W11730303 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	W10856603 Whirlpool Broil Element
6	WP9755770 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	SCREW
9	W10807823 Whirlpool Drawer Glide
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	TRAY, INSULATION
13	W10137382 Whirlpool Clip
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	WP3400029 Whirlpool Dishwasher Nut
17	W10404688 Whirlpool Bracket Support
18	CORNER, COVER
19	BLOCK, TERMINAL (WITHOUT GROUND STRAP)
21	WP3400968 Whirlpool Nut
22	SHIELD, HEAT
23	SENSOR
24	WP3196174 Whirlpool Screw
25	Screw
26	WP3196557 Whirlpool Screw
27	W10647259 Whirlpool Hinge Receiver
28	SWTCH-LITE
29	9757239 Whirlpool Oven Door Rod
30	W10183712 Whirlpool Bake Tray
31	W11707255 Whirlpool Light
32	WP9761013 Whirlpool Door Latch
33	W10078370 Whirlpool Latch Rod
34	WPW10107820 Whirlpool Door Latch
35	WP3196548 Whirlpool Thermal Fuse
36	3196172 Whirlpool Oven Screw
37	W11169708 Whirlpool Screw
38	BULB-LIGHT
39	RACK-OVEN
40	TUBE, VENT
41	FAN, CONVECTION
42	W10516115 Whirlpool Screw
43	W11135752 Whirlpool Anchor Tip
44	W11135756 Whirlpool Screw Torx
45	W11510561 Whirlpool Mounting Rail
46	W11464547 Whirlpool Support Bracket
47	COVER, CONV FAN
48	W11379353 Whirlpool Retainer
50	VENTILATION ASSEMBLY, CONSOLE
51	SIDE, FAN COVER
52	BLOWER, TUBE
53	TUBE, CLAMP
54	BRACKET, ACU
55	WP3368921 Whirlpool Screw
56	WPW10281322 Whirlpool Connector
57	BRACKET, COOKTOP CONSOLE
58	CNTRL-ELEC + CORE
