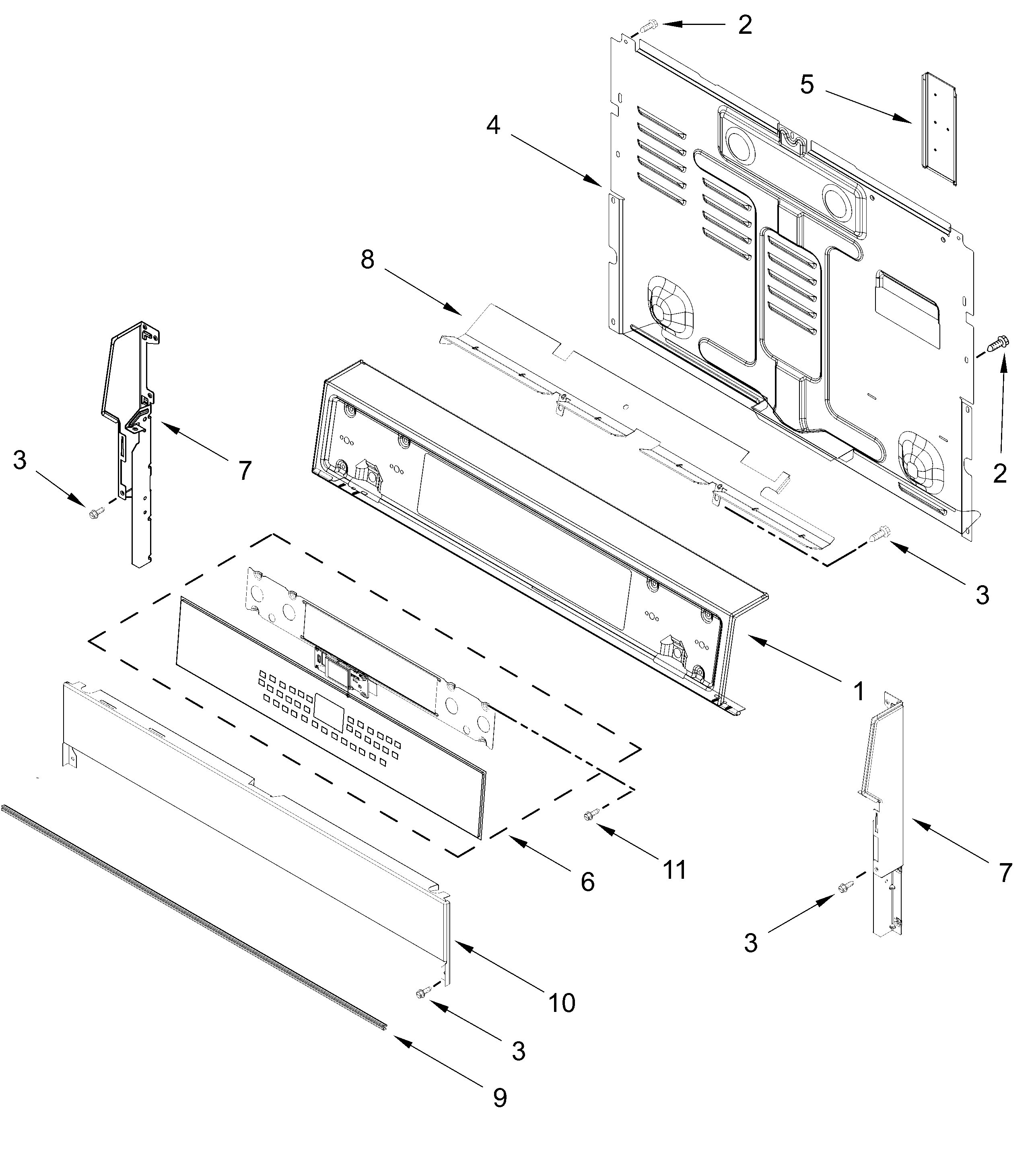

WFES7530RV0 CONTROL PANEL PARTS

Products

Position	Product
	PANEL, LOWER (STAINLESS)
	ENDPOST, CONSOLE (BLACK (RIGHT))
	PANL-CNTRL
1	CONSOLE (BLACK STAINLESS)
2	SCREW
3	WP3196557 Whirlpool Screw
4	COVER, UPPER REAR (LEFT FRONT AND RIGHT FRONT)
5	COVER, REAR FLUE
6	W11729976-includeCORE Whirlpool Electronic Control+Core
7	ENDPOST, CONSOLE (BLACK (LEFT))
8	SHIELD, HEAT
9	GASKET, LOWER PANEL
10	PANEL, LOWER (BLACK STAINLESS)
11	W10491985 Whirlpool Screw
